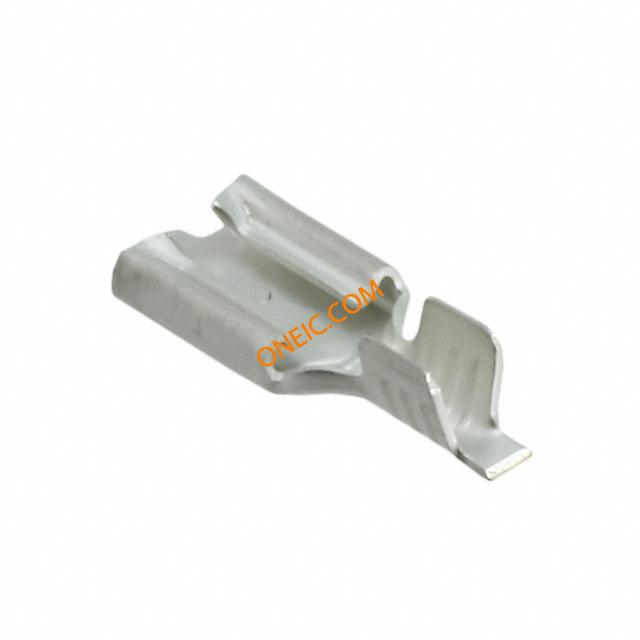

61969-1
| 制造商 | |
| 描述 | Quick Disconnect Terminal 16-20AWG F 12.07mm Tin Strip Terminals .187 REC 22-16 TPBR FASTON Uninsulated Receptacles & Housings CONN RECEPT FASTON 16-20AWG .187 Quick Disconnect Terminal 16-20AWG F 12.07mm Tin Strip Product Highlights:ReceptacleTab Fit = 4.75 x 0.81 mmBoard Mount = NoReceptacle Style = StraightNon-Insulation SupportSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, relay connectors, fast-on, AMPIP, Blade Receptacle, Blade Tab, Packard Style Tab, E-SPRING FASTON .187 RECEPTACLE 20-16 AWG TPBR |
| 分类 |
商业参数
| 产品 | Faston Terminals | 其他名称 | A100885CT |
| 产品类别 | Terminals | 标准包装数量 | 24,000 |
| 工厂包装数量 | 24000 | ||
合规参数
| RoHS | RoHS Compliant | UL等级 | 已获认证 |
| UL列名 | Listed | 无铅定义 | Not relevant for lead free process |
| 认可国家 | 是 | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 认证机构标志 | Yes | ||
电气参数
| 核心类型 | Open | 最大频率 | Single |
| 开关功能 | 快速连接 | 连接器类型 - 电压输入 | Without |
机械参数
| 表面处理 | Tin | 材料（通用） | Brass |
| 包装方式 | Reel | 插片宽度 | 4.75 x 0.81 [.187 x .032] |
| 厚度 | 0.30 [0.012] | 电缆类型 | Regular Wire |
| 绝缘类型 | Not Insulated | 插片长度 | 0.250" (6.35mm) |
| 导线线规 | 20-16 | 端接方式 | Crimp |
| 安装类型 | Free Hanging (In-Line) | 螺柱/焊片尺寸 | 0.187 in x 0.032 in |
| 插片厚度 | 0.032" (0.81mm) | 端子类型 | Standard |
| 电缆材料 | Stranded | 连接器类型 | Yes |
| 接触镀层 | Tin | 连接器样式 | Straight |
| 连接器用途 | Wire & Cable | 箔压接区域 | F-Crimp |
| 插入件材料 | 黄铜 | 插入力 | Normal |
| 触头材料 | Brass | 总长度 | Moldable |
| 包装数量 | Strip | 导线端接方式 | No |
| 绝缘高度 | Non-Insulation Support | 端接样式 | 母端 |
| 绝缘材料 - 类型 | No | 总厚度 | .3 mm [ .012 in ] |
| 法兰上方插针尺寸 | 4.75 mm [ .187 in ] | 法兰下方引脚尺寸 | .81 mm [ .032 in ] |
| 接触镀层厚度 | 40 | 线规或范围 - mm² | 0.50-1.40² [20-16] |
| 第二连接器安装特性 | No | ||
产品信息
| 备注 | Economy Receptacle. | 连接器性别 | Female |
| 系列 | 187 | 制造商全称 | AMP |
| 产品子类型 | Receptacle | ||
