点击放大查看

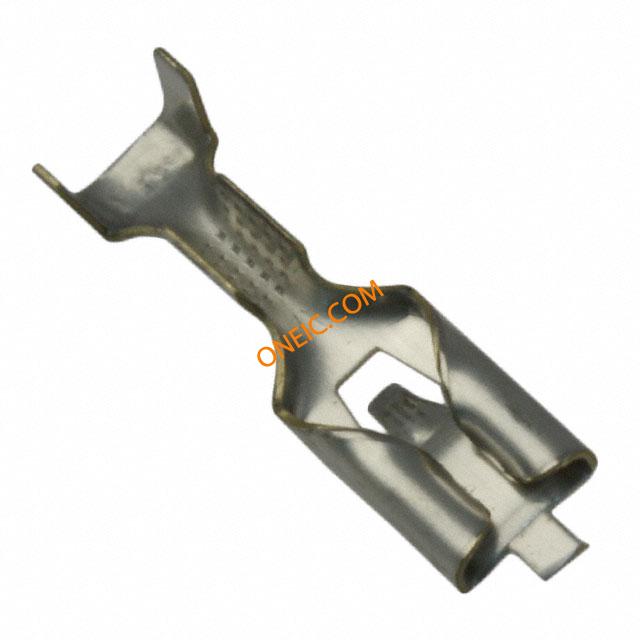

60435-1
| 制造商 | |
| 描述 | Quick Disconnect Terminal 16-20AWG F 19.05mm 5.59mm Pre-Tin Strip Terminal Block Tools & Accessories .187 FF REC 20-16 0126PTPBR Multiple Circuit Housings with Tabs & Receptacles Including FASTIN-FASTON CONN RECEPT FASTON 16-20 AWG 60435-1 Quick Disconnect Terminal 16-20AWG F 19.05mm 5.59mm Pre-Tin Strip Product Highlights:ReceptacleTab Fit = 4.75 x 0.41 mmWire Range = 0.50-1.40² [20-16] mm [AWG]Insulation Diameter = 2.29-3.30 [.090-.130] mm [in]Receptacle Style = StraightSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, terminals and splices, Lighting Interconnection Products, wire to wire, fast-on FF 187 REC 20-16AWG PTBR |
| 分类 |
商业参数
| 产品 | Tools & Accessories | 标准包装数量 | 25,000 |
合规参数
| RoHS | RoHS Compliant | UL等级 | 获得认可 |
| UL列名 | Recognized | 无铅定义 | Not relevant for lead free process |
| 认可国家 | 是 | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 认证机构标志 | Yes | ||
电气参数
| 最大频率 | Single | ||
机械参数
| 表面处理 | Pre-Tin | 材料（通用） | Brass |
| 包装方式 | Reel | 插片宽度 | 4.75 x 0.41 [.187 x .016] |
| 厚度 | 0.30 [0.012] | 电缆类型 | Regular Wire |
| 绝缘类型 | Non-Insulated | 导线线规 | 16-20 AWG |
| 端接方式 | Crimp | 安装类型 | Free Hanging (In-Line) |
| 插片厚度 | 0.020" (0.51mm) | 端子类型 | Standard |
| 电缆材料 | Yes | 连接器类型 | Yes |
| 接触镀层 | Tin | 封装形式 | Modular |
| 连接器样式 | Straight | 连接器用途 | Wire & Cable |
| 箔压接区域 | F-Crimp | 插入件材料 | 黄铜 |
| 插入力 | Normal | 触头材料 | Brass |
| 总长度 | FASTIN-FASTON .187 | 包装数量 | Strip |
| 绝缘高度 | With | 端接样式 | 母端 |
| 适用端子尺寸 | 2.29 – 3.3 mm [ .09 – .13 in ] | 绝缘直径 | 2.29-3.30 [.090-.130] |
| 总厚度 | .3 mm [ .012 in ] | 法兰上方插针尺寸 | 4.75 mm [ .187 in ] |
| 法兰下方引脚尺寸 | .51 mm [ .02 in ] | 堆叠高度（配合） | .045 |
| 线规或范围 - mm² | 0.50-1.40² [20-16] | ||
产品信息
| 连接器性别 | Female | 产品子类型 | Receptacle |
