点击放大查看

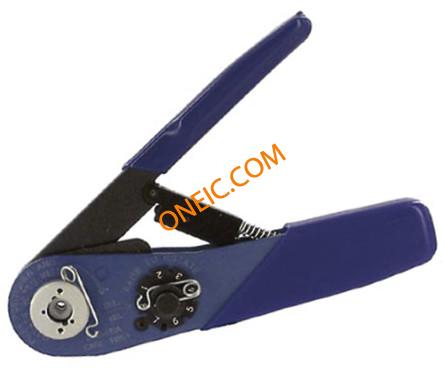

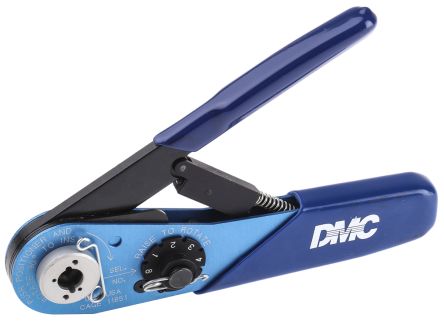

601966-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Crimping Tool HDM-20 Connector Crimpers CRIMP TOOL CRIMP TOOL HDM-20 CONN Crimper,Circular,24-20AWG,4/8Indent 4/8 INDENT HAND CRMP TOOL, SCREW MACHINE CONTACTS Crimper;Circular;24-20AWG;4/8Indent;RequiresPositionerorTurretHead 4/8 Indent Hand Crimping Tool TE Connectivity AFM8 系列 4/8 Indent 压接工具框架 , 适用于24 → 20 AWG 线规格 CRIMPING TOOL M22520/2-01 |
| 分类 |
商业参数
| 产品 | Crimpers | 交货时间 | 24 Days |
| 子类别 | Assembly Tools | 零件号别名 | M22520 M22520/2-01 |
| 产品类别 | Crimpers | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Not Applicable | 海关税号 | 82032000 |
机械参数
| 重量 | 0.331 | 包装方式 | Bulk |
| 连接器类型 | 4/8 Indent | 总长度 | 7.5in |
| 筒体内径 | :24AWG to 20AWG | 线规或范围 - AWG | 20 AWG |
| 线规或范围 - mm² | 24AWG | ||
产品信息
| 类型 | Crimp Tool | 产品特性 | Side Entry, Ratchet |
| 工具类型 | Hand Crimper - without Die Set | 行业别名 | M22520/2-01 |
| 适用产品/相关产品 | Varies by Die Set | ||
文档与媒体
