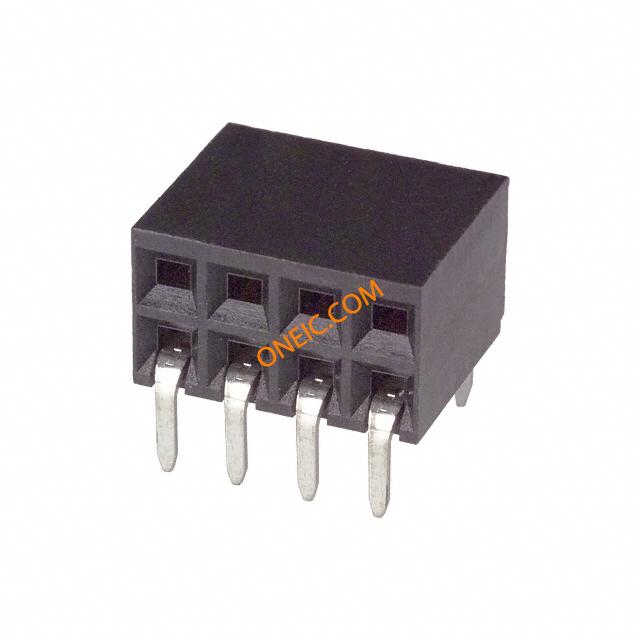

6-5535512-3

制造商	TE Connectivity Ltd.
描述	Conn Socket Strip SKT 8 POS 2.54mm Solder RA Thru-Hole Gang of Tubes .100 inch AMPMODU Receptacles CONN RECEPT 8POS .100 RT/A DUAL Headers & Wire Housings RECEPT 8POS .100 R/A DUAL Conn Socket Strip SKT 8 POS 2.54mm Solder RA Thru-Hole Gang of Tubes Product Highlights:ConnectorHousing Gender = Connector - ReceptacleContact Gender = ReceptacleMod II8 PositionsSearch Keywords:AMPMODU, board to board, NIC, Network Interface Cards, PC Cards, MIL-C-55032, MIL-C-24519, pcb connectors, wire to board, signal, 08 MODII HORZ DR CE EESS .100
分类	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

商标名	AMPMODU	产品类别	Headers & Wire Housings
标准包装数量	Rail / Tube	工厂包装数量	56

合规参数

RoHS	Lead free / RoHS Compliant	标准	CSA LR7189, UL E28476
MIL-C-55032	No	材料阻燃等级	UL 94V-0

电气参数

接触电阻	12 mohm	输入电阻	5000
额定交流电压	333	连接器阻抗	Closed Entry, Side
最大额定电流	2 A	初始电阻（最小）	12

机械参数

颜色	Black	深度	8.13 mm
间距	2.54 mm	高度	6.05 mm
包装方式	Tube	壳体颜色	黑色
轴径尺寸	不带	排间距	0.100" (2.54mm)
端接方式	Solder	触点形式	Female Socket
触头类型	Female Socket	引脚间距	0.100" (2.54mm)
外壳颜色	Black	安装类型	Through Hole, Right Angle
连接器类型	Receptacle	接触镀层	Gold Over Nickel
安装样式	Through Hole	排数	2
插入件材料	磷青铜	操作力	High, Standard
触头材料	Phosphor Bronze	壳体材料	Polycyclohexylenedimethylene Terephthalate (PCT)
总长度	10.16 mm	包装数量	56
面板安装类型	通孔 - 焊接	连接器间距	.31
端接样式	Through Hole	触点数	8
位数	8	兼容外壳尺寸（如TM-700等）	公端
触头长度-柱	2.92 mm [ .115 in ]	典型触点布局	Short Point
表面贴装焊盘尺寸	Without	端子柱长度	2.92 mm [ .115 in ]
接触镀层厚度	30µin (0.76µm)	每排/每行位置数	All

产品信息

备注	TE 建议使用接合金或带双层电镀母端配件的双层电镀公端。, 停止使用最小为 6.50 [.256] 的正极插针，以防止行与行之间发生短路。	类型	Socket Strip
连接器性别	SKT	系列	AMPMODU MOD II
可密封	否	可堆叠	Yes
产品子类型	Receptacles / Sockets - PCB	输出配置	Through Hole, Right Angle
装配配置	Board Standoff	加载位置数	All

环境参数

温度范围	是	工作温度	- 55 C to + 125 C
封装热阻	1.4 – 2.4 mm [ .055 – .094 in ]

文档与媒体

在线文档

6-5535512-3?RQPN=6-5535512-3

相关型号
