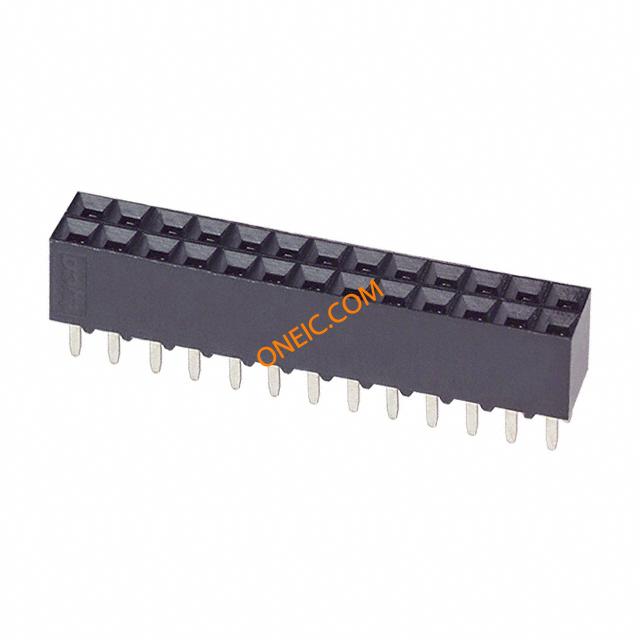

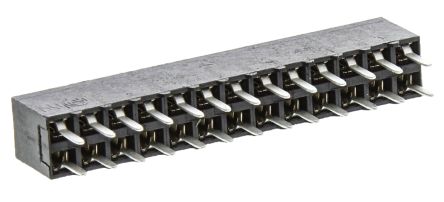

6-534998-3

制造商	TE Connectivity Ltd.
描述	Conn Socket Strip RCP 26 POS 2.54mm Solder ST Thru-Hole Gang of Tubes .100 inch AMPMODU Receptacles CONN RECEPT 26POS .100 VERT DUAL Headers & Wire Housings REC 2X13P VRT T/H Conn Socket Strip RCP 26 POS 2.54mm Solder ST Thru-Hole Gang of Tubes Search Keywords:AMPMODU, board to board, NIC, Network Interface Cards, PC Cards, MIL-C-55032, MIL-C-24519, pcb connectors, wire to board, signal, BOARD-BOARD CONNECTOR RECEPTACLE, 26WAY, 2ROW ReceptacleAssembly;GlassFilledPolyester;PhosphorBronze;Vertical;26;2A TE Connectivity AMPMODU Mod IV 系列 2行 26路直 2.54mm节距通孔印刷电路板插座, 板对板 26 MODIV VRT DR CE 100/125
分类	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

商标名	AMPMODU	产品类别	Headers & Wire Housings
标准包装数量	Rail / Tube	工厂包装数量	17

合规参数

RoHS	Lead free / RoHS Compliant	海关税号	85369010
认证机构	CSA,UL	材料阻燃等级	UL94V-0

电气参数

接触电阻

12 mohm

最大额定电流

2 A

机械参数

颜色	Black	深度	5.03 mm
间距	2.54 mm	高度	6.73 mm
重量	0	包装方式	Tube
出线方向	LowProfile	排间距	0.100" (2.54mm)
端接方式	Solder	触头类型	Female Socket
引脚长度（针脚）	0.125"	外壳颜色	Black
尾部长度	:3.18mm	安装类型	Through Hole
行程角度	Straight	连接器类型	Receptacle, Bottom or Top Entry
接触镀层	Gold Over Nickel	安装样式	Through Hole
排数	2	触头材料	Phosphor Bronze
壳体材料	Polycyclohexylenedimethylene Terephthalate (PCT)	总长度	33.02 mm
主要材料	InterconnectSystem	插针孔直径	0.1"
端接样式	Through Hole	触点数	26
接触件端接	:Through Hole Vertical	位数	26
接触镀层厚度	30µin (0.76µm)

产品信息

类型	Socket Strip	连接器性别	RCP
系列	AMPMODU MOD IV	已删除	Compliant
制造商全称	AMPMODU/MODIVSeries	产品子类型	Receptacles / Sockets - PCB
加载位置数	All

环境参数

工作温度

- 65 C to + 105 C

文档与媒体

在线文档

6-534998-3

在线文档

6-534998-3?RQPN=6-534998-3

相关型号

1-103168-1

te connectivity / amp

Conn Shrouded Header HDR 26 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER VERT .100 26POS 30AU Conn Shrouded Header HDR 26 POS 2.54mm Solder ST Thru-Hole Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = DualNumber of Positions = 26Mating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 26 MODII HDR DRST SHRD .100CL

¥16.7760

详情

1-104351-3

te connectivity / amp

Conn Unshrouded Header HDR 26 POS 2.54mm Solder ST Thru-Hole Tube .100 inch AMPMODU Headers CONN HDR BRKWAY 26POS DUAL 15AU Headers & Wire Housings 26 MODII HDR DRST B/A W/HD .100 inch AMPMODU Headers Product Highlights:HeaderHeader Type = StandardNumber of Rows = DualNumber of Positions = 26Mating Post Length = 5.84 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 26 MODII HDR DRST B/A W/HD

¥4.8240

详情

暂无图片

1-104350-3

te connectivity / amp

Conn Unshrouded Header HDR 26 POS 2.54mm Solder ST Thru-Hole CONN HDR BRKWAY 26POS DUAL 30AU

详情

1-104355-3

te connectivity / amp

Conn Unshrouded Header HDR 26 POS 2.54mm Solder RA Thru-Hole Headers & Wire Housings OBSOLETE CONN HDR BRKWAY 26POS R/A DUAL

详情

1-146255-3

te connectivity / amp

Conn Unshrouded Header HDR 26 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HDR BRKWAY 26POS .100 DUAL

详情

暂无图片

146220-5

te connectivity / amp

25/26 MODII HDR DRST B/A 100CL CONN HDR BRKWAY 25/26POS DUAL

详情

1-146130-2

te connectivity / amp

Conn Unshrouded Header HDR 26 POS 2.54mm Solder ST SMD .100 inch AMPMODU Headers CONN HDR BRKWAY 26POS DUAL SMD Headers & Wire Housings 26 PIN SMD HEADER 720 Conn Unshrouded Header HDR 26 POS 2.54mm Solder ST SMD Product Highlights:HeaderHeader Type = BreakawayNumber of Rows = DualNumber of Positions = 26Mating Post Length = 5.84 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 26 MODII HDR DRST SFMNT B/A

¥12.3840

详情

1-87579-0

te connectivity / amp

Conn Shrouded Header HDR 26 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HEADER RTANG 26POS PCB TIN Headers & Wire Housings SHROUDED RA DUAL 26 detent windows Conn Shrouded Header HDR 26 POS 2.54mm Solder RA Thru-Hole Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = DualNumber of Positions = 26Mating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 26 MODII HDR DRRA SHRD .100CL

¥14.1840

详情

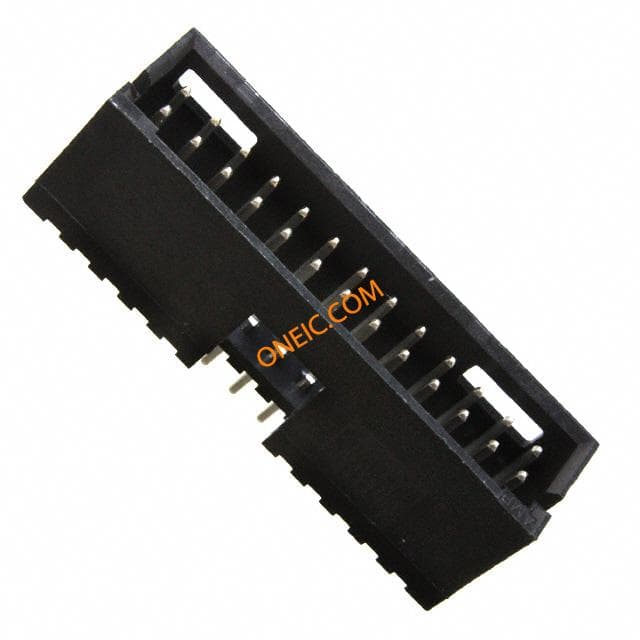

5-87589-9
