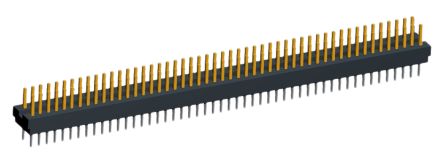

点击放大查看
6-103916-7
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Unshrouded Header HDR 100 POS 1.27mm Solder ST Thru-Hole Tube .050 X .100 AMPMODU System 50 CONN HEADER .050 100POS VERT T/H Headers & Wire Housings 100 sys 50 hdr drst unshrd sn Conn Unshrouded Header HDR 100 POS 1.27mm Solder ST Thru-Hole Tube Product Highlights:Housing Gender = Header - Pin100 PositionsNumber of Rows = DualNot ShroudedVertical Mount AngleSearch Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU TE Connectivity AMPMODU System 50 系列 1.27mm节距 100路 (2排) 垂直 PCB 针座, 焊接端接, 1A , 通孔 100 sys 50 hdr drst unshrd sn |
| 分类 |
商业参数
| 商标名 | AMPMODU | 标准包装数量 | Rail / Tube |
| 工厂包装数量 | 8 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 标准 | CSA LR7189, UL E28476 |
| 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 额定电压 | 30 VAC | 供电电压 | 30 |
| 额定交流电压 | 30 | 连接器阻抗 | 不带 |
| 击穿电压 | 500 | 最大额定电流 | 1A |
| 绝缘电阻 | 5,000 | 保护额定电压（VPR） | 500 V |
机械参数
| 颜色 | Black | 间距 | 1.27 mm |
| 底座类型 | 不带 | 包装方式 | Tube |
| 遮蔽类型 | No | 壳体颜色 | 黑色 |
| 引脚样式 | 圆形 | 方向 | 垂直 |
| 排间距 | 0.100" (2.54mm) | 稳定剂 | Without |
| 端接方式 | Solder | 第二连接器 | Without |
| 外壳颜色 | Black | 安装类型 | Vertical |
| 连接器类型 | Unshrouded | 接触镀层 | Gold Over Nickel |
| 安装样式 | Thru Hole | 排数 | 2 |
| 高度（英寸） | 0.225" (5.72mm) | 插入件材料 | 磷青铜 |
| 触头材料 | Phosphor Bronze | 壳体材料 | Thermoplastic |
| 包装数量 | Tube | 面板安装类型 | 通孔 |
| 端接排数 | 焊接 | 端接样式 | Through Hole |
| 外径 | .381 mm [ .015 in ] | 触点数 | 100 |
| 端接表面处理 | Matte Tin-Lead | 位数 | 100 |
| 安装孔直径 | 不带 | 接触长度 - 配合 | 0.125" (3.18mm) |
| 端子柱长度 | 2.54 [0.100] | 接触镀层厚度 | 30µin (0.76µm) |
| 堆叠高度（配合） | 0.275", 0.450" (6.98mm, 11.43mm) | 静电放电屏蔽 | 不带 |
| 端接镀层厚度 | 150 – 250 | ||
产品信息
| 类型 | Unshrouded Header | 连接器性别 | HDR |
| 系列 | AMPMODU System 50 | 覆盖范围 | 无覆盖 |
| 钥匙类型 | 否 | 制造商全称 | AMP |
| 产品子类型 | Header Assembly | 选择性装载 | No |
| 加载位置数 | All | ||
环境参数
| 密封等级 | 不带 | 温度范围 | -65 â +105 |
| 工作温度 | -65 – 105 | 封装热阻 | 1.397 mm [ .055 in ] |
