6-103645-5
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn IDC Connector RCP 16 POS 2.54mm IDT ST Cable Mount Individual .100 AMPMODU Headers, Housings & Contacts 16 MTE RCPT SR LATCH .100CL Headers & Wire Housings 16 MTE RCPT SR LATCH .100CL Conn IDC Connector RCP 16 POS 2.54mm IDT ST Cable Mount Individual Product Highlights:HousingPreloadedNumber of Positions = 16Housing Type = ReceptacleContact Type = ReceptacleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE |
| 分类 |
商业参数
| 商标名 | AMPMODU | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Rail / Tube | 工厂包装数量 | 13 |
合规参数
| RoHS | Lead free / RoHS Compliant | 标准 | CSA LR7189, UL E28476 |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 供电电压 | 250 VAC | 接触电阻 | 15 mohm |
| 输入电阻 | 5000 | 连接器阻抗 | 刺破式压接 (IDC), 压接 |
| 最大额定电流 | 3 A | 保护额定电压（VPR） | 600 VACrms |
机械参数
| 颜色 | Black | 深度 | 15.24 mm |
| 间距 | 0.100" (2.54mm) | 锁定类型 | Latch |
| 包装方式 | Tube | 导线类型 | Discrete or Ribbon Cable |
| 壳体颜色 | 黑色 | 导线线规 | 22-26 AWG |
| 排间距 | 2.54 mm | 端接方式 | IDT |
| 触头类型 | Female Socket | 第二连接器 | With |
| 外壳颜色 | Black | 安装类型 | Free Hanging (In-Line) |
| 连接器类型 | Receptacle | 接触镀层 | Tin-Lead |
| 紧固类型 | Latch Lock | 安装样式 | Wire |
| 排数 | 1 | 插入件材料 | 磷青铜 |
| 操作力 | Standard | 触头材料 | Phosphor Bronze |
| 壳体材料 | Thermoplastic | 总长度 | 40.58 mm |
| 包装数量 | 13 | 电缆端接方式 | IDC |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 触点数 | 16 | 绝缘直径 | .76 – 1.37 mm |
| 位数 | 16 | 安装孔直径 | 带有 |
| 典型触点布局 | 同轴 | 接触镀层厚度 | 100µin (2.54µm) |
产品信息
| 备注 | 带状电缆带缺口把手 22-28 AWG, 气动终结器的最大绝缘直径为 1.14 [0.045]。 | 类型 | IDC Connector |
| 连接器性别 | RCP | 系列 | AMPMODU MTE |
| 产品特性 | Closed End | 产品子类型 | Receptacles / Sockets - Housings |
环境参数
| 测试温度 | 标准部件 - 非辉光导线 | 工作温度 | - 65 C to + 105 C |
文档与媒体
相关型号
6-103634-5
te connectivity / amp
Conn Shrouded Header HDR 16 POS 2.54mm Solder RA Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER RTANG 16POS PCB TIN Headers & Wire Housings 16 MTE HDR SRRA LTCH .100CL LF Conn Shrouded Header HDR 16 POS 2.54mm Solder RA Thru-Hole Tube Product Highlights:HeaderNumber of Positions = 16Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Terminate To Printed Circuit BoardSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE TE Connectivity AMPMODU MTE 系列 2.54mm节距 16路 (1排) 直角 PCB 针座, 焊接端接, 3A , 通孔 16 MTE HDR SRRA LTCH.100CL LF
6-103639-5
te connectivity / amp
Conn Shrouded Header HDR 16 POS 2.54mm Solder ST Thru-Hole Tube Headers & Wire Housings HDR PIN 1X16C VRT THRU HOLE .100 AMPMODU Headers, Housings & Contacts CONN HEADER VERT 16POS PCB TIN Conn Shrouded Header HDR 16 POS 2.54mm Solder ST Thru-Hole Tube Product Highlights:HeaderNumber of Positions = 16Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Terminate To Printed Circuit BoardSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 16 MTE HDR SRST LATCH .100CL
6-147278-5
te connectivity / amp
Conn Shrouded Header HDR 16 POS 2.54mm Solder RA SMD T/R .100 AMPMODU Headers, Housings & Contacts CONN HEADER 16POS R/A SMD GOLD Headers & Wire Housings 16 MTE HDR SRRA SFMNT .100CL 16 MTE HDR SRRA SFMNT .100CL 16 MTE HDR SRRA SFMNT .100CL Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE
6-103669-5
te connectivity / amp
Conn Shrouded Header HDR 16 POS 2.54mm Solder ST Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER VERT 16POS PCB TIN Headers & Wire Housings 16 MTE HDR SRST LATCH W/HLDWN 16 MTE HDR SRST LATCH W/HLDWN
1-103653-5
te connectivity / amp
Conn Housing PL 16 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN PLUG 16POS .1" POL UNLOAD Headers & Wire Housings 16 SHRD PIN HSG SR LATCH Conn Housing PL 16 POS 2.54mm Crimp ST Cable Mount Product Highlights:HousingNot PreloadedNumber of Positions = 16Housing Type = PinNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 16 MTE SHRD PIN HSG SR LATCH
6-104909-5
te connectivity / amp
Conn Shrouded Header HDR 16 POS 2.54mm Solder ST Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER VERT .100 16POS 15AU Headers & Wire Housings HDR PIN 1X16C VRT Conn Shrouded Header HDR 16 POS 2.54mm Solder ST Thru-Hole Tube Product Highlights:HeaderNumber of Positions = 16Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Terminate To Printed Circuit BoardSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 16 MTE HDR SRST LATCH W/HLDWN
6-103908-5
te connectivity / amp
Conn Shrouded Header HDR 16 POS 2.54mm Solder ST Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER VERT .100 16POS 30AU Headers & Wire Housings 16MTE HDR SRST LATCH W/HLDWN 16 MTE HDR SRST LATCH W/HLDWN 16 MTE HDR SRST LATCH W/HLDWN Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE
1-104503-5
te connectivity / amp
Conn Housing PL 16 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN PIN HSG 16POS .100 UNLOAD Headers & Wire Housings RCPT 16P .100 UNLOAD Conn Housing PL 16 POS 2.54mm Crimp ST Cable Mount Product Highlights:HousingNot PreloadedNumber of Positions = 16Housing Type = PinNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 16 Position Single Row 2.54 mm Spacing PIN Header Housing Connector TE Connectivity AMPMODU MTE 系列 2.54mm 节距 16 路 直 公 电缆安装 PCB 连接器外壳 16 MTE PIN HSG SR RIB .100CL
58336-1
te connectivity / amp
Connector Accessories Pistol Grip Hand Tool Terminating Head Crimpers HEAD IDC W/O TOOL HEAD (IDC) MODU MTE W/O TL Pistol Grip Hand Tool Terminating Head TERMINATING HEAD, 58074-1 & 58075-1 CRIMP TOOL TERMINATINGHEADFORAMPMODUMTERECEPTACLEPISTOLGRIPTOOL 22-30 AWG Rectangular Crimp Heads (IDC) Tool Terminating head, 58336-1, TE Connectivity
6-103893-5
te connectivity / amp
Conn IDC Connector PIN 16 POS 2.54mm IDT ST Cable Mount Individual .100 AMPMODU Headers, Housings & Contacts 16 MTE SHRD PIN SR LATCH .100 Headers & Wire Housings 16 MTE SHRD PIN SR LATCH .100 16 MTE SHRD PIN SR LATCH .100 Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE
6-147324-5
te connectivity / amp
Conn Shrouded Header HDR 16 POS 2.54mm Solder RA SMD T/R .100 AMPMODU Headers, Housings & Contacts CONN HEADER 16POS R/A TIN SMD Headers & Wire Housings 16 MTE HDR SRRA SMT.100CL .100 AMPMODU Headers, Housings & Contacts Product Highlights:HeaderNumber of Positions = 16Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Terminate To Printed Circuit BoardSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 16 MTE HDR SRRA SMT.100CL
6-103735-5
te connectivity / amp
Conn Shrouded Header HDR 16 POS 2.54mm Solder ST Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER VERT .100 16POS GOLD Headers & Wire Housings HDR PIN 1X16C VRT 16 MTE HDR SRST LATCH .100CL 16 MTE HDR SRST LATCH .100CL Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE
6-103635-5
te connectivity / amp
Conn Shrouded Header HDR 16 POS 2.54mm Solder RA Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER RT/A .100 16POS 15AU Headers & Wire Housings 16 HDR SRRA LTCH Conn Shrouded Header HDR 16 POS 2.54mm Solder RA Thru-Hole Tube Product Highlights:HeaderNumber of Positions = 16Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Terminate To Printed Circuit BoardSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 16 MTE HDR SRRA LTCH.100CL LF
6-104910-5
te connectivity / amp

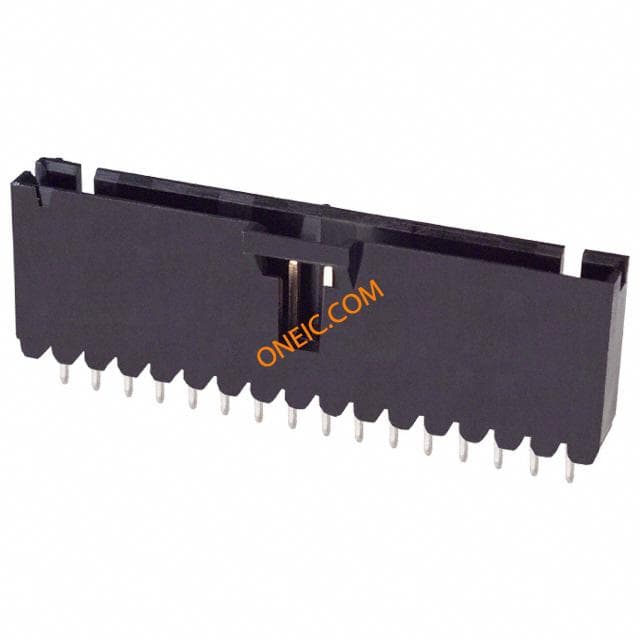

Conn Shrouded Header HDR 16 POS 2.54mm Solder ST Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER VERT .100 16POS 15AU TE Connectivity MTE Series 2.54mm Pitch 16 Way 1 Row Straight PCB Header, Solder Termination, 3A Headers & Wire Housings HDR PIN 1X16C VRT THRU HOLE Conn Shrouded Header HDR 16 POS 2.54mm Solder ST Thru-Hole Tube Product Highlights:ConnectorPreloadedHousing Gender = Header - PinContact Gender = Pin2.54 mm CenterlineSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE TE Connectivity AMPMODU MTE 系列 2.54mm节距 16路 (1排) 直 PCB 针座, 焊接端接, 3A , 通孔 16 MTE HDR SRST LATCH .100CL
