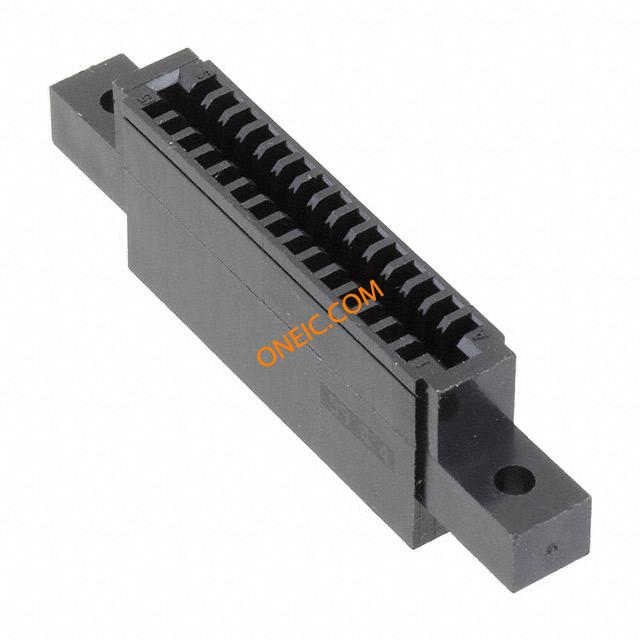

583718-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 30 POS 2.54mm Crimp ST Cable Mount .100, .125, .156 Centerline Connectors (Crimp Snap Twin Leaf) TW-LEAF CRP HSG 30 POS 100 C/L Standard Card Edge Connectors TW-LEAF CRP HSG. 50 POS. Conn Housing RCP 30 POS 2.54mm Crimp ST Cable Mount Product Highlights:Housing15 Dual Positions2.54 mm CenterlineWith Mounting EarsSearch Keywords:card edge, wire to board, NIC, Network Interface Cards, PC Cards, wire to board, power, high density, pcb connectors CONN CARDEDGE HSG DUAL 30POS TW-LEAF CRP HSG 15 POS 100 C/L |
| 分类 |
商业参数
| 标准包装数量 | Bulk | 工厂包装数量 | 300 |
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 连接器阻抗 | 压接 | 最大额定电流 | 5 |
机械参数
| 颜色 | Black | 间距 | 2.54 mm |
| 锁定类型 | 带有 | 包装方式 | Bulk |
| 壳体颜色 | 黑色 | 导线线规 | 16-28 AWG |
| 外壳颜色 | Black | 安装类型 | Straight |
| 卡厚度 | 0.055" ~ 0.070" (1.40mm ~ 1.78mm) | 连接器类型 | 印刷电路板 |
| 法兰特征 | Top Mount Opening, Unthreaded, 0.128" (3.25mm) Dia | 安装样式 | 不带 |
| 排数 | 2 | 高度（英寸） | .75 |
| 壳体材料 | Polyester GF | 总长度 | 2.6 |
| 安装特性 | With | 包装数量 | 300 |
| 触点数 | 30 | 位数 | 30 |
| 绝缘材料 - 材质 | Polyester Thermoplastic, Glass Filled | 安装孔直径 | 带有 |
| 中心触点材料 | 2.54 [0.100] | 静电放电屏蔽 | 不带 |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 产品特性 | Flange |
| 卡类型 | Non Specified - Dual Edge | 产品子类型 | Housing |
| 转换前位置数 | 15 | ||
环境参数
| 测试温度 | 标准部件 - 非辉光导线 | 工作温度 | -40°C ~ 85°C |
