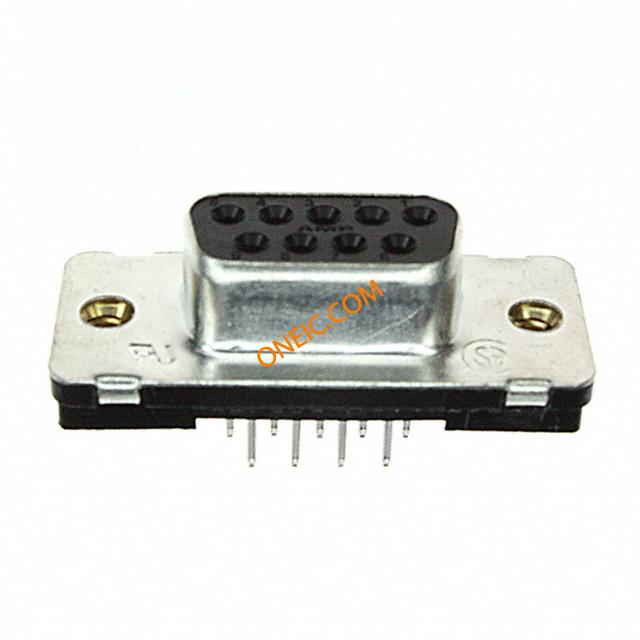

5747150-9
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn D-Subminiature SKT 9 POS 2.74mm Solder ST Thru-Hole 9 Terminal 1 Port D-Sub Standard Connectors DSUB E09S V/MNT Standard Board Mount Connectors CONN D-SUB RECPT STR 9POS PCB AU AMPLIMITE HD-20 d-sub PCB socket, 9 way Conn D-Subminiature SKT 9 POS 2.74mm Solder ST Thru-Hole 9 Terminal 1 Port Product Highlights:Number of Positions = 9ReceptaclePCB Mount Angle = VerticalProduct Series = HD 20With Mating Connector LockSearch Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub Conn;D-Sub;PCBSocket;9Pos;STR;HD-20Series;20AWG;FrontMetalShell HD20 Series 9 Position Straight Socket Board Mount D-Sub Connector TE Connectivity Amplimite HD-20 系列 9 路 直向 通孔安装 PCB D-sub 连接器 插座 09 RCPT SP/FMS INSRT |
| 分类 |
商业参数
| 产品类别 | D-Sub Standard Connectors | 标准包装数量 | Rail / Tube |
| 工厂包装数量 | 17 | ||
合规参数
| RoHS | RoHS Compliant By Exemption | 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 接地方式 | Without | 额定电压 | 125V |
| 连接器阻抗 | 螺纹插针 | 最大额定电流 | 6A |
机械参数
| 颜色 | Black | 深度 | 12.55mm |
| 间距 | 2.74 mm | 宽度 | 5.99mm |
| 长度 | 30.89mm | 密封型 | No |
| 外形尺寸(长x宽) | 1 | 包装方式 | Tube |
| 壳体颜色 | 黑色 | 引脚样式 | Round |
| 外壳尺寸 | 1 | 方向 | 直 |
| 端接方式 | Solder | 触点形式 | Signal |
| 触头类型 | Signal | 柱间距 | .108 |
| 外壳表面处理 | 锡 | 第二连接器 | With |
| 触点形状 | Round | 安装类型 | Through Hole |
| 外壳镀层 | Tin | 连接器类型 | Receptacle, Female Sockets |
| 接触镀层 | Gold | 法兰特征 | Housing/Shell (4-40) |
| 接地类型 | Without | 安装样式 | Through Hole |
| 排数 | 2 | 外壳材料（壳体） | Steel |
| 电路板厚度 | 0.093 â 0.125 [2.36 â 3.18] | 连接器样式 | D-Sub |
| 插入件材料 | Brass | 锁定特性 | Threaded Inserts |
| 外形（宽 x 高） | Standard | 触头材料 | Phosphor Bronze |
| 壳体材料 | Thermoplastic | 安装特性 | 安装孔 |
| 包装数量 | 17 | 面板安装类型 | Without |
| 尺寸/外形 | 0.66 [.026] | 接地凹痕 | Without |
| 连接器颜色 | None | 外径 | .66 mm [ .026 in ] |
| 触点数 | 9 | 位数 | 9 |
| 外壳尺寸-插件 | Front Metal Shell | 安装孔直径 | 3.05 [.120] |
| 外壳材料及表面处理 | Steel, Tin Plated | 端子柱长度 | 4.32 [0.170] |
| 接触镀层厚度 | Flash | 触点材料 - 镀层 | 黄铜 |
| 外壳与棱镜材料 | 否 | 外壳尺寸，连接器布局 | 1 (DE, E) |
产品信息
| 备注 | All receptacles are preloaded with size 20 DF posted socket contacts | 类型 | D-Subminiature |
| 连接器性别 | SKT | 系列 | HD-20 |
| 可密封 | 否 | 制造商全称 | AMP |
| 预装 | 是 | 产品子类型 | 连接器 |
| 其他规格 | Threaded Insert, 4-40 UNC | ||
