5745833-9
| 制造商 | TE Connectivity Ltd. |

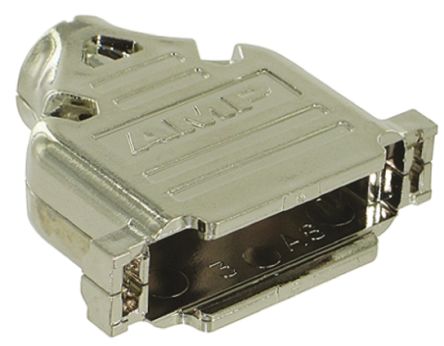

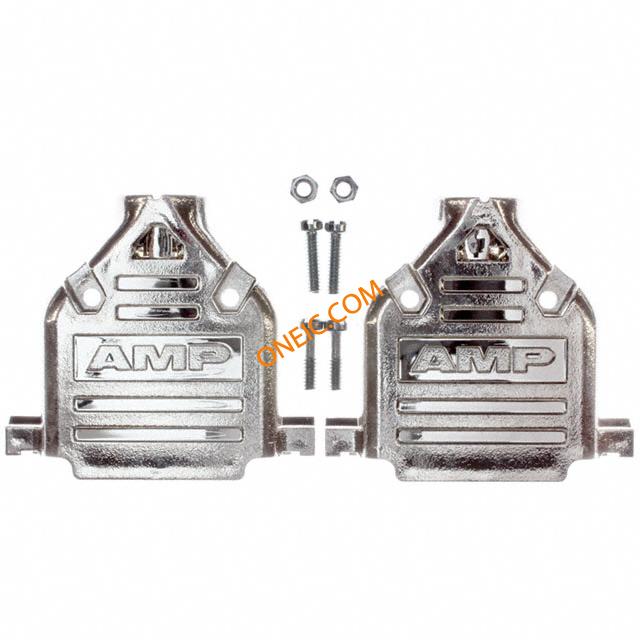

| 描述 | Connector Accessories 25 POS Backshell/Cable Clamp Thermoplastic Shell Bright Nickel Over Copper Finish Size 3 Individual D-Sub Backshells DSUB ACC: B CABLE CLAMP SHLD Cable Clamps CONN BACKSHELL DB25 METAL PLATED AMPLIMITE Cable Clamp for Shell Size 3; Shielded; 180 Degree Cable Exit Backshell/Cable Clamp 180� 3 Shell Size Bright Nickel Over Copper Metal Plated Thermoplastic Individual Backshell/Cable Clamp 180° 3 Shell Size Bright Nickel Over Copper Metal Plated Thermoplastic Individual Backshell/Cable Clamp 180° 3 Shell Size Bright Nickel Over Copper Metal Plated Thermoplastic Individual Product Highlights:Backshell/Cable ClampCable Clamp Type = Two-Piece RFI/EMI Shield180° Cable Exit AngleCable Insulation Diameter = 7.11 mmNumber of Positions = 25Search Keywords:AMPLIMITE, Subminiature D, input/output, box to box, d-sub, d sub, dsub Hood;D-Sub;25Pos;StraightExit;AMP;MetallizedPlastic;0.280In.CblDia;EMI/RFIShield TE Connectivity AMPLIMITE 系列 25 路 直 D-sub 连接器底壳 CABLE CLAMP KIT,SZ 3 |
| 分类 |
商业参数
| 交货时间 | 84 Days | 子类别 | Backshells |
| 产品类别 | D-Sub Backshells | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant | 零件状态 | 747784-3 |
电气参数
| 连接器阻抗 | 180 | ||
机械参数
| 颜色 | Silver | 深度 | 48.76 mm |
| 高度 | 17.27 mm | 外形尺寸(长x宽) | 3 |
| 镀层 | Nickel over Copper | 材料（通用） | Thermoplastic |
| 包装方式 | Bulk | 屏蔽 | Shielded |
| 出线方向 | 180° | 电缆类型 | Round |
| 外壳尺寸 | 3 | 导线线规 | 金属电镀热塑性塑料 |
| 方向 | 直 | 螺纹尺寸 | 4-40 |
| 外壳表面处理 | Bright | 电缆开口 | 180° |
| 外壳镀层 | Bright Nickel over Copper | 线径 | 7.11 mm [ .28 in ] |
| 电缆直径 | 7.11 mm | 电缆端类型 | Straight |
| 外壳材料（壳体） | Thermoplastic | 材料表面处理 | Nickel over Copper |
| 屏蔽材料 | 铜镀镍 | 总长度 | 53.08 mm |
| 包装数量 | 1 | 端接样式 | 两件式 RFI/EMI 屏蔽 |
| 触点数 | 25 | 位数 | 25 |
| 衬套/护套类型 | Without | 兼容外壳尺寸（如TM-700等） | 插头/母端 |
| 电缆对数 | 1 | 供应商器件封装 | Assembly Hardware |
| 后壳材料及镀层 | MetalizedPlastic | ||
产品信息
| 备注 | 对于屏蔽电缆夹具，不能使用带有铆螺母的连接器壳体。, 所有部件都是包装好但未装配的状态。, 锁紧螺丝必须单独购买。 | 类型 | Backshell/Cable Clamp |
| 系列 | AMPLIMITE, AMP | 产品特性 | Assembly Kit, Mating Screws 4-40 |
| 硬件配件 | Assembly Hardware | 主要用途 | Assembly Kit, Mating Screws 4-40 |
| 制造商全称 | AMP | 产品子类型 | 附件 |
| 附件类型 | Two Piece Backshell | 射频系列/标准 | 5745833 |
| 适用产品/相关产品 | 745833-9 | ||
