点击放大查看

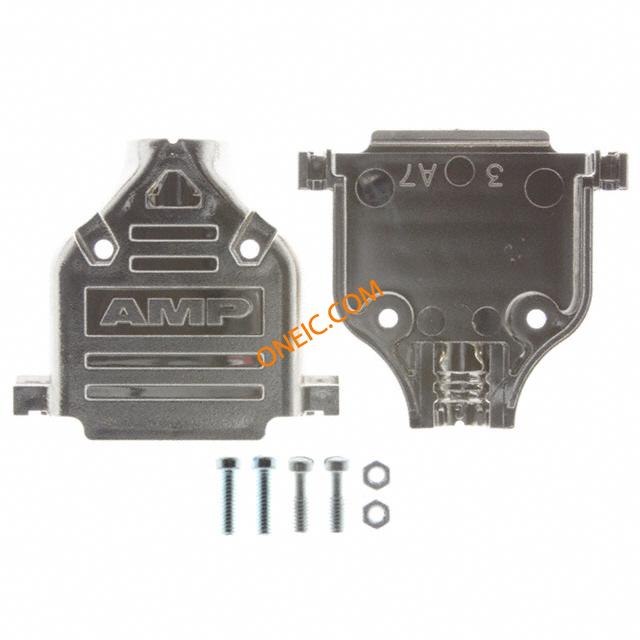

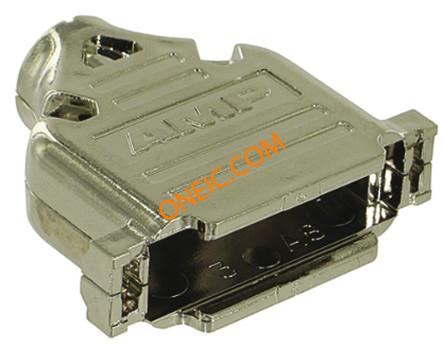

5745833-7
| 制造商 | TE Connectivity Ltd. |
| 描述 | Connector Accessories 25 POS Backshell/Cable Clamp Thermoplastic Shell Bright Nickel Over Copper Finish Size 3 Individual D-Sub Backshells MTL PLTD PLST KIT 25 .35 Cable Clamps CONN BACKSHELL DB25 METAL PLATED Hood,D-Sub,25Pos,StraightExit,AMP Backshell/Cable Clamp 180° 3 Shell Size Bright Nickel Over Copper Thermoplastic Individual Backshell/Cable Clamp 180° 3 Shell Size Bright Nickel Over Copper Thermoplastic Individual Product Highlights:Backshell/Cable ClampCable Clamp Type = Two-Piece RFI/EMI Shield180° Cable Exit AngleCable Insulation Diameter = 8.89 mmNumber of Positions = 25Search Keywords:AMPLIMITE, Subminiature D, input/output, box to box, d-sub, d sub, dsub CABLE CLAMP KIT, SIZE 3, THERMOPLASTIC Hood;D-Sub;25Pos;StraightExit;AMP;MetallizedPlastic;0.350In.CblDia;EMI/RFIShield CABLE CLAMP KIT,SZ 3 |
| 分类 |
商业参数
| 交货时间 | 98 Days | 子类别 | Backshells |
| 产品类别 | D-Sub Backshells | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 39173200 |
机械参数
| 颜色 | Silver | 重量 | 0.018 |
| 镀层 | Nickel over Copper | 材料（通用） | Thermoplastic |
| 包装方式 | Bulk | 屏蔽 | Shielded |
| 出线方向 | 180° | 电缆类型 | Round |
| 外壳尺寸 | 3 | 安装类型 | Straight |
| 外壳镀层 | Bright Nickel over Copper | 电缆直径 | 8.89 mm |
| 电缆端类型 | Straight | 外壳材料（壳体） | Thermoplastic |
| 本体材料 | :Thermoplastic | 壳体材料 | Metal Plated Plastic |
| 触点数 | 25 | 位数 | 25 |
| 外壳尺寸-插件 | :DB | 电缆对数 | 1 |
| 外部壳体材料 | :Plastic | 后壳材料及镀层 | MetalizedPlastic |
产品信息
| 类型 | Backshell/Cable Clamp | 系列 | :AMPLIMITE |
| 产品特性 | Assembly Kit, Mating Screws 4-40 | 硬件配件 | Assembly Hardware |
| 制造商全称 | AMP | 附件类型 | Two Piece Backshell |
| 射频系列/标准 | 5745833 | 适用产品/相关产品 | 745833-7 |
