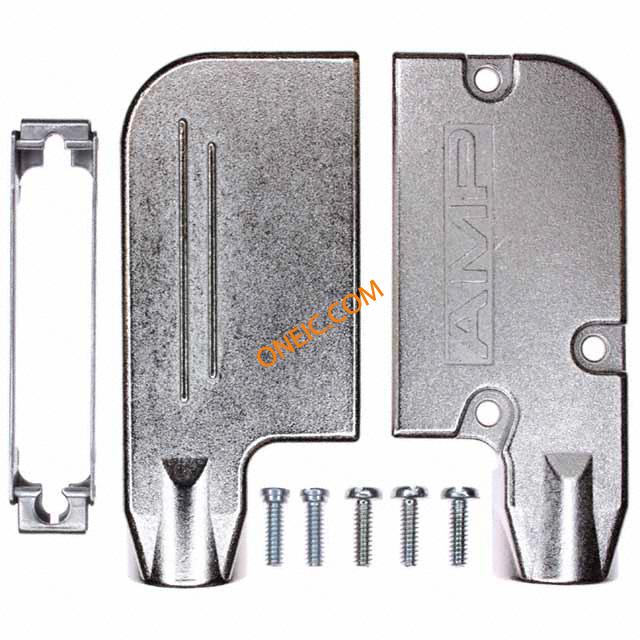

5745653-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | DIECAST STRAIN RELIEF KIT,SZ 3 D-Sub Backshells DSUB ACC: A CABLE CLAMP SHLD Cable Clamps CONN BACKSHELL DB25 90DEG METAL Backshell/Cable Clamp 90� 3 Shell Size Bright Nickel Over Copper Zinc Alloy Individual Backshell/Cable Clamp 90° 3 Shell Size Bright Nickel Over Copper Zinc Alloy Individual Backshell/Cable Clamp 90° 3 Shell Size Bright Nickel Over Copper Zinc Alloy Individual Product Highlights:Backshell/Cable ClampCable Clamp Type = Two-Piece RFI/EMI Shield90° Cable Exit AngleCable Insulation Diameter = 13.46 mmShell Size = 3Search Keywords:AMPLIMITE, Subminiature D, input/output, box to box, d-sub, d sub, dsub Hood;D-Sub;25Pos;90DegExit;AMP;Die-CastMetal;0.530In.CblDia;EMI/RFIShield |
| 分类 |
商业参数
| 交货时间 | 70 Days | 子类别 | Backshells |
| 产品类别 | D-Sub Backshells | 标准包装数量 | 1 |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
电气参数
| 连接器阻抗 | 90 | ||
机械参数
| 颜色 | Silver | 深度 | 32.63 mm |
| 高度 | 32.8 mm | 外形尺寸(长x宽) | 3 |
| 镀层 | Nickel over Copper | 材料（通用） | Stainless steel |
| 包装方式 | Bulk | 屏蔽 | Shielded |
| 出线方向 | 90° | 电缆类型 | Round |
| 外壳尺寸 | 3 | 导线线规 | 锌合金 |
| 屏蔽类型 | Yes | 螺纹尺寸 | 4-40 |
| 外壳表面处理 | Bright | 电缆开口 | 90° |
| 外壳镀层 | Bright Nickel over Copper | 线径 | 13.46 mm [ .53 in ] |
| 电缆直径 | 13.46 mm | 电缆端类型 | 90 deg |
| 电缆材料 | Die Cast | 外壳材料（壳体） | Zinc Die Cast |
| 材料表面处理 | Nickel over Copper | 屏蔽材料 | 铜镀镍 |
| 板侧间距 | With | 触头材料 | 不锈钢 |
| 总长度 | 58.7 mm | 包装数量 | Individual Kit |
| 电缆端接方式 | Two-Piece RFI/EMI Shield | 端接样式 | 两件式 RFI/EMI 屏蔽 |
| 绝缘直径 | 13.46 [0.530] | 位数 | 25 |
| 衬套/护套类型 | Without | 兼容外壳尺寸（如TM-700等） | 插头/母端 |
| 电缆对数 | 1 | 法兰下方引脚尺寸 | 带有 |
| 供应商器件封装 | Assembly Hardware | 后壳材料及镀层 | Die-CastMetal |
产品信息
| 备注 | Each kits is comprised of a two-piece shield with three pan head screws and a s | 类型 | EMI/RFI Shielded Backshell |
| 系列 | AMPLIMITE, AMP | 产品特性 | Assembly Kit, Slide Latch |
| 硬件配件 | Assembly Hardware | 主要用途 | Assembly Kit, Slide Latch |
| 制造商全称 | AMP | 产品子类型 | Backshell/Cable Clamp |
| 附件类型 | Two Piece Backshell | 适用产品/相关产品 | 745653-1 |
