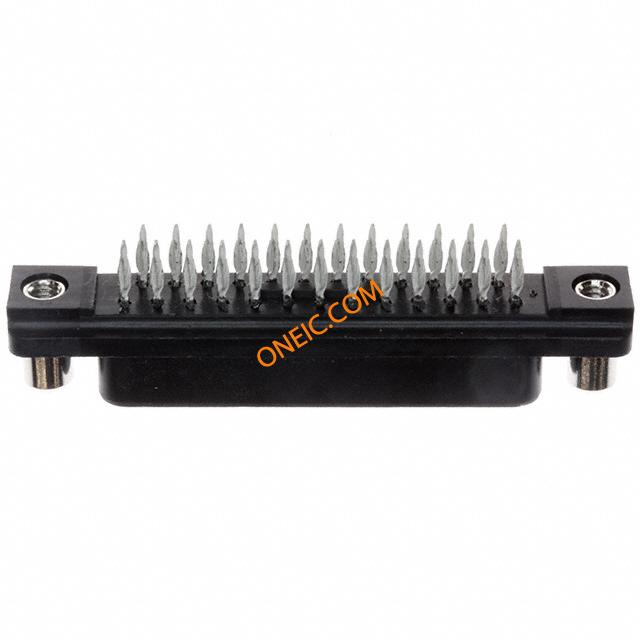

5745458-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn D-Subminiature SKT 25 POS 2.76mm Press Fit ST Thru-Hole 25 Terminal 1 Port D-Sub Standard Connectors 25P RCPT ACT PIN/AP LOW SCRLK Standard Board Mount Connectors CONN D-SUB RCPT STR 25POS AU Conn D-Subminiature SKT 25 POS 2.76mm Press Fit ST Thru-Hole 25 Terminal 1 Port Search Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub 25 RCPT ACT PIN/AP LOW SCRLK |
| 分类 |
商业参数
| 其他名称 | A32055 | 产品类别 | D-Sub Standard Connectors |
| 标准包装数量 | Trays | 工厂包装数量 | 78 |
合规参数
| RoHS | RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 接地方式 | Without | 连接器阻抗 | 母端螺钉锁，固定 |
机械参数
| 颜色 | Black | 间距 | 2.76 mm |
| 密封型 | No | 外形尺寸(长x宽) | 3 |
| 包装方式 | Tray | 屏蔽 | 否 |
| 壳体颜色 | 黑色 | 外壳尺寸 | 3 |
| 端接方式 | Press Fit | 触头类型 | Signal |
| 第二连接器 | With | 安装类型 | Through Hole |
| 连接器类型 | Receptacle, Female Sockets | 接触镀层 | Gold |
| 法兰特征 | Mating Side; Female Screwlock (4-40) | 接地类型 | Without |
| 安装样式 | Through Hole | 排数 | 2 |
| 外壳材料（壳体） | 全塑 | 电路板厚度 | 0.093 [2.36] |
| 连接器样式 | D-Sub | 插入件材料 | 铜合金 |
| 锁定特性 | Female Screwlocks, Fixed | 外形（宽 x 高） | Low |
| 触头材料 | Copper Alloy | 壳体材料 | Thermoplastic |
| 安装特性 | 作用/符合标准的尾, 安装孔 | 包装数量 | 78 |
| 面板安装类型 | Without | 接地凹痕 | Without |
| 端接样式 | Through Hole | 连接器颜色 | None |
| 触点数 | 25 | 位数 | 25 |
| 外壳尺寸-插件 | All Plastic | 端子螺钉表面处理 | 镍 |
| 安装孔直径 | 3.05 [.120] | 端子柱长度 | 5.80 [0.228] |
| 接触镀层厚度 | Flash | 螺钉材料 - 镀层 | Brass |
| 外壳与棱镜材料 | 是 | 外壳尺寸，连接器布局 | 3 (DB, B) |
产品信息
| 类型 | D-Subminiature | 连接器性别 | SKT |
| 系列 | HD-20 | 可密封 | 否 |
| 制造商全称 | AMP | 预装 | 是 |
| 产品子类型 | 连接器 | 其他规格 | 否 |
环境参数
| 工作温度 | -55°C ~ 105°C | 封装热阻 | 2.36 mm [ .093 in ] |
相关型号
749809-9
te connectivity / amp
