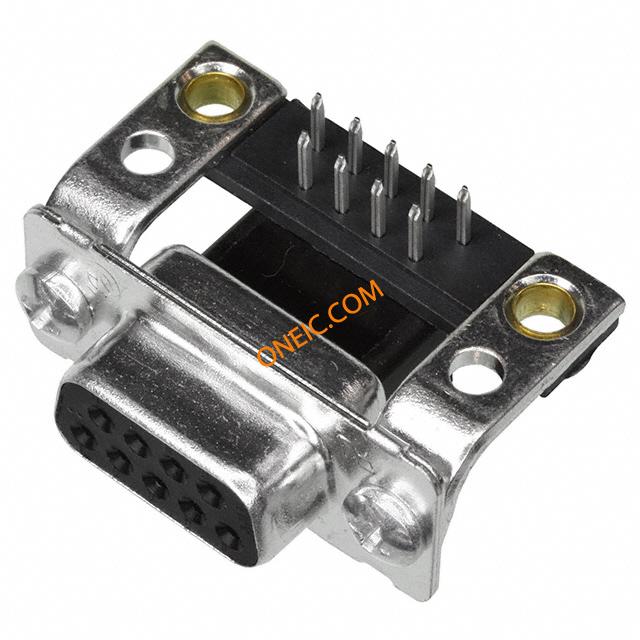

5745438-3

点击放大查看

5745438-3

制造商
TE Connectivity Ltd.
描述D-Sub Standard Connectors 09P RCPT RA/MS 454 Standard Board Mount Connectors CONN D-SUB RCPT R/A 9POS Conn D-Subminiature SKT 9 POS 2.74mm Solder RA Thru-Hole 9 Terminal 1 Port Conn D-Subminiature SKT 9 POS 2.74mm Solder RA Thru-Hole 9 Terminal 1 Port Product Highlights:Number of Positions = 9ReceptaclePCB Mount Angle = Right AngleProduct Series = HD 20With Mating Connector LockSearch Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub
分类
连接器解决方案D-Sub连接器

商业参数

其他名称A35145产品类别D-Sub Standard Connectors
标准包装数量560工厂包装数量140

合规参数

RoHSRoHS Compliant无铅定义Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c
RoHS/ELV合规状态RoHS compliant, ELV compliant材料阻燃等级UL 94V-0

电气参数

接地方式Without额定电压125V
最大额定电流6A

机械参数

颜色Black密封型No
包装方式Tray外壳尺寸1
端接方式Solder触头类型Signal
第二连接器With触点形状Square
安装类型Right Angle外壳镀层Tin
连接器类型Receptacle, Female Sockets接触镀层Gold
法兰特征Mating Side; Standard Screws (4-40)接地类型Without
安装样式Through Hole排数2
外壳材料（壳体）Steel电路板厚度0.093 [2.36]
连接器样式D-Sub插入件材料Thermoplastic
锁定特性Mounting Screws触头材料Phosphor Bronze
壳体材料Polyamide (PA), Nylon, Glass Filled面板安装类型Without
尺寸/外形0.64 [.025]接地凹痕Without
外形尺寸 长x宽x高11.53 [.454]端接样式Through Hole
连接器颜色None触点数9
位数9外壳尺寸-插件Full Metal
安装孔直径3.05 [.120]外壳材料及表面处理Steel, Tin Plated
端子柱长度3.18 [0.125]接触镀层厚度Flash
外壳尺寸，连接器布局1 (DE, E)

产品信息

备注All receptacles are preloaded with size 20 DF posted socket contacts连接器性别Receptacle
系列HD-20产品特性Mounting Brackets
制造商全称AMP

环境参数

工作温度-55°C ~ 105°C

文档与媒体

5745438-3?RQPN=5745438-3
