点击放大查看

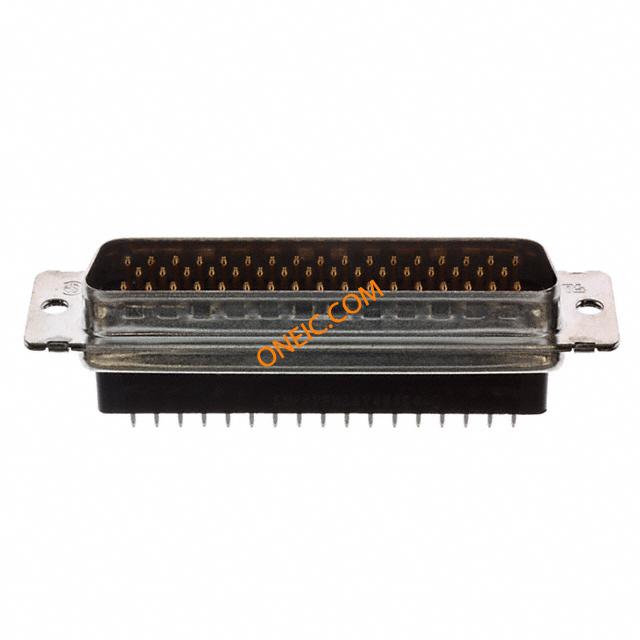

5745414-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn D-Subminiature PIN 50 POS 2.76mm Solder ST Thru-Hole 50 Terminal 1 Port D-Sub Standard Connectors PLUG FULL MTL SHL 50 standard mntg holes Standard Board Mount Connectors CONN D-SUB PLUG STR 50POS PCB AU Conn D-Subminiature PIN 50 POS 2.76mm Solder ST Thru-Hole 50 Terminal 1 Port Product Highlights:Number of Positions = 50PlugPCB Mount Angle = VerticalProduct Series = HD 20Without Mating Connector LockSearch Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub D SUB CONNECTOR, STANDARD, 50POS, PLUG Conn;D-Sub;PCBPlug;50Pos;STR;HD-20Series;20AWG;FullMetalShell TE Connectivity Amplimite HD-20 系列 2.768mm 节距 50 路 直向 通孔安装 PCB D-sub 连接器 插头 50 PLUG SP/MS STD |
| 分类 |
商业参数
| 产品类别 | D-Sub Standard Connectors | 标准包装数量 | Rail / Tube |
| 工厂包装数量 | 7 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85366910 |
| 抗辐射加固 | No | 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 接地方式 | Without | 量程（°/s） | :TE CONNECTIVITY - Amplimite HD-20 Series |
| 额定电压 | 125V | 最大额定电流 | 6A |
| 最小供电电压 | 250VDC/250VAC | ||
机械参数
| 颜色 | Black | 深度 | 15.36 mm |
| 间距 | 2.76 mm | 高度 | 17.5 mm |
| 密封型 | No | 重量 | 0.014 |
| 包装方式 | Tube | 外壳尺寸 | 5 |
| 端接方式 | Solder | 触头类型 | Signal |
| 第二连接器 | Without | 触点形状 | Square |
| 安装类型 | Through Hole | 外壳镀层 | Tin |
| 连接器类型 | Plug, Male Pins | 接触镀层 | Gold |
| 法兰特征 | Housing/Shell (Unthreaded) | 接地类型 | Without |
| 安装样式 | Through Hole | 排数 | 2 |
| 外壳材料（壳体） | Steel | 电路板厚度 | 0.062 â 0.093 [1.57 â 2.36] |
| 连接器样式 | D-Sub | 插入件材料 | Thermoplastic |
| 本体材料 | :Metal | 外形（宽 x 高） | High |
| 触头材料 | Brass | 壳体材料 | Thermoplastic |
| 总长度 | 66.92 mm | 面板安装类型 | Without |
| 尺寸/外形 | 0.64 [.025] | 接地凹痕 | With |
| 端接样式 | Through Hole | 连接器颜色 | None |
| 触点数 | 50 | 接触件端接 | :Through Hole Vertical |
| 位数 | 50 | 外壳尺寸-插件 | Full Metal |
| 安装孔直径 | 3.05 [.120] | 外壳材料及表面处理 | Steel, Tin Plated |
| 端子柱长度 | 3.18 [0.125] | 接触镀层厚度 | Flash |
| 外壳尺寸，连接器布局 | 5 (DD, D) | ||
产品信息
| 备注 | Plugs are preloaded with size 20 DF posted pin contacts | 类型 | D-Subminiature |
| 连接器性别 | PIN | 系列 | HD-20 |
| 产品特性 | Grounding Indents | 制造商全称 | AMP |
| 端口数 | 1 Port | ||
环境参数
| 工作温度 | -55°C ~ 105°C | ||
