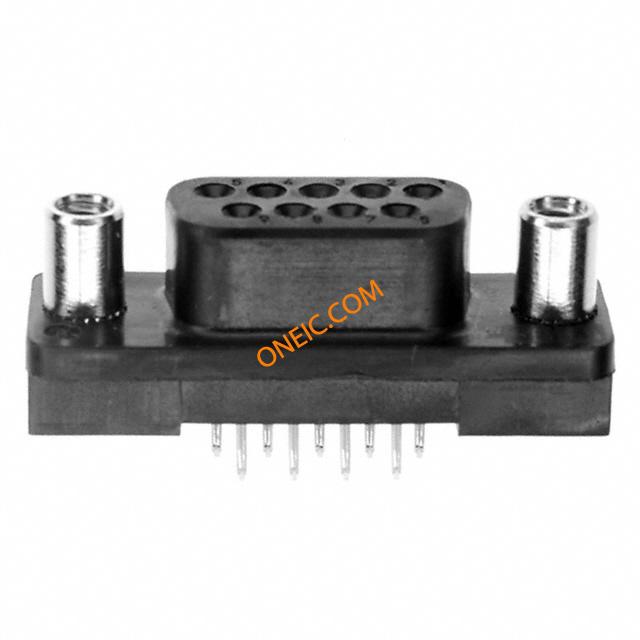

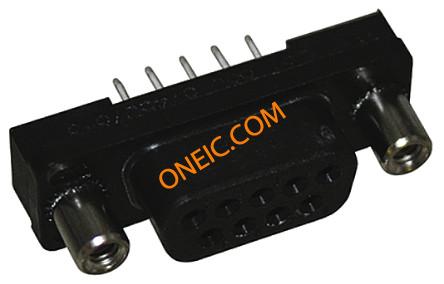

5745076-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn D-Subminiature SKT 9 POS 2.74mm Solder ST Thru-Hole 9 Terminal 1 Port D-Sub Standard Connectors E09S V/MNT CONN D-SUB RECPT STR 9POS PCB AU AMPLIMITEHD20 PCB Receptacle Straight 9P Conn D-Subminiature SKT 9 POS 2.74mm Solder ST Thru-Hole 9 Terminal 1 Port Product Highlights:Number of Positions = 9ReceptaclePCB Mount Angle = VerticalProduct Series = HD 20With Mating Connector LockSearch Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub D SUB CONNECTOR, STANDARD, 9POS, RCPT Conn;D-Sub;PCBSocket;9Pos;STR;HD-20Series;20AWG;AllPlasticShell HD-20 RCPT 9P VERT FFSCRLK |
| 分类 |
商业参数
| 产品类别 | D-Sub Standard Connectors | 标准包装数量 | Rail / Tube |
| 工厂包装数量 | 17 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85366910 |
| 抗辐射加固 | No | ||
电气参数
| 量程（°/s） | :TE CONNECTIVITY - Amplimite HD-20 Series | 额定电压 | 125V |
| 最大额定电流 | 6A | ||
机械参数
| 颜色 | Black | 深度 | 10.41 mm |
| 间距 | 2.74 mm | 高度 | 12.17 mm |
| 重量 | 0.004 | 包装方式 | Tube |
| 外壳尺寸 | 1 | 端接方式 | Solder |
| 触头类型 | Signal | 安装类型 | Through Hole |
| 连接器类型 | Receptacle, Female Sockets | 接触镀层 | Gold |
| 法兰特征 | Mating Side; Female Screwlock (4-40) | 安装样式 | Through Hole |
| 排数 | 2 | 连接器样式 | D-Sub |
| 本体材料 | :Plastic | 触头材料 | Phosphor Bronze |
| 壳体材料 | Polyester | 总长度 | 30.89 mm |
| 端接样式 | Through Hole | 触点数 | 9 |
| 接触件端接 | :Through Hole Vertical | 位数 | 9 |
| 接触镀层厚度 | Flash | 外壳尺寸，连接器布局 | 1 (DE, E) |
产品信息
| 类型 | D-Subminiature | 连接器性别 | SKT |
| 系列 | HD-20 | 端口数 | 1 Port |
环境参数
| 工作温度 | -55°C ~ 105°C | ||
