5650875-5

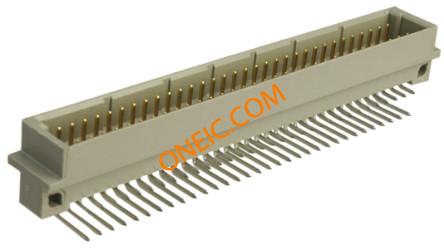

点击放大查看

5650875-5

制造商
TE Connectivity Ltd.
描述Conn DIN 41612 RCP 150 POS 2.54mm Solder RA Thru-Hole DIN 41612 Connectors RECPT 150P R/A TYPE R Eurocard Type R CONN DIN RECEPT 150POS R/A PCB Eurocard R Header assembly 50+50+50P Conn DIN 41612 RCP 150 POS 2.54mm Solder RA Thru-Hole Product Highlights:ReceptacleNumber of Positions = 150PCB Mount Angle = Right AngleNo PCB Retention FeaturePost Type = Solder PostSearch Keywords:parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 DIN 41612 PCB CONNECTOR RECEPTACLE 150POS ASSY,RECEPTACLE,EUROCARD,TYPER,LEAD-FRE 150 Position 3 Row 2.54mm Pitch Right Angle Eurocard Type R Receptacle Connector ASSY,RECEPTACLE,EUROCARD,TYPE
分类
连接器解决方案背板连接器DIN 41612
对参数有疑问？问 AI 助手

商业参数

产品类别DIN 41612 Connectors标准包装数量Bulk
工厂包装数量140

合规参数

RoHSRoHS Compliant海关税号85366910
无铅定义Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder cRoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级UL 94V-0

机械参数

颜色Gray间距2.54 mm
重量0涂层Without
包装方式Tube端接方式Solder
触头类型Solder Post尾部长度2.79 mm
安装类型Through Hole连接器类型Receptacle, Female Sockets
接触镀层DIN 41612 Class 2排数3
触头材料Copper Alloy壳体材料Polymer
主要材料Eurocard先合后断No
端接样式Solder Pin配接方向Without
触点数150接触件端接:Through Hole Right Angle
位数150绝缘材料 - 材质Polymer Thermoplastic, Glass Filled
端子柱长度2.79 [0.110]

产品信息

类型DIN 41612等级II
样式R连接器性别Female
系列5650875导向方式Without
产品子类型Receptacle加载位置数All

环境参数

级别、等级2工作温度-55°C ~ 125°C

文档与媒体

在线文档
5650875-5?RQPN=5650875-5
