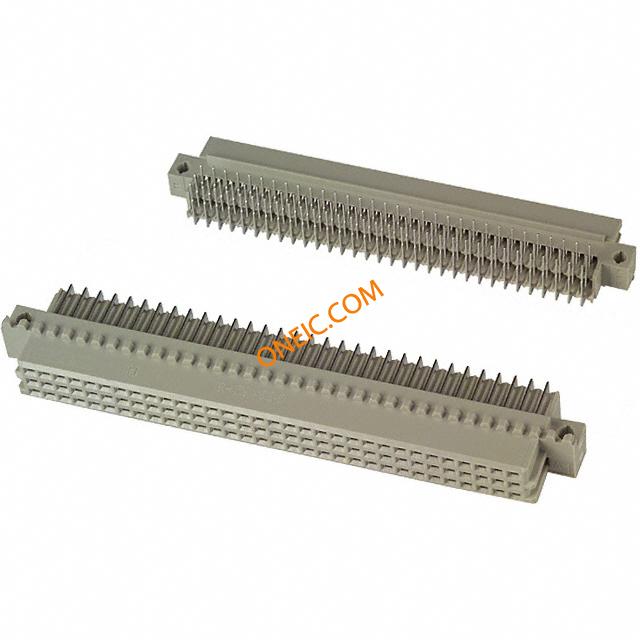

5650461-5

点击放大查看

5650461-5

制造商
TE Connectivity Ltd.
描述Conn DIN 41612 SKT 96 POS 2.54mm Solder RA Thru-Hole Eurocard Type R CONN DIN RECEPT 96POS RT ANG PCB 2.54mm,pin,DIN 41612,solder,PCB,90°,96w DIN 41612 Connectors Type R Receptacle 96 Position Conn DIN 41612 SKT 96 POS 2.54mm Solder RA Thru-Hole Product Highlights:ReceptacleNumber of Positions = 96PCB Mount Angle = Right AngleNo PCB Retention FeaturePost Type = Solder PostSearch Keywords:parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 SOCKET, DIN41612, R/A, R, 96WAY EurocardReceptacle;96;PhosphorBronze;Polyester;0.11in.;RightAngle;II Type R 96 Position 2.54mm Receptacle Right Angle Through Hole Eurocard Connector TE Connectivity Eurocard 系列 96 路 2.54mm 节距, R型 C2等级, 3 行 a/b/c, 直角 DIN 41612 插座, 焊接端接
分类
连接器解决方案背板连接器DIN 41612

商业参数

产品类别DIN 41612 Connectors标准包装数量Bulk
工厂包装数量140

合规参数

RoHSLead free / RoHS Compliant标准DIN41612,IEC603-2
海关税号85366930无铅定义Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c
认证机构:CSA, ULRoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级UL 94V-0

电气参数

额定电压250V

机械参数

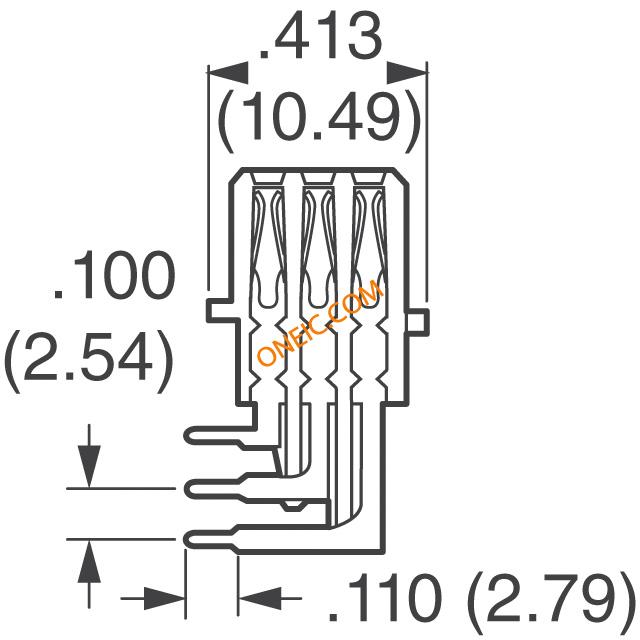

颜色Gray间距2.54 mm
高度10.49 mm重量0.0018
涂层Without材料（通用）:Polyester
包装方式Bulk外壳尺寸R
端接方式Solder触头类型Solder Post
引脚间距:2.54mm引脚长度（针脚）:2.79mm
尾部长度2.79 mm安装类型Through Hole
行程角度Right连接器类型Receptacle, Female Sockets
接触镀层Gold安装样式Through Hole
排数3触头材料Copper Alloy

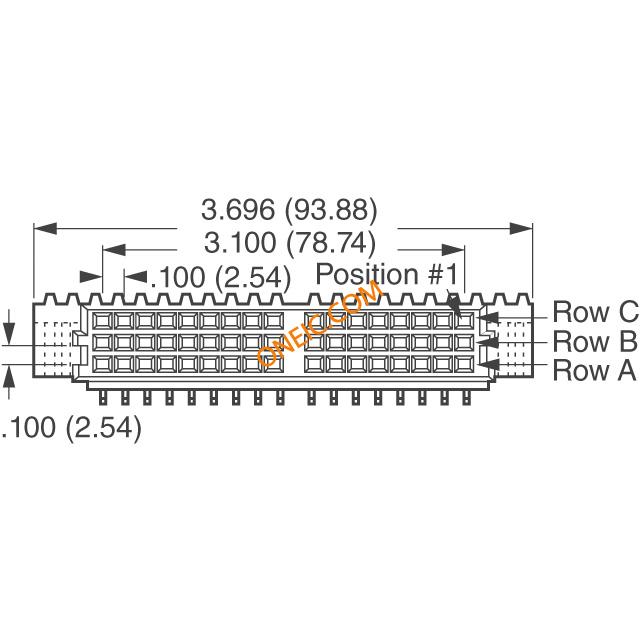

壳体材料Polymer总长度93.88 mm
主要材料Eurocard先合后断No
插针孔直径0.1"端接样式Solder
连接器颜色:Grey配接方向Without
触点数96接触件端接:Through Hole Right Angle
位数96绝缘材料 - 材质Polymer Thermoplastic, Glass Filled
安装孔直径0.11"端子柱长度2.79 [0.110]

产品信息

类型DIN 41612等级II
样式R连接器性别Female
系列5650461CAD图纸3D CAD Model
导向方式Without制造商全称Eurocard
产品子类型Receptacle测量范围:std
加载位置数All

环境参数

级别、等级2工作温度-55°C ~ 125°C

文档与媒体

在线文档
5650461-5?RQPN=5650461-5

相关型号

5650470-5

5650470-5

te connectivity / amp

Conn DIN 41612 PIN 96 POS 2.54mm Solder ST Thru-Hole Eurocard Type R CONN DIN PLUG 96POS VERT PCB Plug 96 way pin DIN41612 Eurocard DIN 41612 Connectors PLUG 96P VERT TYPE R Conn DIN 41612 PIN 96 POS 2.54mm Solder ST Thru-Hole Product Highlights:PlugNumber of Positions = 96PCB Mount Angle = VerticalNo PCB Retention FeaturePost Type = Solder PostSearch Keywords:parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 DIN 41612 PCB CONNECTOR, PLUG, 96WAY EUROCARDTypeRVerticalPlug,96Position,SolderPost,DINLevelII,Gray CONN DIN ASSY,PIN,EUROCARD,TYPE R,LEAD-

¥18.7920
详情
1-650909-4

1-650909-4

te connectivity / amp

Conn DIN 41612 PIN 96 POS 2.54mm Press Fit ST Thru-Hole Eurocard Type R CONN PLUG VERT 96 POS .100 DIN DIN 41612 Connectors EUROCARD VER PLG 96P Eurocard Type R Product Highlights:PlugNumber of Positions = 96PCB Mount Angle = VerticalYes PCB Retention FeatureACTION (Compliant) Press-fit PostsSearch Keywords:parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 096 EURO TYPE R PIN AP ASSY

¥69.7133
详情
536010-5

536010-5

te connectivity / amp

Conn DIN 41612 PL 96 POS 2.54mm Solder RA Thru-Hole Eurocard Type C CONN DIN PLUG 96POS RT ANG PCB DIN 41612 Connectors EUROCARD RA PLUG 900 Conn DIN 41612 PL 96 POS 2.54mm Solder RA Thru-Hole Product Highlights:Type C ConnectorsPlugNumber of Positions = 96Rows Loaded = A, B, CTerminate To Printed Circuit BoardSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612

¥20.8080
详情
650947-5

650947-5

te connectivity / amp

Conn DIN 41612 PL 96 POS 2.54mm Solder RA Thru-Hole Eurocard Type C CONN DIN PLUG 96POS RT ANG PCB Eurocard DIN41612 C,3row,r/a,96 pin DIN 41612 Connectors 96P RT ANG PCB CON Conn DIN 41612 PL 96 POS 2.54mm Solder RA Thru-Hole Product Highlights:Type C ConnectorsPlugNumber of Positions = 96Rows Loaded = A, B, CTerminate To Printed Circuit BoardSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 Receptacle,Eurocard;Plug;Brass;96;Polyester;Gray;PCBMount;0.130in. CONN DIN TE Connectivity Eurocard 系列 96 路 2.54mm 节距, C型 C2等级, 3 行 a/b/c, 直角 DIN 41612 插头, 焊接端接 096 EURO TYPE C PIN ST ASSY

¥19.1520
详情

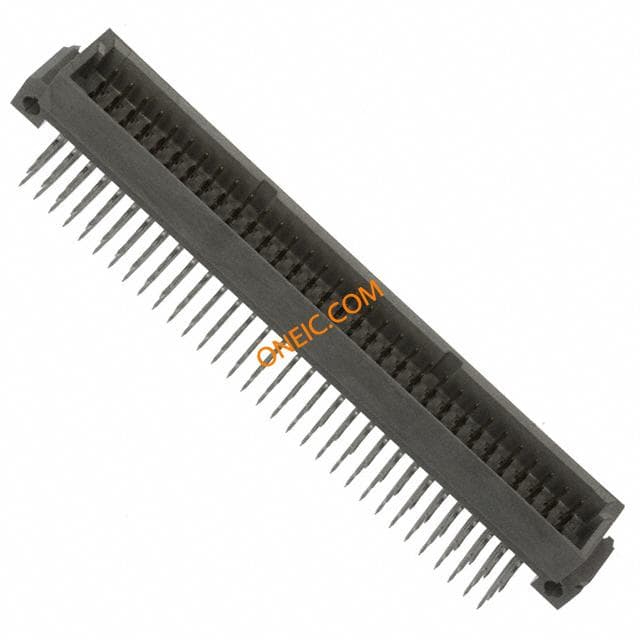

5148116-5
