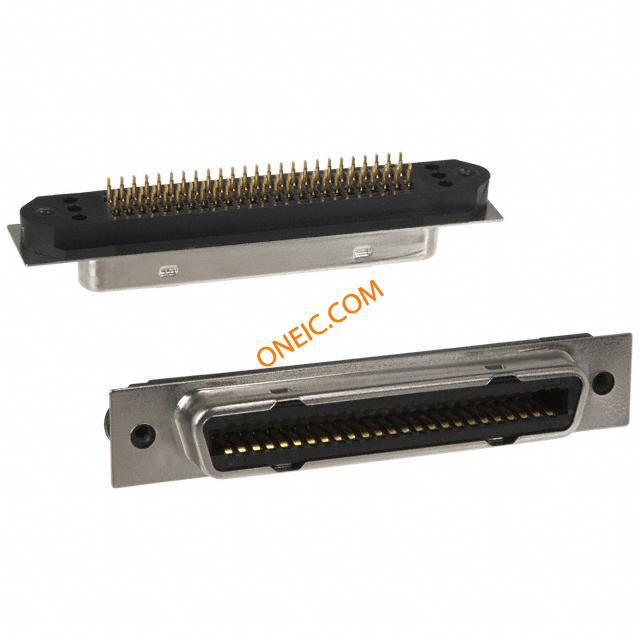

557984-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn IEEE 488 RCP 50 POS 2.16mm Solder ST Thru-Hole 50 Terminal 1 Port 2.16 [.085] Printed Circuit Board Connectors RCPT ASSY,50PO,SHLD,A/PIN,CHAM Headers & Wire Housings RECPT 50P EDGE MNT shielded Conn IEEE 488 RCP 50 POS 2.16mm Solder ST Thru-Hole 50 Terminal 1 Port Product Highlights:ReceptacleNumber of Positions = 50PCB Mount Style = VerticalStandard OrientationStandard ProfileSearch Keywords:intermateable, high density, wave solder, edge connector, vertical mount connector, insulation displacement, CHAMP-LOK, shielded, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, pcb connectors, AMPHENOL, Centronics |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 交货时间 | 73 Days | 子类别 | Connector Interface |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Trays |
| 工厂包装数量 | 140 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
机械参数
| 颜色 | Natural | 间距 | 2.16 mm |
| 包装方式 | Tray | 屏蔽 | 是 |
| 厚度 | 1.57 â 3.18 [0.062 â 0.125] | 壳体颜色 | 黑色 |
| 公共引脚 | 金 | 螺钉尺寸 | 4-40 |
| 方向 | Standard | 屏蔽类型 | Yes |
| 端接方式 | Press-Fit | 外壳表面处理 | Bright |
| 第二连接器 | Without | 安装类型 | Through Hole |
| 外壳镀层 | Bright Nickel | 连接器类型 | Receptacle |
| 接触镀层 | Gold (30) over Nickel | 法兰特征 | Insert, Threaded (4-40) |
| 安装样式 | Vertical | 排数 | 2 |
| 连接器样式 | Outer Shroud Contacts | 插入件材料 | 铜合金 |
| 外形（宽 x 高） | Standard | 屏蔽材料 | Carbon Steel |
| 触头材料 | Copper Alloy | 壳体材料 | Thermoplastic |
| 安装特性 | 作用/符合标准的尾 | 包装数量 | 20 |
| 面板安装类型 | Rear Mount | 端接样式 | Through Hole - Press Fit |
| 触点数 | 50 | 位数 | 50 |
| 端子柱长度 | 4.57 [0.180] | 接触镀层厚度 | 30µin (0.76µm) |
产品信息
| 类型 | IEEE 488 | 连接器性别 | RCP |
| 系列 | CHAMP .085, AMP | 产品特性 | Shielded |
| 方向 | 标准 | 主要用途 | Shielded |
| 制造商全称 | AMP | 预装 | 是 |
| 产品子类型 | Receptacles / Sockets - PCB | 其他规格 | No |
| 输出配置 | Through Hole | 应用细节 | ACTION PIN (Solderless) |
环境参数
| 工作温度 | - 40 C to + 105 C | 封装热阻 | 1.57 – 3.18 mm [ .062 – .1251 in ] |
文档与媒体
