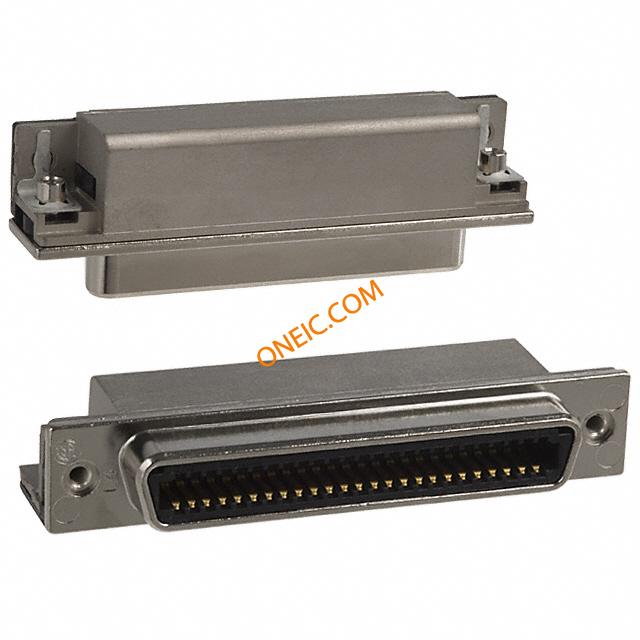

5557932-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn IEEE 488 RCP 50 POS 2.16mm Solder RA Thru-Hole 50 Terminal 1 Port 2.16 [.085] Printed Circuit Board Connectors RCPT ASSY,SHLD, 50 POSN, RTANG I/O Connectors RA 50P STANDARD 4-40 screw lk board lk Conn IEEE 488 RCP 50 POS 2.16mm Solder RA Thru-Hole 50 Terminal 1 Port Product Highlights:ReceptacleNumber of Positions = 50PCB Mount Style = Right AngleStandard OrientationStandard ProfileSearch Keywords:intermateable, high density, wave solder, edge connector, vertical mount connector, insulation displacement, CHAMP-LOK, shielded, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, pcb connectors, AMPHENOL, Centronics |
| 分类 |
商业参数
| 产品 | Micro Ribbon Connectors | 交货时间 | 98 Days |
| 子类别 | Connector Interface | 产品类别 | I/O Connectors |
| 标准包装数量 | Trays | 工厂包装数量 | 40 |
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
电气参数
| 连接器阻抗 | 螺钉锁, 螺钉锁 | ||
机械参数
| 颜色 | Black | 间距 | 2.16 mm |
| 表面处理 | Passivated | 镀层 | Tin |
| 材料（通用） | Stainless Steel | 包装方式 | Tray |
| 屏蔽 | 是 | 壳体颜色 | 黑色 |
| 螺钉尺寸 | 4-40 | 方向 | Standard |
| 屏蔽类型 | Yes | 端接方式 | Solder |
| 外壳表面处理 | Bright | 第二连接器 | With |
| 安装类型 | Through Hole | 外壳镀层 | Bright Nickel over Copper |
| 端子尺寸 | .128 | 连接器类型 | Receptacle |
| 接触镀层 | Tin | 法兰特征 | Insert, Threaded (4-40) |
| 安装样式 | Right Angle | 排数 | 2 |
| 电路板厚度 | 1.57 [0.062] | 连接器样式 | Outer Shroud Contacts |
| 插入件材料 | 铜合金 | 锁定特性 | Screwlocks |
| 磁芯材质 | Polyester | 外形（宽 x 高） | Standard |
| 屏蔽材料 | Die Cast Metal | 触头材料 | Copper Alloy |
| 壳体材料 | Polyester | 刀片材料 | 聚酯 |
| 框架材料 | Polyester | 安装特性 | 板锁 |
| 包装数量 | 40 | 面板安装类型 | Rear Mount |
| 端接样式 | Wire | 触点数 | 50 |
| 位数 | 50 | 接触件表面处理 - 配合 | 钝化 |
| 接触镀层厚度 | 30µin (0.76µm) | ||
产品信息
| 类型 | IEEE 488 | 连接器性别 | RCP |
| 产品特性 | Board Lock, Shielded | 方向 | 标准 |
| 制造商全称 | AMP | 预装 | 是 |
| 产品子类型 | 连接器 | 其他规格 | Yes |
| 适用产品/相关产品 | 557932-2 | ||
环境参数
| 封装热阻 | 1.57 mm [ .062 in ] | ||
文档与媒体
