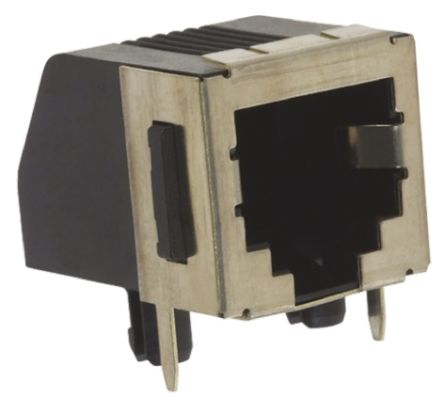

点击放大查看
5555140-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn RJ-14 F 6 POS 2.54mm Solder RA Thru-Hole 4 Terminal 1 Port Tray Cat 3 PCB Mounted Jacks - Single Port, Multi-port and Stacked CONN MOD JACK R/A 6P4C SHIELDED Modular Connectors / Ethernet Connectors 1X1 6/4 R/A LPRO Conn RJ-14 F 6 POS 2.54mm Solder RA Thru-Hole 4 Terminal 1 Port Tray Cat 3 Product Highlights:JackSingle Port Configuration1 x 1 Jack ConfigurationJack Type = RJ14Number of Positions = 6Search Keywords:FCC Part 68, REA PE-76, UL 1863, Communication Circuit Accessories, near end crosstalk (NEXT), EIA/TIA 568A, modular jacks, phone jacks, input/output, box to box, pcb mounted jacks, VAO ModJack;6position/4loadedcontacts;Shielded;Cat3 TE Connectivity 5555140 系列 6P 直角 STP 母 RJ14 连接器 PCB 安装, 模块化插孔 MJ,LPF,R/A,6P/4C,SHLD,PNL GRD |
| 分类 |
商业参数
| 产品类别 | Modular Connectors / Ethernet Connectors | 标准包装数量 | Trays |
| 工厂包装数量 | 152 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| 认证机构 | UL,CSA | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| LED | Without | 额定电压 | 150VAC |
| 最大额定电流 | 1.5/Contact A | 最小供电电压 | 150VAC |
机械参数
| 颜色 | Black | 深度 | 18.54 mm |
| 间距 | 2.54 mm | 宽度 | 15.88mm |
| 高度 | 12.7 mm | 长度 | 12.57mm |
| LED颜色 | Does Not Contain LED | 锁定类型 | Standard |
| 包装方式 | Tray | 屏蔽 | Shielded |
| 方向 | 90° Angle (Right) | 屏蔽类型 | Yes |
| 端接方式 | Solder | 引脚长度（针脚） | 3.8 mm [ .15 in ] |
| 外壳颜色 | Black | 反向插孔 | No |
| 安装类型 | Through Hole | 外壳镀层 | Tin |
| 卡扣方向（或“接线片方向”） | Down | 行程角度 | Right |
| 连接器类型 | 3.05 [0.120] | 接触镀层 | Gold (50) over Nickel (50) |
| 法兰特征 | No | 接地类型 | Panel Ground and PCB Ground |
| 安装样式 | Thru Hole | 排数 | 1 |
| 电路板厚度 | 1.57 [0.062] | 高度（英寸） | 12.70 [0.500] |
| 插入件材料 | 磷青铜 | 外形（宽 x 高） | Low |
| 屏蔽材料 | Copper Alloy | 触头材料 | Phosphor Bronze |
| 壳体材料 | Polyester (PBT) | 总长度 | 15.88 mm |
| 包装数量 | Tray | 面板安装类型 | With |
| 主要材料 | Modular | 端接样式 | Solder |
| 触点数 | 6 | 位数 | 6 |
| 电缆未暴露长度 | 3.80 [0.150] | 接触镀层厚度 | 50µin (1.27µm) |
产品信息
| 工作模式 | Single | 类型 | RJ-14 |
| 连接器性别 | F | 系列 | 555 |
| 产品特性 | Board Lock, Panel Stops | 钥匙类型 | 否 |
| 方向 | 直角 | 端口样式 | Single |
| USOC 编码 | RJ14 | 性能 | Cat3 |
| 编码、键控 | No | 产品子类型 | Jack |
| 规格说明 | RJ14 | 类别编号 | Cat 3 |
| 线路数量 | 6P | 端口数 | 1 |
| 插孔配置 | 1 x 1 | 网络技术 | Cat3 |
| 射频系列/标准 | 5555140 | 其他规格 | PCB 接地, 面板接地 |
| 性能类别 | Cat 3 | 加载位置数 | 4 |
| 位置/触点数量 | 6p4c (RJ11, RJ14) | ||
环境参数
| 额定等级 | Cat3 | 工作温度 | -40°C ~ 85°C |
| 封装热阻 | 1.57 mm [ .062 in ] | ||
