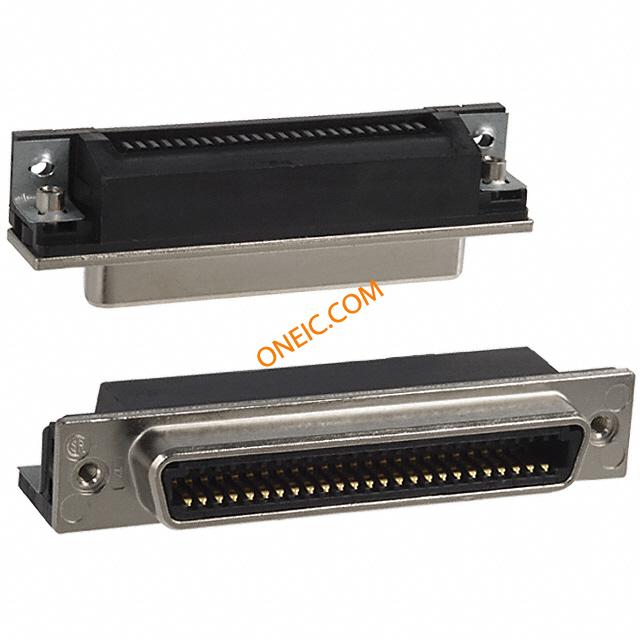

5553813-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn IEEE 488 RCP 50 POS 2.16mm Solder RA Thru-Hole 50 Terminal 1 Port 2.16 [.085] Printed Circuit Board Connectors CONN CHAMP 50 POS RECEPT RT/ANG I/O Connectors RA RECP 50P STANDARD screw lock 4-40 Conn IEEE 488 RCP 50 POS 2.16mm Solder RA Thru-Hole 50 Terminal 1 Port Product Highlights:ReceptacleNumber of Positions = 50PCB Mount Style = Right AngleStandard OrientationStandard ProfileSearch Keywords:intermateable, high density, wave solder, edge connector, vertical mount connector, insulation displacement, CHAMP-LOK, shielded, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, pcb connectors, AMPHENOL, Centronics CONNECTOR,RECEPTACLE,50POSITION,RIGHTANGLE,PCB,SCREWLOCK ASSY,EMI RCPT,50 POSN,SCR LK |
| 分类 |
商业参数
| 产品 | Micro Ribbon Connectors | 交货时间 | 28 Days |
| 子类别 | Connector Interface | 产品类别 | I/O Connectors |
| 标准包装数量 | Trays | 工厂包装数量 | 40 |
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94 V-0 |
机械参数
| 颜色 | Black | 间距 | 2.16 mm |
| 高度 | 16.25 mm | 包装方式 | Tray |
| 螺钉尺寸 | 4-40 | 方向 | Standard |
| 屏蔽类型 | Yes | 端接方式 | Solder |
| 第二连接器 | With | 安装类型 | Through Hole |
| 外壳镀层 | Nickel | 连接器类型 | Receptacle |
| 接触镀层 | Tin | 法兰特征 | Insert, Threaded (4-40) |
| 安装样式 | Right Angle | 排数 | 2 |
| 连接器样式 | Outer Shroud Contacts | 锁定特性 | Screwlocks |
| 磁芯材质 | Thermoplastic | 面板厚度 | 1.57 [0.062] |
| 外形（宽 x 高） | Standard | 屏蔽材料 | Die Cast Metal |
| 触头材料 | Copper Alloy | 壳体材料 | Thermoplastic |
| 总长度 | 84.07 mm | 框架材料 | Thermoplastic |
| 面板安装类型 | Rear Mount | 主要材料 | InterconnectSystem |
| 端接样式 | Solder Tail | 触点数 | 50 |
| 位数 | 50 | 接触镀层厚度 | 30µin (0.76µm) |
产品信息
| 备注 | For filtered connector, order P/N 093533-1.; SCSI applicable with Bail Lock Har | 类型 | IEEE 488 |
| 连接器性别 | RCP | 产品特性 | Shielded |
| 制造商全称 | AMP | 端口数 | 1 Port |
| 其他规格 | No | 适用产品/相关产品 | 553813-3 |
