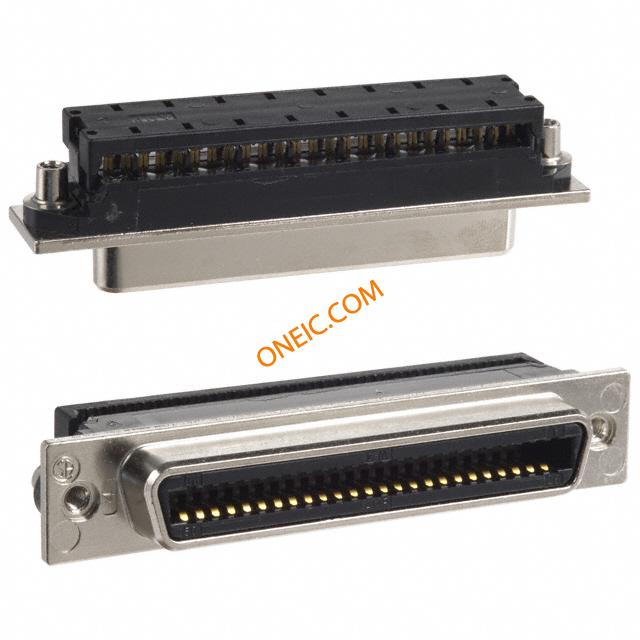

554436-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn IEEE 488 RCP 50 POS 2.16mm IDT RA Cable Mount 50 Terminal 1 Port 2.16 [.085] IDC Connectors CONN CHAMP 50 POS RECEPT SHIELD Headers & Wire Housings RECPT 50P SCREW LOCK preassembled Conn IEEE 488 RCP 50 POS 2.16mm IDT RA Cable Mount 50 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 50Product Category = ConnectorsReceptacleShieldedSearch Keywords:self-extinguishing housing, integral latching system, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, discrete wire, AMPHENOL, Centronics |
| 分类 |
商业参数
| 交货时间 | 365 Days | 其他名称 | A1557 |
| 子类别 | Connector Interface | 产品类别 | Connectors |
| 标准包装数量 | Trays | 工厂包装数量 | 100 |
合规参数
| RoHS | Contains lead / RoHS non-compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | Not ELV/RoHS compliant | ||
机械参数
| 颜色 | Black | 间距 | 2.16 mm |
| 包装方式 | Tray | 电缆类型 | Ribbon Cable |
| 螺钉尺寸 | 4-40 | 屏蔽类型 | With |
| 端接方式 | IDC | 第二连接器 | With |
| 安装类型 | Cable Mount | 外壳镀层 | Nickel |
| 连接器类型 | Receptacle | 接触镀层 | Gold Flash over Nickel |
| 法兰特征 | Board Side (4-40) | 排数 | 2 |
| 绑带材料 | Thermoplastic | 连接器样式 | Outer Shroud Contacts |
| 锁定特性 | Screwlocks | 外形（宽 x 高） | Standard |
| 屏蔽材料 | Die Cast Metal | 触头材料 | Copper Alloy |
| 壳体材料 | Thermoplastic | 包装数量 | Preassembled |
| 面板安装类型 | With | 位数 | 50 |
| 排距 - 配合 | 1.27 [0.050] | 接触镀层厚度 | 30µin (0.76µm) |
产品信息
| 备注 | Boss is a 1.02 [.040] shoulder on front of shield.; SCSI applicable with Bail L | 类型 | IEEE 488 |
| 连接器性别 | RCP | 产品特性 | Shielded |
| 制造商全称 | AMP | 产品子类型 | Connector |
| 适用产品/相关产品 | 5554436-2 | ||
