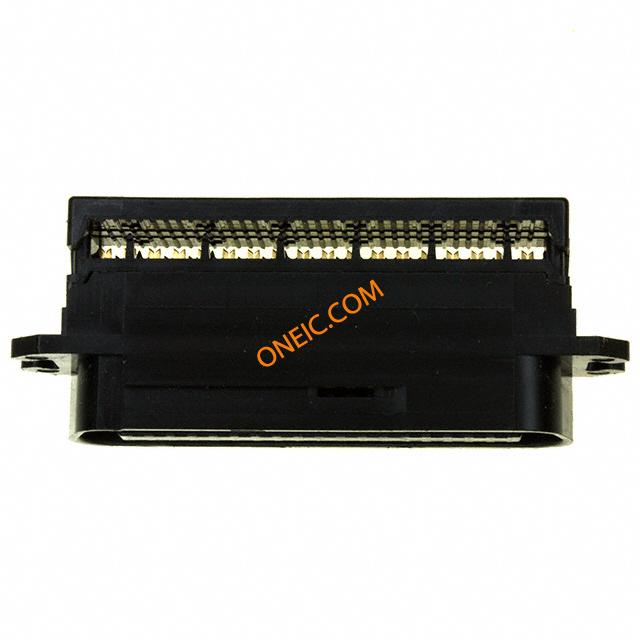

点击放大查看
554084-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn SCSI PL 36 POS 1.27mm IDT RA Cable Mount 36 Terminal 1 Port Tray 2.16 [.085] IDC Connectors 36 PIN CHAMP LATCH PLUG-BAIL Headers & Wire Housings PLUG 36P BAIL LOCK low profile plastic Conn SCSI PL 36 POS 1.27mm IDT RA Cable Mount 36 Terminal 1 Port Tray Search Keywords:self-extinguishing housing, integral latching system, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, discrete wire, AMPHENOL, Centronics PLUG ASSY,36 POS,BAIL LOCK,LPF |
| 分类 |
商业参数
| 交货时间 | 98 Days | 子类别 | Connector SCSI |
| 产品类别 | Connectors | 标准包装数量 | Trays |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
电气参数
| 连接器阻抗 | 释放锁 | ||
机械参数
| 颜色 | Black | 间距 | 1.27 mm |
| 包装方式 | Tray | 屏蔽 | 否 |
| 电缆类型 | Ribbon Cable | 排间距 | 1.27 mm [ .05 in ] |
| 屏蔽类型 | No | 端接方式 | IDT |
| 第二连接器 | With | 安装类型 | Cable Mount |
| 连接器类型 | Plug | 接触镀层 | Gold Flash over Palladium Nickel over Nickel, Gold over Nickel |
| 安装样式 | 低 | 排数 | 2 |
| 外壳材料（壳体） | 热塑性 | 连接器样式 | Center Strip Contacts |
| 插入件材料 | 磷青铜 | 锁定特性 | Bail Lock |
| 外形（宽 x 高） | Low | 触头材料 | Copper Alloy |
| 壳体材料 | Thermoplastic | 包装数量 | Tray |
| 面板安装类型 | With | 线规 - 端部 | 30 – 26 |
| 位数 | 36 | 排距 - 配合 | 1.27 [0.050] |
| 接触镀层厚度 | 30µin (0.76µm) | 线规或范围 - AWG | 30 – 26 |
| 线规或范围 - mm² | .05 – .13 | ||
产品信息
| 类型 | SCSI | 连接器性别 | PL |
| 产品特性 | Bail Lock | 产品子类型 | Connector |
