点击放大查看

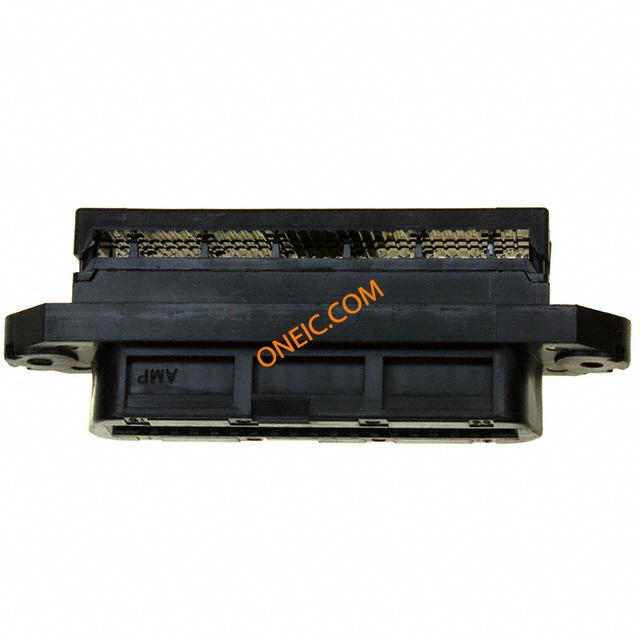

553601-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Wire to Wire F 36 POS 2.16mm Solder ST Thru-Hole Tray 2.16 [.085] IDC Connectors 36 PIN CHAMP LATCH RECEPT-SCREW Conn SCSI RCP 36 POS 1.27mm IDT RA Cable Mount 36 Terminal 1 Port Tray Conn SCSI RCP 36 POS 1.27mm IDT RA Cable Mount 36 Terminal 1 Port Tray Search Keywords:self-extinguishing housing, integral latching system, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, discrete wire, AMPHENOL, Centronics RCPT ASSY,36 POSN,SCR LK,L PF |
| 分类 |
商业参数
| 交货时间 | 98 Days | 其他名称 | A1565 |
| 子类别 | Connector SCSI | 产品类别 | Connectors |
| 标准包装数量 | Trays | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
电气参数
| 连接器阻抗 | 螺钉锁, 螺钉锁 | ||
机械参数
| 颜色 | Black | 间距 | 2.16 mm |
| 包装方式 | Tray | 屏蔽 | 否 |
| 电缆类型 | Ribbon Cable | 排间距 | 1.27 mm [ .05 in ] |
| 屏蔽类型 | No | 端接方式 | Solder |
| 第二连接器 | With | 安装类型 | Panel Mount |
| 连接器类型 | Receptacle | 接触镀层 | Gold Over Palladium Nickel Over Nickel |
| 法兰特征 | Insert, Threaded (4-40) | 安装样式 | 低 |
| 排数 | 2 | 外壳材料（壳体） | 热塑性 |
| 连接器样式 | Outer Shroud Contacts | 插入件材料 | 磷青铜 |
| 锁定特性 | Screwlocks | 外形（宽 x 高） | Low |
| 触头材料 | Copper Alloy | 壳体材料 | Thermoplastic |
| 包装数量 | Tray | 面板安装类型 | With |
| 线规 - 端部 | 28 | 触点数 | 36 POS |
| 位数 | 36 | 排距 - 配合 | 1.27 [0.050] |
| 接触镀层厚度 | 30µin (0.76µm) | 线规或范围 - AWG | 30 – 26 |
| 线规或范围 - mm² | .05 – .13 | ||
产品信息
| 类型 | Wire to Wire | 连接器性别 | F |
| 产品子类型 | Connector | ||
