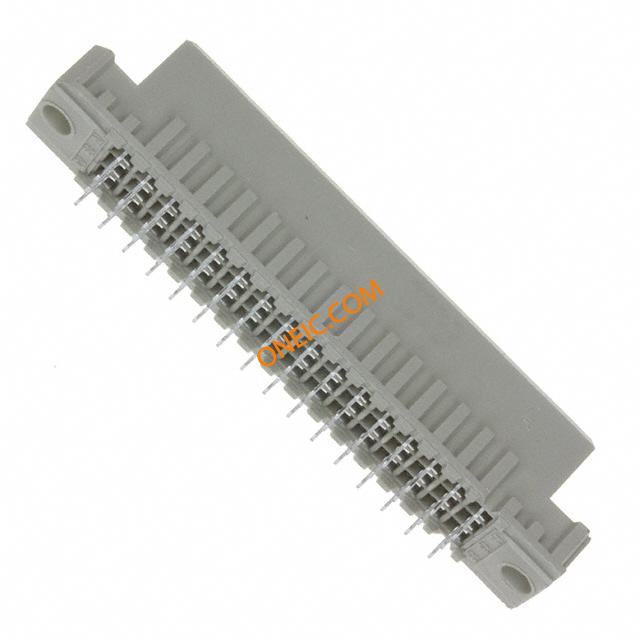

5535091-5

点击放大查看

5535091-5

制造商
TE Connectivity Ltd.
描述Conn DIN 41612 RCP 48 POS 2.54mm Solder ST Thru-Hole Eurocard Type C CONN RECEPT VERT 48 POS DIN PCB DIN 41612 Connectors Type C Receptacle 48 Position Conn DIN 41612 RCP 48 POS 2.54mm Solder ST Thru-Hole Product Highlights:ConnectorReceptacleType = Type C48 PositionsRows Loaded = A, B, CSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 EurocardReceptacle;48;PhosphorBronze;Polyester;0.098in.;Vertical;Gray CONN DIN ASSEMBLY,RECEPTACLE,EUROCARD,T
分类
连接器解决方案背板连接器DIN 41612
对参数有疑问？问 AI 助手

商业参数

其他名称55350915产品类别DIN 41612 Connectors
标准包装数量Bulk工厂包装数量150

合规参数

RoHSLead free / RoHS Compliant标准IEC603-2
无铅定义Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c认证机构CSA,UL
RoHS/ELV合规状态RoHS compliant, ELV compliant材料阻燃等级UL 94V-0

电气参数

接口Eurocard/DIN 41612额定电压250V
最大额定电流1.5 A

机械参数

尺寸Half颜色Gray
间距2.54 mm涂层Without
包装方式Bulk屏蔽否
外壳尺寸C端接方式Solder
触点尺寸0.30 x 0.61 [.012 x .024]触头类型Solder Post
固定类型否引脚长度（针脚）0.098"
引脚直径II尾部长度2.49 mm
安装类型Through Hole行程角度Straight
连接器类型Receptacle, Female Sockets接触镀层Tin
安装样式不带排数3
端子样式.25 x .25 mm [ 0.012 x 0.024 in ]高度（英寸）6.4
插入件材料铜合金触头材料Copper Alloy
壳体材料Polymer总长度2.1"
安装特性With面板安装类型通孔 - 焊接
主要材料Eurocard尺寸/外形标准
先合后断No插针孔直径0.1"
连接器间距2.54端接样式Solder Pin
触点数48接触件尾部长度4.82
位数48触头长度-柱信号（数据）
绝缘材料 - 材质Polymer Thermoplastic, Glass Filled安装孔直径0.11"
接触件表面处理 - 配合锡典型触点布局ACTION PIN
端子柱长度2.49 [0.098]

产品信息

类型DIN 41612等级II
样式1/2 C连接器性别Receptacle
系列5535091制造商全称Eurocard
产品子类型Type C Connectors连接类型Printed Circuit Board
工具类型/特性No加载位置数All

环境参数

温度No级别、等级2
工作温度-55°C ~ 125°C
