5535043-4

点击放大查看

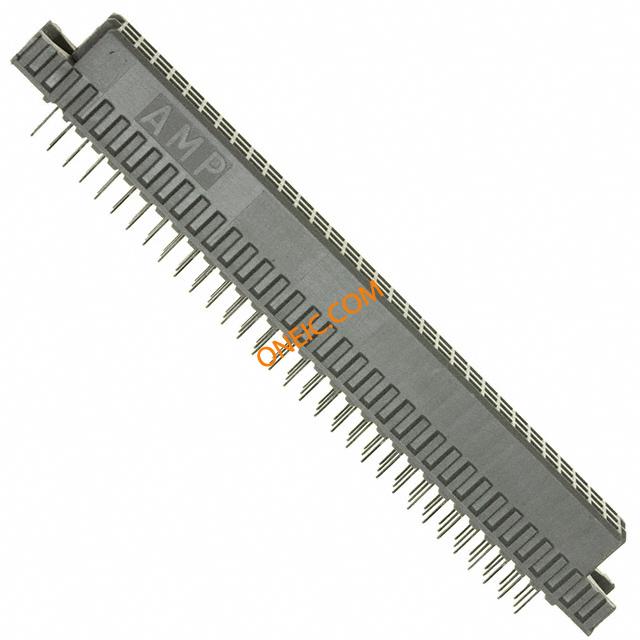

5535043-4

制造商
TE Connectivity Ltd.
描述Conn DIN 41612 RCP 96 POS 2.54mm Solder ST Thru-Hole Eurocard Type C CONN DIN RECEPT 96POS VERT PCB Eurocard DIN41612 C,rcp,3row,vert,96way DIN 41612 Connectors RECPT 96P VERT TYPE C Conn DIN 41612 RCP 96 POS 2.54mm Solder ST Thru-Hole Product Highlights:Type C ConnectorsReceptacleNumber of Positions = 96Rows Loaded = A, B, CTerminate To Printed Circuit BoardSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 Type C 96 Position 2.54 mm Receptacle Through Hole Eurocard Connector TE Connectivity Eurocard 系列 96 路 2.54mm 节距, C型 C2等级, 3 行 a/b/c 直向 DIN 41612 插座, 焊接端接 ASSY,RECEPTACLE,EUROCARD,TYPE
分类
连接器解决方案背板连接器DIN 41612
对参数有疑问？问 AI 助手

商业参数

产品类别DIN 41612 Connectors标准包装数量Bulk
工厂包装数量150

合规参数

RoHSLead free / RoHS Compliant欧盟RoHSCompliant
无铅定义Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder cRoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级UL 94V-0

电气参数

接口Eurocard/DIN 41612额定电压250 V ac
接触电阻15mΩ最大额定电流1.5 A
连接器类型 - 电压输入方柱

机械参数

尺寸Standard颜色Gray
深度10.59 mm间距2.54 mm
高度11.51 mm涂层Without
包装方式Bulk屏蔽否
方向直端接方式Solder
触点尺寸0.30 x 0.61 [.012 x .024]触头类型Solder Post
固定类型否引脚直径II
外壳颜色Gray尾部长度4.57 mm
安装类型Through Hole连接器类型Receptacle, Female Sockets
接触镀层Gold Over Nickel安装样式Through Hole
排数3插入件材料铜合金
触头材料Copper Alloy壳体材料Polymer
总长度94 mm安装特性With
面板安装类型通孔 - 焊接尺寸/外形标准
端接排数焊接先合后断No
连接器间距2.54端接样式Solder Pin
触点数96接触件尾部长度4.6
位数96触头长度-柱信号（数据）
绝缘材料 - 材质Polymer Thermoplastic, Glass Filled安装孔直径带有
接触件表面处理 - 配合锡典型触点布局ACTION PIN
端子柱长度4.57 [0.180]接触镀层厚度1.27
第一连接器安装特征否

产品信息

制造商.5 x .5类型DIN 41612
等级II样式C
连接器性别RCP系列5535043
产品子类型Type C Connectors总线连接FUTUREBUS, MULTIBUS (II), NUBUS, VMEbus, VXIBus
连接类型Printed Circuit Board工具类型/特性No
插座类型与数量A/b/c加载位置数All

环境参数

额定等级C2温度No
级别、等级2工作温度-55°C ~ 125°C

文档与媒体

在线文档
TE.Connect?C=1&PN=535043-4&M=BYPN&LG=1&I=13
在线文档
5535043-4?RQPN=5535043-4
