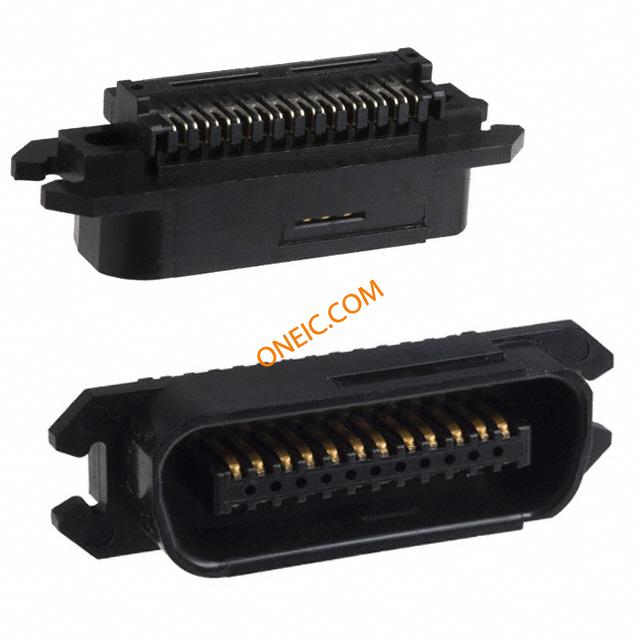

552469-1

点击放大查看

552469-1

制造商
TE Connectivity Ltd.
描述Conn IEEE 488 PL 24 POS 2.16mm IDT RA Cable Mount 24Terminal 1Port Tray 2.16 [.085] IDC Connectors 24 CONTACT,CHAMP PLUG BAIL LOCK Conn IEEE 488 PL 24 POS 2.16mm IDT RA Cable Mount 24 Terminal 1 Port Tray
分类
连接器解决方案圆形连接器工业圆形连接器
对参数有疑问？问 AI 助手

商业参数

交货时间365 Days其他名称A1531
子类别Connector Interface产品类别Connectors
标准包装数量Trays

合规参数

RoHSLead free / RoHS Compliant无铅定义Not relevant for lead free process
RoHS/ELV合规状态RoHS compliant, ELV compliant

机械参数

间距2.16 mm包装方式Tray
厚度Thin电缆类型7 Strand
铜缆类型E屏蔽类型No
端接方式IDC第二连接器With
外壳颜色Yellow安装类型Cable Mount
连接器类型Plug接触镀层Gold (30) over Nickel (50), Gold Flash over Palladium Nickel over Nickel
排数2连接器样式PB
锁定特性Bail Lock外形（宽 x 高）Standard
包装数量Tray面板安装类型Without
绝缘直径1.14 [.045] Max.位数24
接触镀层厚度30µin (0.76µm)线规或范围 - AWG0.09² [28], 0.10² [27], 0.14² [26]

产品信息

类型IEEE 488连接器性别PL
产品特性Bail Lock产品子类型Connector

文档与媒体

在线文档
552312-1?RQPN=552312-1
PDF 文档
552469
