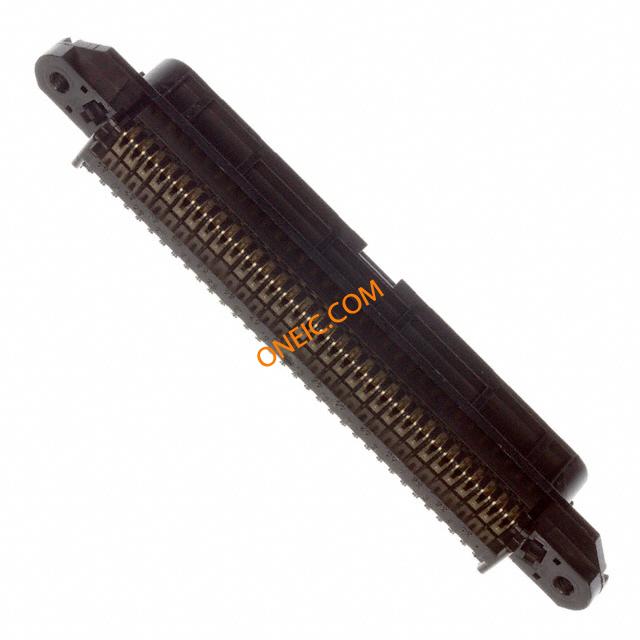

552307-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn IEEE 488 RCP 64 POS 2.16mm IDT RA Cable Mount 64Terminal 1Port Tray 2.16 [.085] IDC Connectors ASSY, RCPT, 64 POS, C SLOT I/O Connectors RECPT 64P BAIL LOCK 22AWG solid/stranded Conn IEEE 488 RCP 64 POS 2.16mm IDT RA Cable Mount 64 Terminal 1 Port Tray Conn IEEE 488 RCP 64 POS 2.16mm IDT RA Cable Mount 64 Terminal 1 Port Tray Product Highlights:ConnectorNumber of Positions = 64Standard ProfileReceptacleNot ShieldedSearch Keywords:self-extinguishing housing, integral latching system, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, discrete wire, AMPHENOL, Centronics MINI D RIBBON CONN, RCPT, 64POS, IDC/IDT CHAMPIDCConnector;ScrewLockReceptacle;64Position TE Connectivity CHAMP-LOK 系列 64路 2.16mm节距 母 IDC 连接器 , 电缆安装 |
| 分类 |
商业参数
| 交货时间 | 98 Days | 子类别 | Connector Interface |
| 产品类别 | Connectors | 标准包装数量 | Trays |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366910 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
机械参数
| 颜色 | Black | 间距 | 2.16 mm |
| 重量 | 0.000001 | 包装方式 | Tray |
| 厚度 | Thick | 电缆类型 | 7 Strand, Solid |
| 导线线规 | 22 | 铜缆类型 | C |
| 屏蔽类型 | No | 端接方式 | IDC |
| 第二连接器 | With | 外壳颜色 | Green |
| 安装类型 | Cable Mount | 行程角度 | Straight |
| 连接器类型 | Receptacle | 接触镀层 | Gold (30) over Nickel (50), Gold Flash over Palladium Nickel over Nickel |
| 法兰特征 | Tapped, Threaded (4-40) | 安装样式 | Cable |
| 排数 | 2 | 连接器样式 | RS |
| 锁定特性 | Bail Lock, Screwlocks | 外形（宽 x 高） | Standard |
| 触头材料 | Copper Alloy | 壳体材料 | Thermoplastic |
| 总长度 | 3.875" | 包装数量 | Tray |
| 面板安装类型 | Without | 主要材料 | Industrial |
| 插针孔直径 | 0.85" | 端接样式 | IDC |
| 触点数 | 64 | 接触件端接 | :IDC / IDT |
| 绝缘直径 | 1.14 [.045] Max. | 位数 | 64 |
| 接触镀层厚度 | 30µin (0.76µm) | 线规或范围 - mm² | 0.40² [22] |
| 第一连接器安装类型 | :Cable | ||
产品信息
| 类型 | IEEE 488 | 连接器性别 | RCP |
| 系列 | :Champ 0.085 | 产品特性 | IDC Connectors |
| 制造商全称 | CHAMP-LOK | 产品子类型 | Connector |
