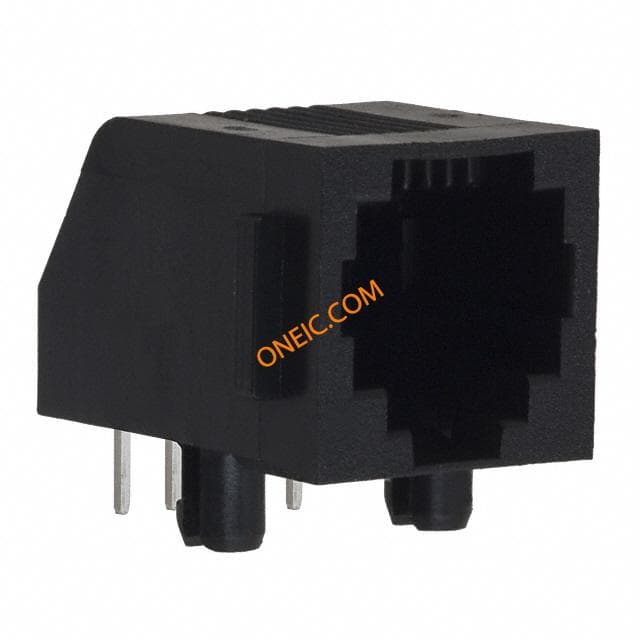

5520250-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn RJ-25 F 6 POS 2.54mm Solder RA Thru-Hole 6 Terminal 1 Port Tray Cat 3 PCB Mounted Jacks - Single Port, Multi-port and Stacked CONN MOD JACK R/A 6P6C Cat 3 RJ25 PCB right angle modular jack Modular Connectors / Ethernet Connectors 6/6 SIDE ENTRY Conn RJ-25 F 6 POS 2.54mm Solder RA Thru-Hole 6 Terminal 1 Port Tray Cat 3 Product Highlights:JackSingle Port Configuration1 x 1 Jack ConfigurationJack Type = RJ25Number of Positions = 6Search Keywords:FCC Part 68, REA PE-76, UL 1863, Communication Circuit Accessories, near end crosstalk (NEXT), EIA/TIA 568A, modular jacks, phone jacks, input/output, box to box, pcb mounted jacks, VAO ModularJack,RJ25,6Position,RightAnglePCBMount,Cat3,Black Jack, 6/6, PCB installation 90°, 5520250-3, TE Connectivity TE Connectivity Cat3 6P6C 直角 通孔安装 RJ25 模块化插孔连接器 MJ,R/A,6P/6C,PNL STOPS,TRAY |
| 分类 |
商业参数
| 零件号别名 | AMP-0-5520250-3 CF8925-000 | 产品类别 | Modular Connectors / Ethernet Connectors |
| 标准包装数量 | Trays | 工厂包装数量 | 608 |
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| 认证机构 | UL,CSA | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| LED | Without | 额定电压 | 150 V |
| 极数 | 6 | 接触电阻 | 30 mohm |
| 最大额定电流 | 1.5 A | 最小供电电压 | 150VAC |
| 连接器类型 - 电压输入 | Cat3 | ||
机械参数
| 尺寸 | 20.8 x 15.9 x 16.1 mm | 颜色 | Black |
| 深度 | 20.83 mm | 间距 | 2.54 mm |
| 高度 | 16.13 mm | 长度 | 20.8 |
| LED颜色 | Does Not Contain LED | 锁定类型 | Standard |
| 包装方式 | Tray | 屏蔽 | Unshielded |
| 壳体颜色 | 黑色 | 钳口开口 | Down |
| 方向 | 90° Angle (Right) | 屏蔽类型 | No |
| 端接方式 | Solder | 引脚长度（针脚） | 3.8 mm [ .15 in ] |
| 外壳颜色 | Black | 反向插孔 | No |
| 安装类型 | Through Hole | 卡扣方向（或“接线片方向”） | Down |
| 行程角度 | Right | 连接器类型 | RJ25 |
| 接触镀层 | Tin over Nickel | 法兰特征 | No |
| 接地类型 | Without | 安装样式 | Thru Hole |
| 排数 | 1 | 电路板厚度 | 1.57 [0.062] |
| 高度（英寸） | 16.13 [0.635] | 插入件材料 | 磷青铜 |
| 外形（宽 x 高） | Standard | 触头材料 | Phosphor Bronze |
| 壳体材料 | Polyester (PBT) | 总长度 | 15.88 mm |
| 包装数量 | Tray | 面板安装类型 | With |
| 主要材料 | Modular | 端接样式 | Solder |
| 触点数 | 6 | 位数 | 6 |
| 电缆未暴露长度 | 3.80 [0.150] | 接触镀层厚度 | 50µin (1.27µm) |
| 每排/每行位置数 | 6P6C | ||
产品信息
| 工作模式 | Single | 类型 | RJ-25 |
| 等级 | Cat3 | 连接器性别 | F |
| 系列 | Single Port Modular Jack | 产品特性 | Board Lock, Panel Stops |
| 钥匙类型 | 否 | 方向 | 直角 |
| 端口样式 | Single | USOC 编码 | RJ25 |
| 性能 | Cat3 | 编码、键控 | No |
| 预装 | 是 | 产品子类型 | Jack |
| 规格说明 | RJ25 | 类别编号 | Cat 3 |
| 线路数量 | 6P6C | 端口数 | 1 |
| 插孔配置 | 1 x 1 | 网络技术 | Cat3 |
| 射频系列/标准 | 5520250 | 其他规格 | 不带 |
| 输出配置 | Through Hole | 性能类别 | Cat 3 |
| 加载位置数 | 6 | 位置/触点数量 | 6p6c (RJ11, RJ12, RJ14, RJ25) |
环境参数
| 额定等级 | Cat3 | 工作温度 | -40°C ~ 85°C |
| 封装热阻 | 1.57 mm [ .062 in ] | ||
