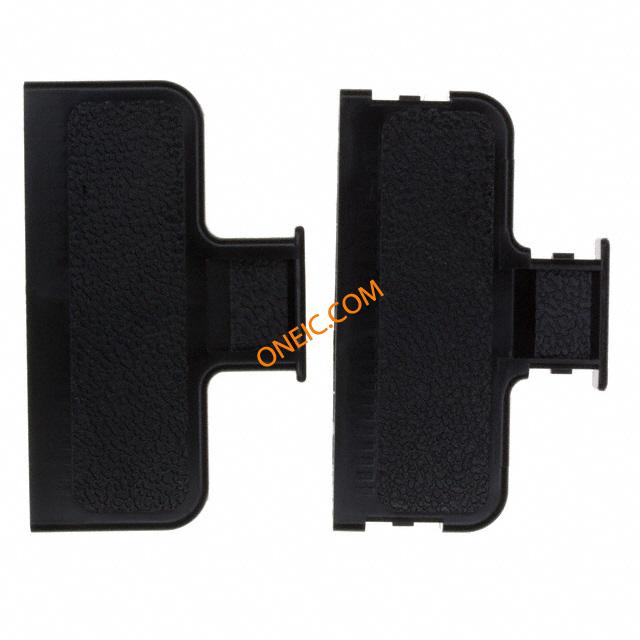

552008-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Connector Accessories Strain Relief Cover Kit Polyphenylene Oxide Black Bulk 2.16 [.085] Accessories and Hardware CONN CHAMP COVER 50 POS 180 DEG Cover Kit 50 way Champ Headers & Wire Housings STRAIN RELIEF CVR 50 180 Snap-On Connector Accessories Strain Relief Cover Kit Polyphenylene Oxide Black Bulk Product Highlights:CoverCover Type = Strain ReliefSnap-On Cover/Strain Relief Retention Method180° Cable Exit AngleNumber of Positions = 50Search Keywords:CHAMP, NIC, Network Interface Cards, PC Cards, ribbon cable, AMPHENOL, Centronics CHAMPIDC180degreeSnap-OnStrainReliefCover;50Position Telco Strain Relief For 50 Pin Conn 180 Deg Cover Black RoHS 1Ea552006-1&552007-1 TE Connectivity 552008 50路 应力释放支架, 使用于 CHAMP 连接器 KIT, COVER, 180, 50 POS |
| 分类 |
商业参数
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
机械参数
| 颜色 | Black | 深度 | 39.5 mm |
| 宽度 | 15.37 mm | 高度 | 15.37 mm |
| 长度 | 64.01mm | 材料（通用） | Polyphenylene Oxide |
| 包装方式 | Bulk | 屏蔽 | Unshielded |
| 出线方向 | 180° | 电缆类型 | Round |
| 外壳样式 | 应变消除 | 安装类型 | Straight |
| 壳体材料 | Polyphenylene Oxide (PPO) | 总长度 | 64 mm |
| 包装数量 | Bulk | 连接器颜色 | Black |
| 位数 | 50 | 电缆外径（最小） | 10.92 â 12.45 [0.430 â 0.490] |
产品信息
| 备注 | Strain relief cover cable diameter range is a guideline. The appropriate strain | 类型 | Strain Relief Cover |
| 系列 | 552008 | 硬件配件 | Strain Relief |
| 盖类型 | Strain Relief | 制造商全称 | AMP |
| 产品子类型 | Cover | 附件类型 | Two Piece Backshell |
| 线路数量 | 50 | 连接方式 | Snap-On |
| 射频系列/标准 | 552008 | 适用产品/相关产品 | CHAMP 连接器 |
