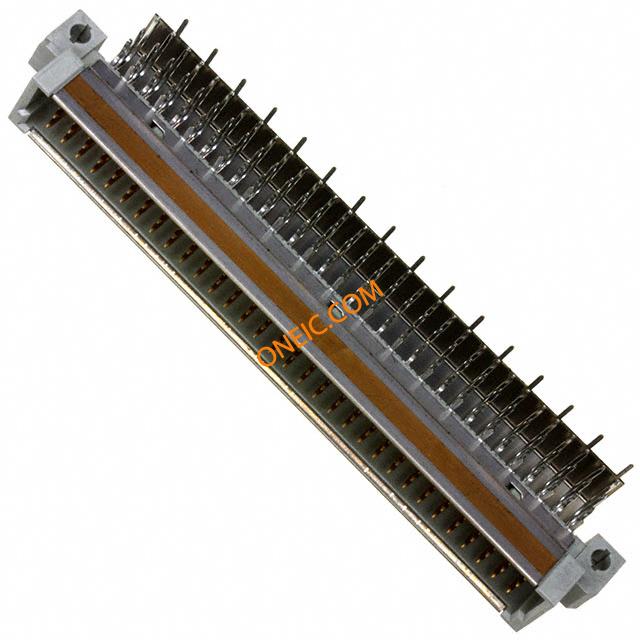

536146-5
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn DIN 41612 PIN 96 POS 2.54mm Solder RA Thru-Hole Eurocard Type C CONN PLUG RTANG 96 POS DIN DIN 41612 Connectors PLUG R/A 96P DIN TYPE C 096 ENHNCD EURO PIN ASSY |
| 分类 |
商业参数
| 产品类别 | DIN 41612 Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 105 | ||
合规参数
| RoHS | Contains lead / RoHS non-compliant | 无铅定义 | Reflow solder capable to 245°C |
| RoHS/ELV合规状态 | ELV compliant, 5 of 6 Compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 接口 | Eurocard/DIN 41612 | ||
机械参数
| 尺寸 | Standard | 颜色 | Gray |
| 间距 | 2.54 mm | 高度 | 12.7 mm [ .49911 in ] |
| 涂层 | Without | 镀层 | Lower, Upper |
| 包装方式 | Bulk | 屏蔽 | 是 |
| 端接方式 | Solder | 触点尺寸 | 0.64 [.025] Sq. |
| 触头类型 | Solder Post | 安装类型 | Through Hole |
| 端子尺寸 | .64 x .64 mm [ .02 x .053 in ] | 连接器类型 | Plug, Male Pins |
| 接触镀层 | Tin-Lead | 触点时序 | 否 |
| 安装样式 | 带有 | 排数 | 3 |
| 插入件材料 | 黄铜 | 屏蔽材料 | Brass |
| 触头材料 | Brass | 壳体材料 | Thermoplastic Glass Reinforced |
| 安装特性 | With | 面板安装类型 | 通孔 - 焊接 |
| 尺寸/外形 | II | 先合后断 | No |
| 端接样式 | 插针 | 触点数 | 96 |
| 接触件尾部长度 | 3.3 | 位数 | 96 |
| 绝缘材料 - 材质 | Polymer Thermoplastic, Glass Filled | 安装孔直径 | 带有 |
| 接触件表面处理 - 配合 | 锡铅 | 端子柱长度 | 3.30 [0.130] |
| 接触镀层厚度 | 2.54 – 5.08 | ||
产品信息
| 类型 | DIN 41612 | 等级 | II |
| 样式 | C | 连接器性别 | Plug |
| 系列 | 536146 | 产品特性 | Ground Plate |
| 导向方式 | 不带 | 产品子类型 | Enhanced Type C Connectors |
| 总线连接 | VME 64 | 连接类型 | Printed Circuit Board |
| 列数 | 32 | 工具类型/特性 | No |
| 加载位置数 | All | ||
环境参数
| 温度 | No | 级别、等级 | 2 |
| 工作温度 | -55°C ~ 125°C | ||
文档与媒体
相关型号
650992-5
te connectivity / amp
