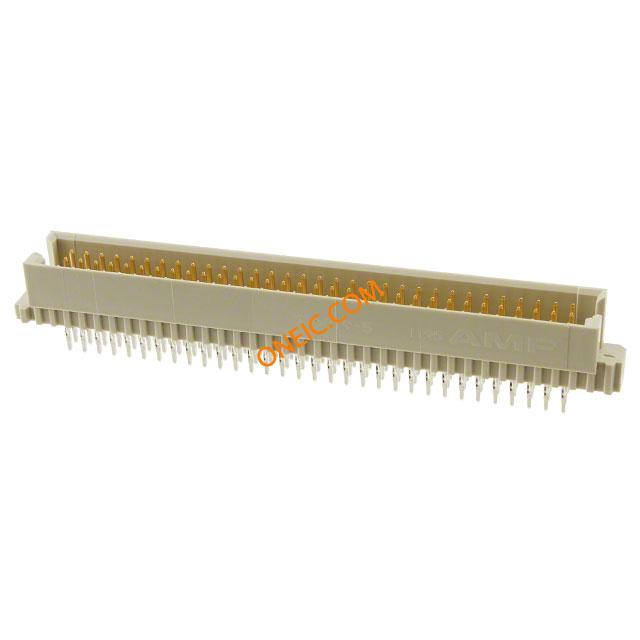

536019-5

制造商	TE Connectivity Ltd.
描述	Conn DIN 41612 PIN 96 POS 2.54mm Solder ST Thru-Hole Eurocard Type R 096 EURO TYP R PIN AP MFBL ASY Standard Card Edge Connectors EUROCARD 96P TYPE R Conn DIN 41612 PIN 96 POS 2.54mm Solder ST Thru-Hole Product Highlights:PlugNumber of Positions = 96PCB Mount Angle = VerticalYes PCB Retention FeatureACTION (Compliant) Press-fit PostsSearch Keywords:parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 DIN 41612 CONNECTOR, PLUG, 96POS 096EUROTYPRPINAPMFBLASY
分类	连接器解决方案背板连接器DIN 41612

对参数有疑问？问 AI 助手

商业参数

产品类别	Standard Card Edge Connectors	标准包装数量	Bulk
工厂包装数量	150

合规参数

RoHS	Contains lead / RoHS non-compliant	海关税号	85366910
无铅定义	Not relevant for lead free process	RoHS/ELV合规状态	RoHS/Not ELV Compliant

机械参数

深度	11.1 mm	间距	2.54 mm
高度	11.51 mm	重量	0
涂层	Without	包装方式	Bulk
端接方式	Solder	触头类型	Compliant Post
外壳颜色	Gray	安装类型	Through Hole
连接器类型	Plug, Male Pins	接触镀层	Gold
安装样式	Through Hole	排数	3
电路板厚度	2.36 [0.093]	触头材料	Phosphor Bronze
壳体材料	Polyester	总长度	95 mm
先合后断	Yes	配接方向	Without
触点数	96	接触件端接	:Through Hole Vertical
位数	96	绝缘材料 - 材质	Polyester, Glass Filled
端子柱长度	6.35 [0.250]

产品信息

类型	DIN 41612	等级	II
样式	R	连接器性别	Pin
系列	536019	导向方式	Without
产品子类型	Plug	加载位置数	All

环境参数

级别、等级

工作温度

-55°C ~ 125°C
