535598-1

制造商	TE Connectivity Ltd.
描述	Conn Socket Strip SKT 14 POS 2.54mm Solder ST Thru-Hole Headers & Wire Housings 14 MODIV VRT DR CE RCPT ASSY .100 inch AMPMODU Receptacles CONN RCPT 14POS .100 DUAL T/H AU .100 inch AMPMODU Receptacles Product Highlights:ReceptacleMod IVNumber of Positions = 14Number of Rows = DualLow ProfileSearch Keywords:AMPMODU, board to board, NIC, Network Interface Cards, PC Cards, MIL-C-55032, MIL-C-24519, pcb connectors, wire to board, signal, 14 MODIV VRT DR CE RCPT ASSY
分类	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

商标名	AMPMODU	标准包装规格	32
产品类别	Headers & Wire Housings	标准包装数量	Rail / Tube

合规参数

RoHS	No	MIL-C-55032	否
标准编号	CSA LR7189, UL E28476	材料阻燃等级	UL 94V-0

电气参数

接触电阻	12	输入电阻	5000
钳位电压	750	额定交流电压	333
最大额定电流	2 A

机械参数

颜色	Black	间距	2.54 mm
高度	5.03 mm [ .198 in ]	包装方式	Tube
壳体颜色	黑色	排间距	0.100" (2.54mm)
端接方式	Solder	触头类型	Female Socket
安装类型	Vertical	连接器类型	Receptacle
接触镀层	Gold Over Nickel	安装样式	Through Hole - Solder
排数	2	压力（PSI）	标准
端子样式	短点	连接器用途	闭合入口, 顶部
插入件材料	磷青铜	触头材料	Phosphor Bronze
壳体材料	Polycyclohexylenedimethylene Terephthalate (PCT)	包装数量	32
面板安装类型	通孔 - 焊接	端接样式	Solder Pin
触点数	14	接触件尾部长度	3.18
位数	14	衬套/护套类型	不带
兼容外壳尺寸（如TM-700等）	与接头配合	端子柱长度	3.18 mm [ .125 in ]
接触镀层厚度	10µin (0.25µm)

产品信息

备注	TE 建议使用接合金或带双层电镀母端配件的双层电镀公端。, 为了获得最小接合柱长度，在最大触点尺寸上增加 .51 [.020]（不包含斜面上的柱引线）。	类型	Socket Strip
连接器性别	SKT	系列	AMPMODU MOD IV
可密封	否	可堆叠	是
产品子类型	Receptacles / Sockets - PCB	装配配置	板支座
加载位置数	All

环境参数

测试温度	否	工作温度	- 65 C to + 105 C
封装热阻	1.57 mm [ .062 in ]

文档与媒体

在线文档

535598-1

在线文档

535598-1?RQPN=535598-1

相关型号

104355-7

te connectivity / amp

Conn Unshrouded Header HDR 14 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HDR BRKWAY 14POS R/A DUAL

详情

5-102618-5

te connectivity / amp

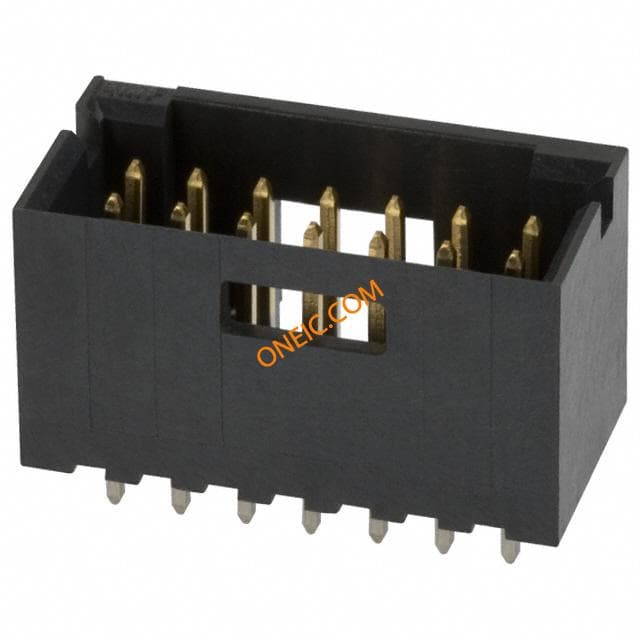

Conn Shrouded Header HDR 14 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER VERT .100 14POS 15AU Headers & Wire Housings HDR 2X07P VRT T/H Conn Shrouded Header HDR 14 POS 2.54mm Solder ST Thru-Hole Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = DualNumber of Positions = 14Mating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 14 MODII HDR DRST SHRD .100CL

¥9.0600

详情

104351-7

te connectivity / amp

Conn Unshrouded Header HDR 14 POS 2.54mm Solder ST Thru-Hole Tube .100 inch AMPMODU Headers CONN HDR BRKWAY 14POS DUAL 15AU Headers & Wire Housings 14 MODII HDR DRST B/A W/HD .100 inch AMPMODU Headers Product Highlights:HeaderHeader Type = StandardNumber of Rows = DualNumber of Positions = 14Mating Post Length = 5.84 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 14 MODII HDR DRST B/A W/HD

¥2.4480

详情

104352-7

te connectivity / amp

Conn Unshrouded Header HDR 14 POS 2.54mm Solder ST Thru-Hole CONN HDR BRKWAY 14POS DUAL TIN Headers & Wire Housings 14 MODII HDR DRST B/A W/HD 14 MODII HDR DRST B/A W/HD 14 MODII HDR DRST B/A W/HD Search Keywords:board to board, AMPMODU, pcb connectors,

¥4.4200

详情

146130-6

te connectivity / amp

Conn Unshrouded Header HDR 14 POS 2.54mm Solder ST SMD .100 inch AMPMODU Headers CONN HDR BRKWAY 14POS DUAL SMD Headers & Wire Housings 14 CKT VERT SMT HDR Conn Unshrouded Header HDR 14 POS 2.54mm Solder ST SMD Product Highlights:HeaderHeader Type = BreakawayNumber of Rows = DualNumber of Positions = 14Mating Post Length = 5.84 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 14 MODII HDR DRST SFMNT B/A

¥6.1200

详情

146270-7

te connectivity / amp

Conn Unshrouded Header HDR 14 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER BRKWAY 14POS DL .100 Headers & Wire Housings 14 MODII HDR DRST B/ 600 .100 inch AMPMODU Headers Product Highlights:HeaderHeader Type = BreakawayNumber of Rows = DualNumber of Positions = 14Mating Post Length = 5.84 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 14 MODII HDR DRST B/A 100 W/HD

¥2.3800

详情

146308-7

te connectivity / amp

Conn Unshrouded Header HDR 14 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HEADER BRKWAY 14POS DL R/A

详情

828430-7

te connectivity / amp

Conn Unshrouded Header HDR 14 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER BRKWY 14PS STR DL AU Headers & Wire Housings 2X 7P MOD2 STIFTLEI 2X 7P AMPMODU II STIFTLEI

¥5.6018

详情

103164-5

te connectivity / amp

Conn Shrouded Header HDR 14 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HEADER .100 14POS R/A SHRD Headers & Wire Housings 14 MODII HDR DRRA 3/ 240 .100 inch AMPMODU Headers Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = DualNumber of Positions = 14Mating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 14 MODII HDR DRRA 3/4SHRD .100

¥7.3440

详情

5-87579-4

te connectivity / amp

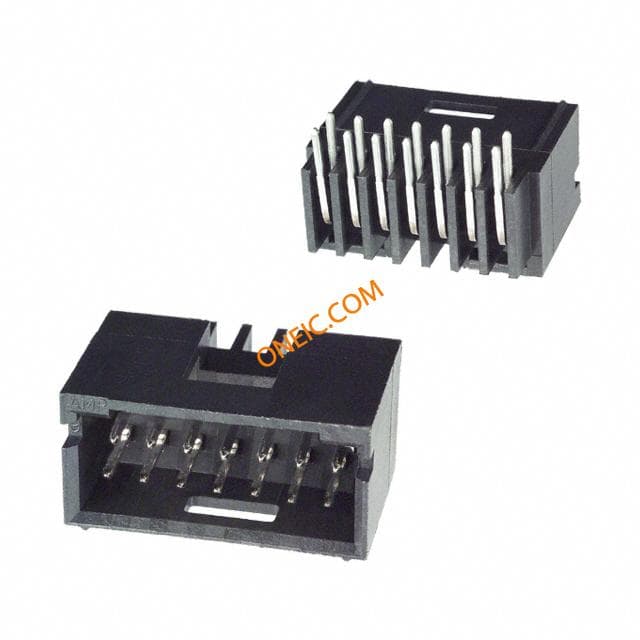

Conn Shrouded Header HDR 14 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HEADER RA .100 14POS TIN Headers & Wire Housings 14P HDR DRRA SHRD .100 inch AMPMODU Headers Product Highlights:ConnectorConnector Type = Header - PinHeader Type = Shrouded14 PositionsMating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 14 MODII HDR DRRA SHRD LF
