535585-7

制造商	TE Connectivity Ltd.
描述	Conn Socket Strip RCP 14 POS 2.54mm Solder ST Thru-Hole Gang of Tubes Headers & Wire Housings 14 MODIV VRT DR CE RCPT ASSY .100 inch AMPMODU Receptacles CONN RCPT 14POS DUAL VERT .100 14 MODIV VRT DR CE RCPT ASSY 14 MODIV VRT DR CE RCPT ASSY Search Keywords:AMPMODU, board to board, NIC, Network Interface Cards, PC Cards, MIL-C-55032, MIL-C-24519, pcb connectors, wire to board, signal,
分类	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

商标名	AMPMODU	标准包装规格	32
产品类别	Headers & Wire Housings	标准包装数量	Rail / Tube

合规参数

RoHS	No	MIL-C-55032	否
标准编号	CSA LR7189, UL E28476	材料阻燃等级	UL 94V-0

电气参数

接触电阻	12	输入电阻	5000
钳位电压	750	额定交流电压	333
最大额定电流	2 A

机械参数

颜色	Black	间距	2.54 mm
高度	5.03 mm [ .198 in ]	包装方式	Tube
壳体颜色	黑色	排间距	0.100" (2.54mm)
端接方式	Solder	触头类型	Female Socket
安装类型	Vertical	连接器类型	Receptacle
接触镀层	Tin-Lead Over Nickel	安装样式	Through Hole - Solder
排数	2	压力（PSI）	标准
端子样式	短点	连接器用途	闭合入口, 顶部
插入件材料	磷青铜	触头材料	Phosphor Bronze
壳体材料	Polycyclohexylenedimethylene Terephthalate (PCT)	包装数量	32
面板安装类型	通孔 - 焊接	端接样式	Solder
触点数	14	接触件尾部长度	3.18
位数	14	衬套/护套类型	不带
兼容外壳尺寸（如TM-700等）	与接头配合	典型触点布局	同轴
端子柱长度	3.18 mm [ .125 in ]	接触镀层厚度	100µin (2.54µm)

产品信息

备注	TE 建议使用接合金或带双层电镀母端配件的双层电镀公端。, 为了获得最小接合柱长度，在最大触点尺寸上增加 .51 [.020]（不包含斜面上的柱引线）。	类型	Socket Strip
连接器性别	RCP	系列	AMPMODU MOD IV
可密封	否	可堆叠	是
产品子类型	Receptacles / Sockets - PCB	装配配置	板支座
加载位置数	All

环境参数

测试温度	否	工作温度	- 65 C to + 105 C
封装热阻	1.57 mm [ .062 in ]

文档与媒体

在线文档

535585-7

在线文档

535585-7?RQPN=535585-7

相关型号

104355-7

te connectivity / amp

Conn Unshrouded Header HDR 14 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HDR BRKWAY 14POS R/A DUAL

详情

5-102618-5

te connectivity / amp

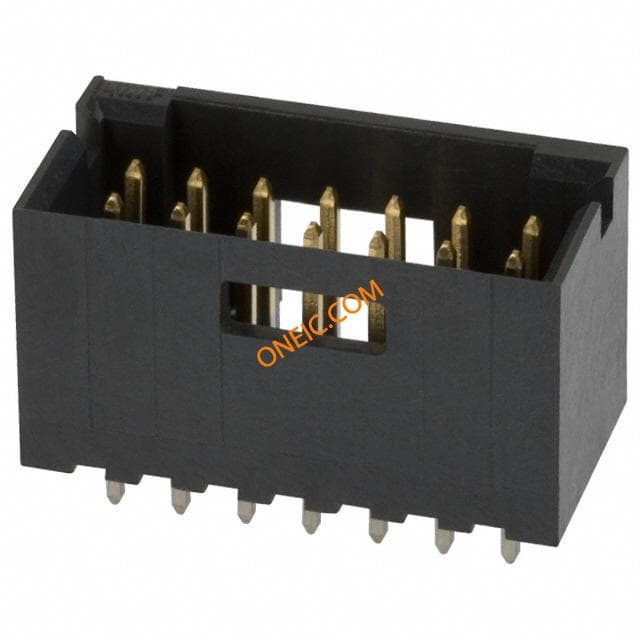

Conn Shrouded Header HDR 14 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER VERT .100 14POS 15AU Headers & Wire Housings HDR 2X07P VRT T/H Conn Shrouded Header HDR 14 POS 2.54mm Solder ST Thru-Hole Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = DualNumber of Positions = 14Mating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 14 MODII HDR DRST SHRD .100CL

¥9.0600

详情

104351-7

te connectivity / amp

Conn Unshrouded Header HDR 14 POS 2.54mm Solder ST Thru-Hole Tube .100 inch AMPMODU Headers CONN HDR BRKWAY 14POS DUAL 15AU Headers & Wire Housings 14 MODII HDR DRST B/A W/HD .100 inch AMPMODU Headers Product Highlights:HeaderHeader Type = StandardNumber of Rows = DualNumber of Positions = 14Mating Post Length = 5.84 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 14 MODII HDR DRST B/A W/HD

¥2.5920

详情

104352-7

te connectivity / amp

Conn Unshrouded Header HDR 14 POS 2.54mm Solder ST Thru-Hole CONN HDR BRKWAY 14POS DUAL TIN Headers & Wire Housings 14 MODII HDR DRST B/A W/HD 14 MODII HDR DRST B/A W/HD 14 MODII HDR DRST B/A W/HD Search Keywords:board to board, AMPMODU, pcb connectors,

¥4.6800

详情

146130-6

te connectivity / amp

Conn Unshrouded Header HDR 14 POS 2.54mm Solder ST SMD .100 inch AMPMODU Headers CONN HDR BRKWAY 14POS DUAL SMD Headers & Wire Housings 14 CKT VERT SMT HDR Conn Unshrouded Header HDR 14 POS 2.54mm Solder ST SMD Product Highlights:HeaderHeader Type = BreakawayNumber of Rows = DualNumber of Positions = 14Mating Post Length = 5.84 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 14 MODII HDR DRST SFMNT B/A

¥6.4800

详情

146270-7

te connectivity / amp

Conn Unshrouded Header HDR 14 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER BRKWAY 14POS DL .100 Headers & Wire Housings 14 MODII HDR DRST B/ 600 .100 inch AMPMODU Headers Product Highlights:HeaderHeader Type = BreakawayNumber of Rows = DualNumber of Positions = 14Mating Post Length = 5.84 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 14 MODII HDR DRST B/A 100 W/HD

¥2.5200

详情

146308-7

te connectivity / amp

Conn Unshrouded Header HDR 14 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HEADER BRKWAY 14POS DL R/A

详情

828430-7

te connectivity / amp

Conn Unshrouded Header HDR 14 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER BRKWY 14PS STR DL AU Headers & Wire Housings 2X 7P MOD2 STIFTLEI 2X 7P AMPMODU II STIFTLEI

¥5.9314

详情

103164-5

te connectivity / amp

Conn Shrouded Header HDR 14 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HEADER .100 14POS R/A SHRD Headers & Wire Housings 14 MODII HDR DRRA 3/ 240 .100 inch AMPMODU Headers Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = DualNumber of Positions = 14Mating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 14 MODII HDR DRRA 3/4SHRD .100

¥7.7760

详情

5-87579-4

te connectivity / amp

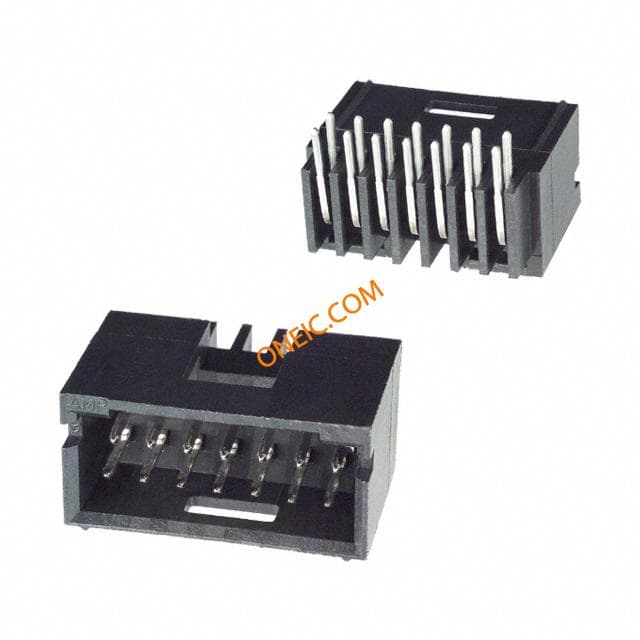

Conn Shrouded Header HDR 14 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HEADER RA .100 14POS TIN Headers & Wire Housings 14P HDR DRRA SHRD .100 inch AMPMODU Headers Product Highlights:ConnectorConnector Type = Header - PinHeader Type = Shrouded14 PositionsMating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 14 MODII HDR DRRA SHRD LF
