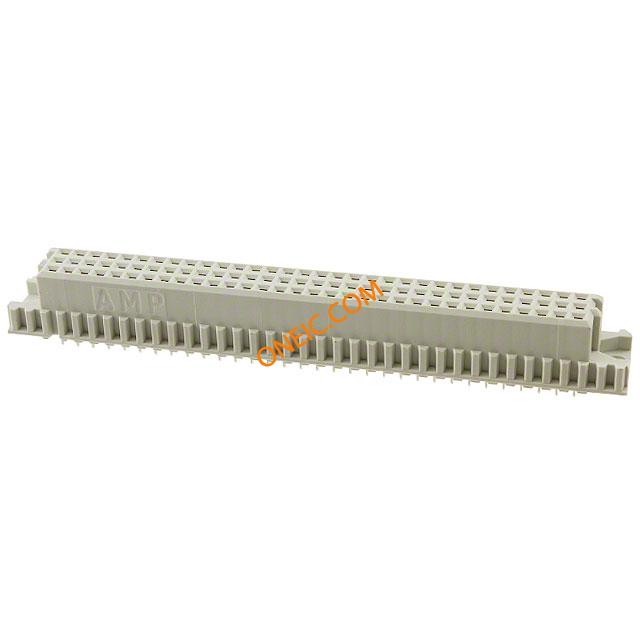

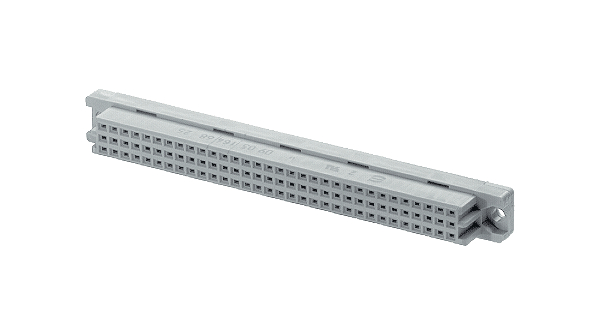

535089-5

点击放大查看

535089-5

制造商
TE Connectivity Ltd.
描述Conn DIN 41612 RCP 96 POS 2.54mm Solder ST Thru-Hole Eurocard Type C CONN RECEPT VERT 96 POS DIN PCB DIN 41612 Connectors Type C Receptacle 96 Position Conn DIN 41612 RCP 96 POS 2.54mm Solder ST Thru-Hole Product Highlights:Type C ConnectorsReceptacleNumber of Positions = 96Rows Loaded = A, B, CTerminate To Printed Circuit BoardSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 Multipole socket C 96-p DIN 41612 2 3 x 32 a + b + c, 535089-5, TE Connectivity 096 EURO TYPE C RECEPT ST ASSY
分类
连接器解决方案背板连接器DIN 41612

商业参数

产品类别DIN 41612 Connectors标准包装数量Bulk
工厂包装数量150

合规参数

RoHSLead free / RoHS Compliant无铅定义Wave solder capable to 240°C
RoHS/ELV合规状态ELV compliant, 5 of 6 Compliant材料阻燃等级UL 94V-0

电气参数

接口Eurocard/DIN 41612测试电压1
极数3 x 32接触电阻15 mohm
最大额定电流1.5 A绝缘电阻≥10 GOhm
最小供电电压250VAC

机械参数

尺寸Standard颜色Gray
深度10.59 mm间距2.54 mm
高度11.51 mm涂层Without
包装方式Bulk屏蔽否
端接方式Solder触点尺寸0.30 x 0.61 [.012 x .024]
触头类型Solder Post外壳颜色Gray
尾部长度2.49 mm安装类型Through Hole
端子尺寸.25 x .25 mm [ .25 x .25 in ]连接器类型Receptacle, Female Sockets
接触镀层Gold Over Nickel触点时序否
安装样式Through Hole排数3
插入件材料磷青铜触头材料Phosphor Bronze
壳体材料Polyester总长度93.95 mm
安装特性With面板安装类型通孔 - 焊接
尺寸/外形标准先合后断No
端接样式Solder Pin触点数96
接触件尾部长度2.49位数96
触头长度-柱信号（数据）绝缘材料 - 材质Polyester, Glass Filled
安装孔直径带有接触件表面处理 - 配合锡铅
端子柱长度2.49 [0.098]接触镀层厚度2.54 – 3.08 µm [ 99.9998 – 121.2596 µin ]

产品信息

类型DIN 41612等级II
样式C连接器性别Receptacle
系列535089导向方式不带
产品子类型Type C Connectors总线连接FUTUREBUS, MULTIBUS (II), NUBUS, VMEbus, VXIBus
连接类型Printed Circuit Board连接方式Soldering-in, 2,5 mm
列数32工具类型/特性No
加载位置数All

环境参数

额定等级2温度No
级别、等级2工作温度-55°C ~ 125°C

文档与媒体

在线文档
535089-5?RQPN=535089-5

相关型号

5650470-5

5650470-5

te connectivity / amp

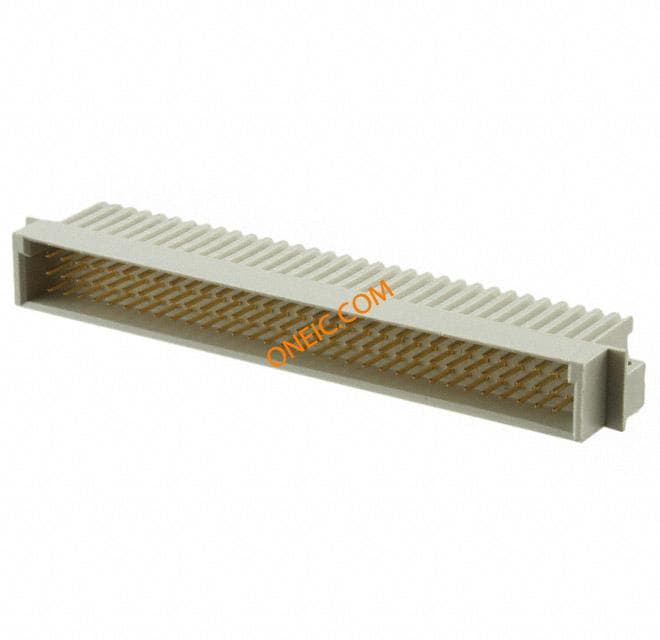

Conn DIN 41612 PIN 96 POS 2.54mm Solder ST Thru-Hole Eurocard Type R CONN DIN PLUG 96POS VERT PCB Plug 96 way pin DIN41612 Eurocard DIN 41612 Connectors PLUG 96P VERT TYPE R Conn DIN 41612 PIN 96 POS 2.54mm Solder ST Thru-Hole Product Highlights:PlugNumber of Positions = 96PCB Mount Angle = VerticalNo PCB Retention FeaturePost Type = Solder PostSearch Keywords:parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 DIN 41612 PCB CONNECTOR, PLUG, 96WAY EUROCARDTypeRVerticalPlug,96Position,SolderPost,DINLevelII,Gray CONN DIN ASSY,PIN,EUROCARD,TYPE R,LEAD-
