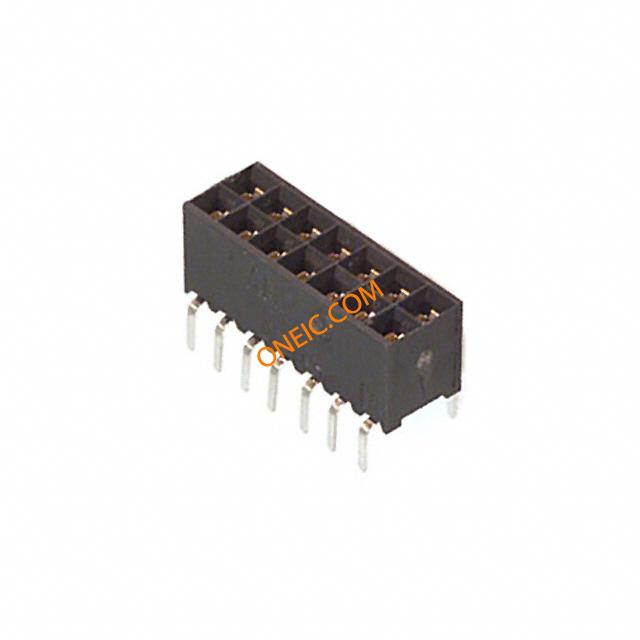

534267-1

制造商	TE Connectivity Ltd.
描述	Conn Socket Strip SKT 14 POS 2.54mm Solder ST Thru-Hole Gang of Tubes .100 inch AMPMODU Receptacles CONN RECEPT 14POS .100 VERT DUAL Headers & Wire Housings 14P MODIV RECEPTACLE PCB Conn Socket Strip SKT 14 POS 2.54mm Solder ST Thru-Hole Gang of Tubes Product Highlights:ReceptacleMod IVNumber of Positions = 14Number of Rows = DualLow ProfileSearch Keywords:AMPMODU, board to board, NIC, Network Interface Cards, PC Cards, MIL-C-55032, MIL-C-24519, pcb connectors, wire to board, signal, 14 MODIV VRT DR OE 100/125
分类	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

商标名	AMPMODU	产品类别	Headers & Wire Housings
标准包装数量	Rail / Tube	工厂包装数量	32

合规参数

RoHS	Contains lead / RoHS non-compliant	MIL-C-55032	否
标准编号	CSA LR7189, UL E28476	材料阻燃等级	UL 94V-0

电气参数

接触电阻	12	输入电阻	5000
钳位电压	750	额定交流电压	333
最大额定电流	2 A

机械参数

颜色	Black	间距	2.54 mm
高度	6.2 mm [ .245 in ]	包装方式	Tube
壳体颜色	黑色	排间距	0.100" (2.54mm)
端接方式	Solder	安装类型	Through Hole
连接器类型	Receptacle, Bottom or Top Entry	接触镀层	Gold Over Nickel
安装样式	低	排数	2
压力（PSI）	标准	端子样式	短点
连接器用途	底部或顶部	插入件材料	磷青铜
触头材料	Phosphor Bronze	壳体材料	Thermoplastic
包装数量	32	面板安装类型	通孔 - 焊接
端接样式	Through Hole	板面高度	0.265" (6.73mm)
触点数	14	接触件尾部长度	3.17
位数	14	衬套/护套类型	不带
兼容外壳尺寸（如TM-700等）	与接头配合	端子柱长度	2.54 mm [ .1 in ]
接触镀层厚度	30µin (0.76µm)

产品信息

备注	TE 建议使用接合金或带双层电镀母端配件的双层电镀公端。, 为了获得最小接合柱长度，在最大触点尺寸上增加 .51 [.020]（不包含斜面上的柱引线）。	类型	Socket Strip
连接器性别	SKT	系列	AMPMODU MOD IV
可密封	否	可堆叠	是
产品子类型	Receptacles / Sockets - PCB	装配配置	板支座
加载位置数	All

环境参数

测试温度	否	工作温度	- 65 C to + 105 C
封装热阻	1.57 mm [ .062 in ]

文档与媒体

在线文档

534267-1?RQPN=534267-1
