点击放大查看

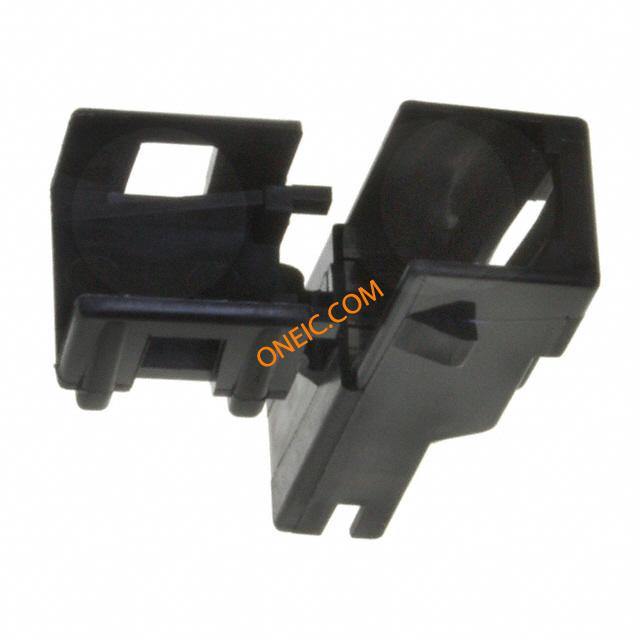

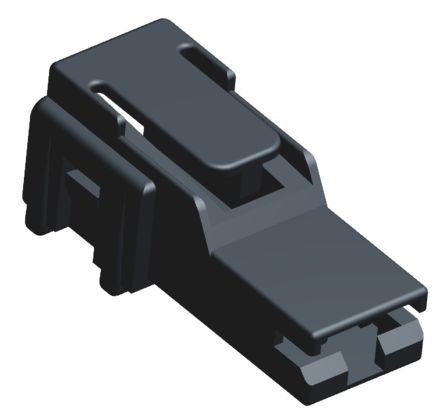

520961-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 1 POS Crimp ST Positive Lock Connectors CONN RECEPT POS LOCK MRK I .250 Headers & Wire Housings .25 POS LOCK HSG Conn Housing RCP 1 POS Crimp ST Product Highlights:Receptacle HousingTab Fit = 6.35 mmLine = Mark IReceptacle Style = StraightNumber of Positions = 1Search Keywords:UL-310, terminals and splices, Quick Connect/Disconnect Tabs and Receptacles, Lighting Interconnection Products, DIN 46244, Series 110, RECEPTACLE HOUSING, POSITIVE LOCK CONN CONNECTOR,PLUG,RECEPTACLE,6.35MM,1POS TE Connectivity 250 系列 1 触点 黑色 尼龙 压接端子外壳 PL 250 HOUSING BLACK NYLON |
| 分类 |
商业参数
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 2500 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366910 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-2 | ||
电气参数
| 开关功能 | Unlatched | ||
机械参数
| 颜色 | Black | 深度 | 25.9 mm |
| 间距 | 2.54 mm | 重量 | 0 |
| 材料（通用） | Nylon 6/6 | 按键颜色 | None |
| 插片宽度 | 6.35 [.250] | 导线线规 | 10-20 AWG |
| 外壳颜色 | Black | 安装类型 | Straight |
| 端子尺寸 | 0.250" (6.35mm) | 端子类型 | Quick Connect, Disconnect |
| 安装样式 | Free Hanging | 排数 | 1 |
| 连接器样式 | Straight | 壳体材料 | Nylon |
| 总长度 | Mark I | 端接样式 | Crimp |
| 第一触头极性 | Socket (Female) | 触点数 | 1 |
| 位数 | 1 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 样式 | Housing | 连接器性别 | RCP |
| 系列 | 250 | 编码、键控 | No |
| 产品子类型 | Receptacle Housing | 适用产品/相关产品 | 0.250" (6.35mm) x 0.032" (0.81mm) Quick Connects |
