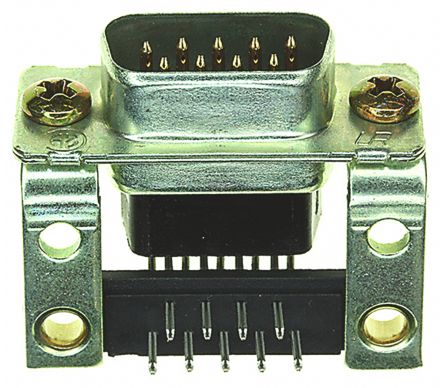

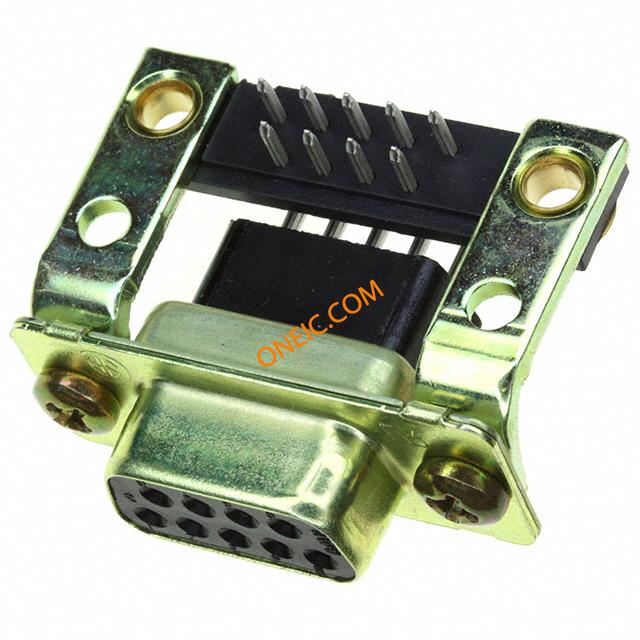

5205866-1

点击放大查看

5205866-1

制造商
TE Connectivity Ltd.
描述Conn D-Subminiature SKT 9 POS 2.74mm Solder RA Thru-Hole 9 Terminal 1 Port D-Sub Standard Connectors 09P RCPT RA/MS STD Standard Board Mount Connectors CONN D-SUB RECPT R/A 9POS GOLD Standard Board Mount Connectors Product Highlights:Number of Positions = 9ReceptaclePCB Mount Angle = Right AngleProduct Series = HDP-20Without Mating Connector LockSearch Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub TE Connectivity AMPLIMITE HDP-20 系列 2.743mm 节距 9 路 直角 通孔安装 PCB D-sub 连接器 插座 09 RCPT RA/MS STD
分类
连接器解决方案D-Sub连接器
对参数有疑问？问 AI 助手

商业参数

标准包装规格140产品类别D-Sub Standard Connectors
标准包装数量Trays工厂包装数量140

合规参数

RoHSRoHS Compliant无铅定义Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c
RoHS/ELV合规状态RoHS compliant, ELV compliant材料阻燃等级UL 94V-0

电气参数

接地方式Without额定电压125V
最大额定电流6A

机械参数

颜色Black深度0.494in
间距2.74 mm宽度1.033in
长度1.213in密封型No
外形尺寸(长x宽)1包装方式Tray
壳体颜色黑色引脚样式直角
外壳尺寸1方向直角
端接方式Solder触头类型Signal
柱间距.108外壳表面处理锌
第二连接器Without触点形状Square
安装类型Through Hole外壳镀层Zinc
连接器类型Receptacle, Female Sockets接触镀层Gold
法兰特征Mating Side; Standard Screws (4-40)接地类型Without
安装样式Through Hole排数2
外壳材料（壳体）Steel电路板厚度0.062 [1.57]
连接器样式D-Sub插入件材料磷青铜
外形（宽 x 高）Standard触头材料Phosphor Bronze
壳体材料Thermoplastic安装特性安装孔
包装数量140面板安装类型Without
尺寸/外形0.64 [.025]接地凹痕Without
外形尺寸 长x宽x高13.84 [.545]端接样式Through Hole
连接器颜色None外径.64 mm [ .025 in ]
触点数9位数9
外壳尺寸-插件Front Metal Shell安装孔直径3.05 [.120]
外壳材料及表面处理Steel, Yellow Chromate Plated Zinc端子柱长度3.18 [0.125]
接触镀层厚度Flash外壳与棱镜材料否
外壳尺寸，连接器布局1 (DE, E)

产品信息

类型D-Subminiature连接器性别SKT
系列HDP-20产品特性Mounting Brackets
可密封否制造商全称AMP
预装是产品子类型连接器
基础产品编号5205866

环境参数

工作温度-55°C ~ 105°C封装热阻2.36 mm [ .093 in ]

文档与媒体

在线文档
5205866-1?RQPN=5205866-1
