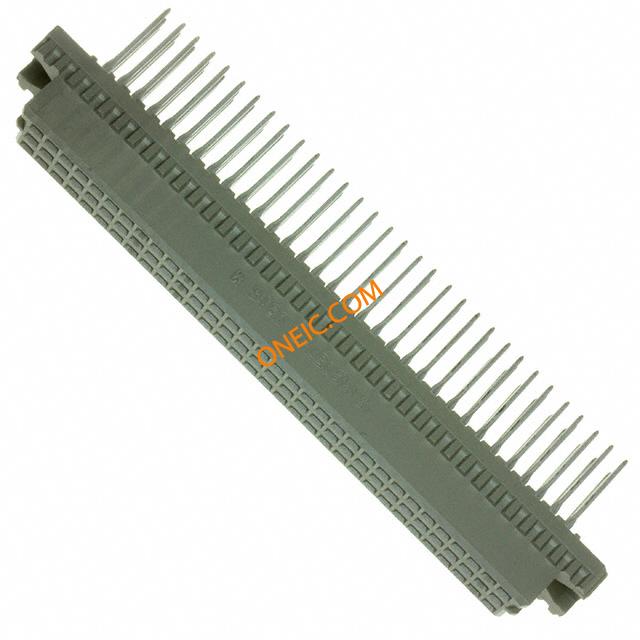

5148057-5

点击放大查看

5148057-5

制造商
TE Connectivity Ltd.
描述Conn DIN 41612 RCP 96 POS 2.54mm Press Fit ST Thru-Hole Eurocard Type C CONN DIN RECEPT 96POS VERT PCB 2.54mm,rcpt,DIN41612,vertical,PCB,96way DIN 41612 Connectors C REC VRT ABCX32C L2 PFIT Conn DIN 41612 RCP 96 POS 2.54mm Press Fit ST Thru-Hole Product Highlights:Type C ConnectorsReceptacleNumber of Positions = 96Rows Loaded = A, B, CTerminate To Printed Circuit BoardSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 SOCKET, DIN41612, STRAIGHT, C, 96WAY TE Connectivity Eurocard 系列 96 路 2.54mm 节距, C型 C2等级, 3 行 a/b/c 直向 DIN 41612 插座, 按式端接 ASSY,RECEPTACLE,EUROCARD,TYPE C,LEAD-FRE
分类
连接器解决方案背板连接器DIN 41612
对参数有疑问？问 AI 助手

商业参数

产品类别DIN 41612 Connectors标准包装数量Bulk
工厂包装数量150

合规参数

RoHSLead free / RoHS Compliant海关税号85369010
无铅定义Not relevant for lead free process认证机构:CSA, UL
RoHS/ELV合规状态RoHS compliant, ELV compliant材料阻燃等级UL 94V-0

电气参数

最大额定电流1.5 A

机械参数

尺寸Standard颜色Gray
间距2.54 mm重量0.002
涂层Without材料（通用）:Polyester
包装方式Bulk端接方式Press Fit
触点尺寸0.64 [.025] Sq.触头类型Compliant Post
引脚间距:2.54mm引脚长度（针脚）:13mm
尾部长度13 mm安装类型Through Hole
连接器类型Receptacle, Female Sockets接触镀层Tin
排数3电路板厚度2.36 [0.093]
触头材料Copper Alloy壳体材料Polymer
安装特性With先合后断No
端接样式Press Fit连接器颜色:Grey
触点数96接触件端接:Through Hole Vertical
位数96绝缘材料 - 材质Polymer Thermoplastic, Glass Filled
端子柱长度13.00 [0.512]

产品信息

类型DIN 41612等级II
样式C连接器性别Receptacle
系列5148057CAD图纸3D CAD Model
产品子类型Type C Connectors总线连接FUTUREBUS, MULTIBUS (II), NUBUS, VMEbus, VXIBus
连接类型Printed Circuit Board测量范围:std
工具类型/特性Yes加载位置数All

环境参数

温度No级别、等级2
工作温度-55°C ~ 125°C
