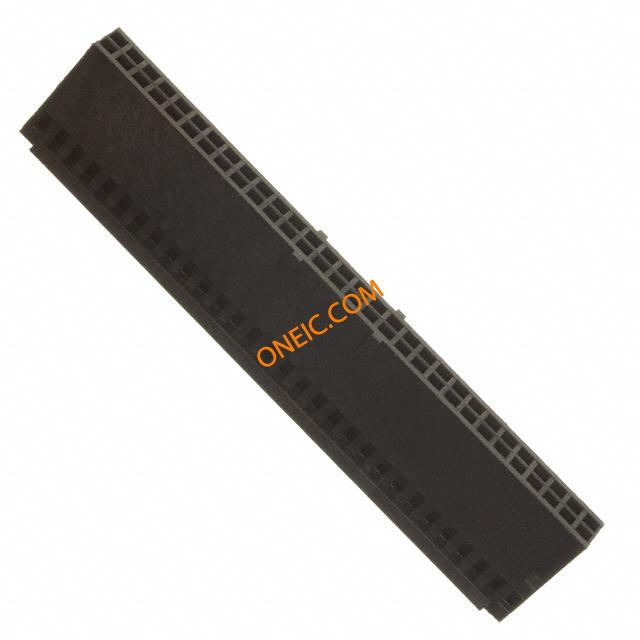

点击放大查看

5-87631-1

制造商	TE Connectivity Ltd.
描述	Conn Housing RCP 60 POS 2.54mm Crimp ST Cable Mount CONN HOUSING 60POS .100 POL DUAL Headers & Wire Housings 60P .1 MODIV HOUSNG Conn Housing RCP 60 POS 2.54mm Crimp ST Cable Mount Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 60 MODIV HSG COMP DR .100 POL
分类	连接器解决方案矩形连接器高可靠性矩形连接器

对参数有疑问？问 AI 助手

商业参数

商标名	AMPMODU	产品类别	Headers & Wire Housings
标准包装数量	Bulk	工厂包装数量	1

合规参数

RoHS	Lead free / RoHS Compliant	标准编号	CSA LR7189, UL E28476
材料阻燃等级	UL 94V-0

电气参数

额定电压	250 V	开关功能	Detent Latching
供电电压	250 VAC	接触电阻	12 mΩ
输入电阻	5000	连接器阻抗	压接
最大额定电流	3 A	保护额定电压（VPR）	750 V

机械参数

颜色	Black	间距	0.100" (2.54mm)
高度	6.1 mm [ .24 in ]	长度	76.2 mm [ 3 in ]
锁定类型	带有	包装方式	Bulk
壳体颜色	黑色	排间距	0.100" (2.54mm)
触头类型	Female Socket	安装类型	Free Hanging (In-Line)
连接器类型	Receptacle	紧固类型	Locking Ramp
排数	2	插入件材料	铍铜
触头材料	Phosphor Bronze	壳体材料	Nylon
包装数量	1	端接样式	Crimp
第一触头极性	Socket (Female)	触点数	60
接触件端接	Crimp	位数	60
兼容外壳尺寸（如TM-700等）	公端	安装孔直径	带有
静电放电屏蔽	不带

产品信息

备注	Contacts Not Provided	系列	AMPMODU MOD IV
产品子类型	Receptacles / Sockets - Housings	抽头/步进数	2
其他规格	否	应用细节	Board to Board

环境参数

测试温度

标准部件 - 非辉光导线

工作温度

- 65 C to + 105 C

文档与媒体

在线文档

5-87631-1?RQPN=5-87631-1
