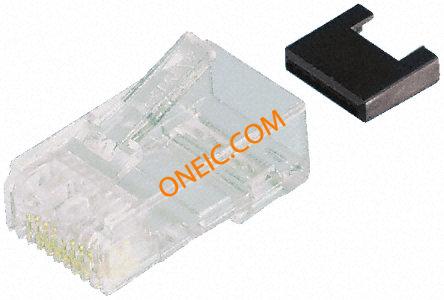

点击放大查看
5-558530-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Modular Plug PL 8 POS 1.02mm Crimp ST Cable Mount 8 Terminal 1 Port Carton Cat 5e Modular Plugs and Accessories CONN MOD PLUG 8P8C UNSHIELDED High performance Cat5 RJ45 data plug Modular Connectors / Ethernet Connectors 8/8 ROUND CABLE CAT5 Conn Modular Plug PL 8 POS 1.02mm Crimp ST Cable Mount 8 Terminal 1 Port Carton Cat 5e Product Highlights:PlugNumber of Positions = 8Not Shielded8 Contacts LoadedCable Style = Round StrandedSearch Keywords:FCC Part 68, EIA/TIA 568A, mass termination, NIC, Network Interface Cards, PC Cards, input/output, box to box, PLUG, CAT5E RJ45, 8WAY C HighperformanceCat5RJ45dataplug Plug; RJ45; PIN:8; Cat:5e; with conductor guide; gold plated; IDC Modular UTP Plug RJ45 |
| 分类 |
商业参数
| 产品类别 | Modular Connectors / Ethernet Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 500 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
电气参数
| 以太网 | Cat 5e | 额定电压 | 150 V |
| 最大额定电流 | 1.5 A | 连接器类型 - 电压输入 | :Cat5e |
机械参数
| 颜色 | Translucent - Clear | 深度 | 22.74mm |
| 间距 | 1.02 mm | 长度 | 0.895" (22.74mm) |
| 重量 | 0.028 | 包装方式 | Bulk |
| 屏蔽 | Unshielded | 电缆类型 | Round Cable, Stranded Wires |
| 导线线规 | 24 AWG | 方向 | Straight |
| 端接方式 | Crimp | 安装类型 | Cable Mount |
| 行程角度 | Straight | 电缆直径 | 5.59mm |
| 连接器类型 | Plug | 接触镀层 | Gold |
| 安装样式 | for cable | 触头材料 | Phosphor Bronze |
| 壳体材料 | Polycarbonate (PC) | 包装数量 | 1 |
| 主要材料 | Modular | 连接器 - 电缆 | plug |
| 触点数 | :8 | 接触件端接 | :IDC / IDT |
| 位数 | :8 | 接触镀层厚度 | 50µin (1.27µm) |
| 触点材料 - 镀层 | gold plated | 第一连接器安装特征 | 8p8c |
产品信息
| SPG | 1 | 类型 | Modular Plug |
| 连接器性别 | PL | 系列 | :558530 |
| USOC 编码 | RJ45 | 规格说明 | RJ45 |
| 端口数 | 1 | 单元数量 | 1 |
| 性能类别 | Cat 5 | 位置/触点数量 | 8p8c (RJ45, Ethernet) |
环境参数
| 额定等级 | Cat5e | ||
