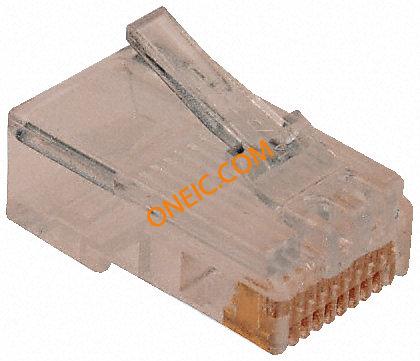

5-557963-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Modular Plug PL 10 POS 1.02mm Crimp ST Cable Mount 10 Terminal 1 Port Box Cat 3 CONN MOD PLUG 10P10C UNSHIELDED AMP 10/10 way data plug Modular Connectors / Ethernet Connectors 10POS/RND CBL 500PC Conn Modular Plug PL 10 POS 1.02mm Crimp ST Cable Mount 10 Terminal 1 Port Box Cat 3 Product Highlights:PlugNumber of Positions = 10Not Shielded10 Contacts LoadedCable Style = Round StrandedSearch Keywords:FCC Part 68, EIA/TIA 568A, mass termination, NIC, Network Interface Cards, PC Cards, input/output, box to box, PLUG, MODULAR AMP10/10waydataplug Plug; RJ50; PIN:10; Cat:5; gold plated; Pin layout:10p10c; 4.88mm |
| 分类 |
商业参数
| 产品类别 | Modular Connectors / Ethernet Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 500 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366990 |
| 材料阻燃等级 | UL 94 V-2 | ||
电气参数
| 以太网 | Cat 5 | 连接器类型 - 电压输入 | :Cat3 |
机械参数
| 颜色 | Translucent - Clear | 深度 | 22.74mm |
| 间距 | 1.02 mm | 宽度 | 10.85mm |
| 高度 | 10.85 mm | 长度 | 0.895" (22.74mm) |
| 重量 | 1.525 | 包装方式 | Bulk |
| 屏蔽 | Unshielded | 电缆类型 | Round Cable, Stranded Wires |
| 导线线规 | 24-28 AWG | 方向 | Straight |
| 端接方式 | Crimp | 外壳颜色 | Clear |
| 安装类型 | Cable Mount | 行程角度 | Straight |
| 电缆直径 | 4.88mm | 连接器类型 | Modular Plug |
| 接触镀层 | Gold | 安装样式 | Cable |
| 触头材料 | Phosphor Bronze | 壳体材料 | Polycarbonate (PC) |
| 总长度 | 11.79 mm | 包装数量 | 1 |
| 主要材料 | Modular | 连接器 - 电缆 | plug |
| 触点数 | 10 | 接触件端接 | :- |
| 位数 | :10 | 接触镀层厚度 | 50µin (1.27µm) |
| 触点材料 - 镀层 | gold plated | 第一连接器安装特征 | 10p10c |
产品信息
| SPG | 1 | 类型 | Modular Plug |
| 连接器性别 | PL | 系列 | :- |
| 规格说明 | RJ50 | 类别编号 | Cat 3 |
| 端口数 | 1 Port | 单元数量 | 1 |
| 射频系列/标准 | 557963 | 性能类别 | Cat 3 |
| 加载位置数 | 10 | 位置/触点数量 | 10p10c (RJ50) |
环境参数
| 额定等级 | Cat5 | 工作温度 | -40C to 60C |
文档与媒体
相关型号
354711-6
te connectivity / amp
Connector Accessories 10 POS Modular Plug Terminator Hand Tools SINGLE TERM - 10 POS SINGLE TERM - 10 POS
558527-1
te connectivity / amp
Connector Accessories Modular Plug Strain Relief Without Retention Hole Brass Tin Finish Modular Plugs and Accessories CONN ACCY STRAIN RELIEF Modular Connectors / Ethernet Connectors STRAIN RELIEF Connector Accessories Modular Plug Strain Relief Without Retention Hole Brass Tin Finish Product Highlights:Strain ReliefSearch Keywords:FCC Part 68, EIA/TIA 568A, mass termination, NIC, Network Interface Cards, PC Cards, input/output, box to box, STRAIN RELIEF, BRASS
58560-1
te connectivity / amp
Hand Tool Assembly And Die Assembly Crimpers 10P CRIMP TOOL FOR MOD PLUGS TOOL CRIMP MODULAR 10 POS W/DIE
5558065-1
te connectivity / amp

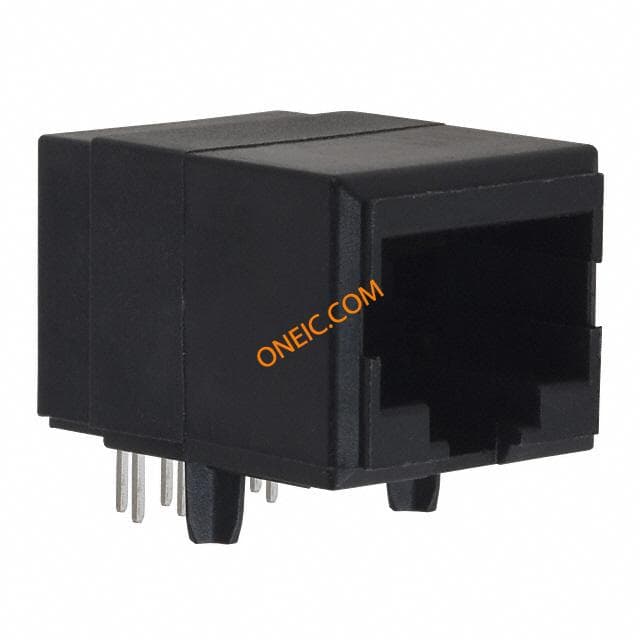

Conn RJ-45 F 10 POS 2.54mm Solder RA Thru-Hole 10 Terminal 1 Port Tray Cat 3 PCB Mounted Jacks - Single Port, Multi-port and Stacked CONN MOD JACK R/A 10P10C Cat 3 RJ45 PCB right angle modular jack Modular Connectors / Ethernet Connectors 1 PORT 10P Conn RJ-45 F 10 POS 2.54mm Solder RA Thru-Hole 10 Terminal 1 Port Tray Cat 3 Product Highlights:JackSingle Port Configuration1 x 1 Jack ConfigurationJack Type = RJ45Number of Positions = 10Search Keywords:FCC Part 68, REA PE-76, UL 1863, Communication Circuit Accessories, near end crosstalk (NEXT), EIA/TIA 568A, modular jacks, phone jacks, input/output, box to box, pcb mounted jacks, VAO CAT3 RJ45 MODULAR JACK, 10POS, 1 PORT ModJack;RightAngle;10Position;Cat3 MJ ASSY,10POS,R/A,LPF
