点击放大查看

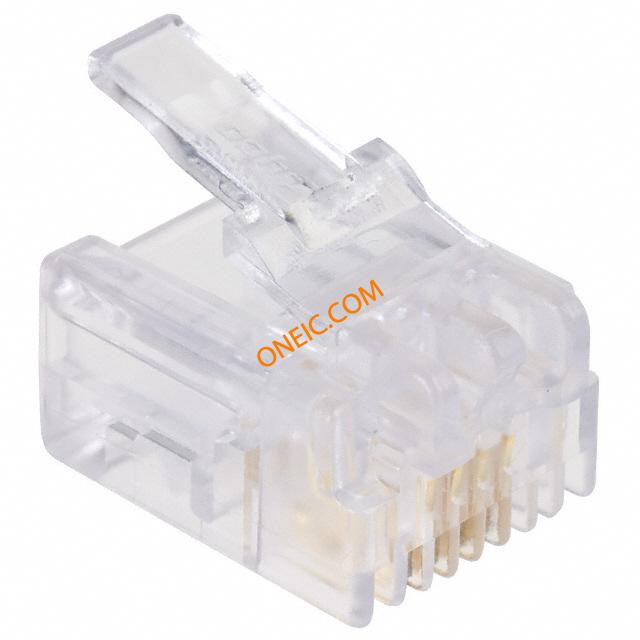

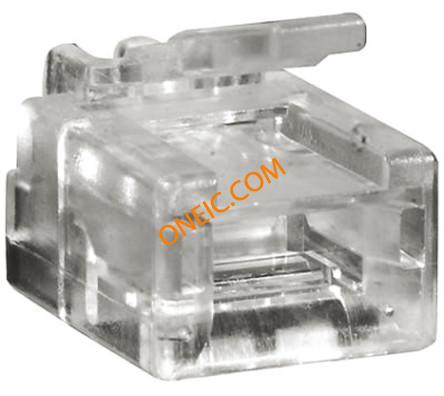

5-556384-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Telephone/Telecom PL 6 POS 1.02mm Crimp ST Cable Mount 6 Terminal 1 Port Box Cat 3 Modular Plugs and Accessories CONN MOD PLUG 6P4C UNSHIELDED Cat 3 RJ11 6/4 modular plug, solid wire Plug; 6; 4; Polycarbonate; UL 94V-2; Phosphor Bronze; Flat Oval Solid Modular Connectors / Ethernet Connectors 6/4 24-26 AWG Conn Telephone/Telecom PL 6 POS 1.02mm Crimp ST Cable Mount 6 Terminal 1 Port Box Cat 3 Product Highlights:PlugNumber of Positions = 6Not Shielded4 Contacts LoadedCable Style = Flat Oval SolidSearch Keywords:FCC Part 68, EIA/TIA 568A, mass termination, NIC, Network Interface Cards, PC Cards, input/output, box to box, CAT3 MODULAR PLUG, 6POS, 1 PORT Plug;6;4;Polycarbonate;UL94V-2;PhosphorBronze;FlatOvalSolid 6P4C Unshielded 24 - 26 AWG Modular Plug For Flat Oval Solid Cable |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 产品类别 | Modular Connectors / Ethernet Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366910 |
| 认证机构 | UL,CSA | 材料阻燃等级 | UL94V-2 |
电气参数
| 额定电压 | 150VAC | 最大额定电流 | 1.5A |
| 连接器类型 - 电压输入 | Cat3 | ||
机械参数
| 颜色 | Translucent - Clear | 间距 | 1.02 mm |
| 长度 | 0.530" (13.46mm) | 重量 | 0.00068 |
| 包装方式 | Bulk | 屏蔽 | Unshielded |
| 电缆类型 | Flat Oval or Round Cable, Solid Wires | 导线线规 | 24-26 AWG |
| 方向 | Straight | 端接方式 | Crimp |
| 安装类型 | Cable Mount | 行程角度 | Straight |
| 连接器类型 | Modular Plug | 接触镀层 | Gold |
| 触头材料 | Phosphor Bronze | 壳体材料 | Polycarbonate (PC) |
| 主要材料 | Modular | 触点数 | :4 |
| 接触件端接 | :IDC / IDT | 位数 | :6 |
| 接触镀层厚度 | 50µin (1.27µm) | 中心导体直径 | 0.029to0.039in. |
| 每排/每行位置数 | 6C | ||
产品信息
| 类型 | Telephone/Telecom | 连接器性别 | PL |
| 系列 | :- | USOC 编码 | RJ12 |
| 性能 | Cat3 | 规格说明 | RJ45 |
| 端口数 | 1 | 性能类别 | Cat 3 |
| 位置/触点数量 | 6p4c (RJ11, RJ14) | ||
环境参数
| 额定等级 | Cat3 | ||
