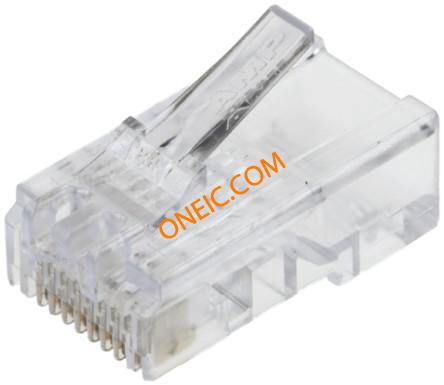

5-554720-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Modular Plug PL 8 POS 1.02mm Crimp ST Cable Mount 8 Terminal 1 Port Box Cat 3 Modular Plugs and Accessories CONN MOD PLUG 8P8C UNSHIELDED AMP 8/8 way RJ45 data plug Modular Connectors / Ethernet Connectors 8/8 OVAL / SOLID 24-26AWG Conn Modular Plug PL 8 POS 1.02mm Crimp ST Cable Mount 8 Terminal 1 Port Box Cat 3 Product Highlights:PlugNumber of Positions = 8Not Shielded8 Contacts LoadedCable Style = Flat Oval SolidSearch Keywords:FCC Part 68, EIA/TIA 568A, mass termination, NIC, Network Interface Cards, PC Cards, input/output, box to box, PLUG, MODULAR, 8WAY AMP;MODULARPLUG;8POSITIONROUNDCABLESOLIDWIRE Plug; RJ45; PIN:8; Cat:5; gold plated; Pin layout:8p8c; 24÷26AWG Modular UTP Plug RJ45 |
| 分类 |
商业参数
| 零件号别名 | 5-0554720-3 AMP-5-0554720-3 D81383-000 | 产品类别 | Modular Connectors / Ethernet Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366990 |
| 认证机构 | UL,CSA | 材料阻燃等级 | UL94V-2 |
电气参数
| 以太网 | Cat 5 | 额定电压 | 150 V |
| 最大额定电流 | 1.5 A | 连接器类型 - 电压输入 | :Cat3 |
机械参数
| 颜色 | Translucent - Clear | 深度 | 21.59mm |
| 间距 | 1.02 mm | 高度 | 9.25 mm |
| 长度 | 0.850" (21.59mm) | 重量 | 0.028 |
| 包装方式 | Bulk | 屏蔽 | Unshielded |
| 电缆类型 | Flat Oval Cable, Solid Wires | 导线线规 | 24-26 AWG |
| 方向 | Straight | 端接方式 | Crimp |
| 外壳颜色 | Clear | 安装类型 | Cable Mount |
| 行程角度 | Straight | 连接器类型 | Plug |
| 接触镀层 | Gold | 安装样式 | Cable |
| 触头材料 | Phosphor Bronze | 壳体材料 | Polycarbonate (PC) |
| 总长度 | 11.79 mm | 包装数量 | 1 |
| 主要材料 | Modular | 连接器 - 电缆 | plug |
| 触点数 | 8 POS | 接触件端接 | :IDC / IDT |
| 位数 | :8 | 接触镀层厚度 | 50µin (1.27µm) |
| 触点材料 - 镀层 | gold plated | 第一连接器安装特征 | 8p8c |
产品信息
| SPG | 1 | 类型 | Modular Plug |
| 连接器性别 | PL | 系列 | :554720 |
| USOC 编码 | RJ45 | 性能 | Cat3 |
| 规格说明 | RJ45 | 类别编号 | Cat 3 |
| 端口数 | 1 | 单元数量 | 1 |
| 射频系列/标准 | 554720 | 性能类别 | Cat 3 |
| 加载位置数 | 8 | 位置/触点数量 | 8p8c (RJ45, Ethernet) |
环境参数
| 额定等级 | Cat5 | 工作温度 | -40C to 60C |
文档与媒体
