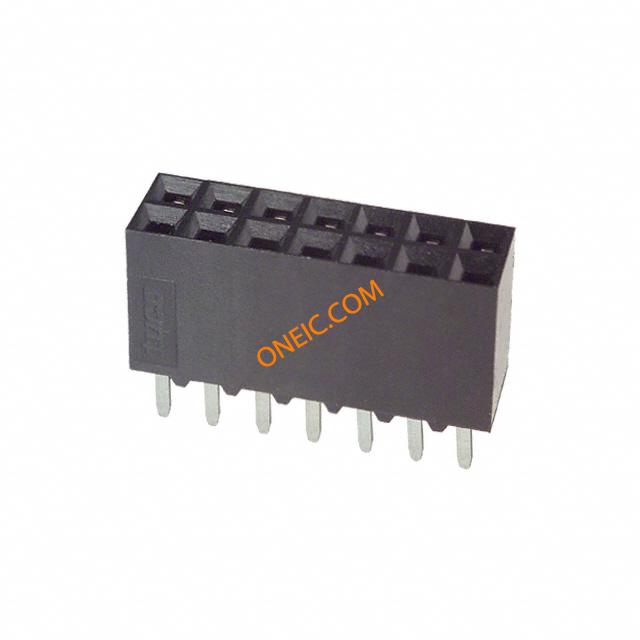

5-534206-7

制造商	TE Connectivity Ltd.
描述	Conn Socket Strip SKT 14 POS 2.54mm Solder ST Thru-Hole Gang of Tubes .100 inch AMPMODU Receptacles CONN RECEPT 14POS .100 VERT DUAL Headers & Wire Housings REC 2X07P VRT T/H Conn Socket Strip SKT 14 POS 2.54mm Solder ST Thru-Hole Gang of Tubes Product Highlights:ReceptacleMod IINumber of Positions = 14Number of Rows = DualStandard ProfileSearch Keywords:AMPMODU, board to board, NIC, Network Interface Cards, PC Cards, MIL-C-55032, MIL-C-24519, pcb connectors, wire to board, signal, BOARD-BOARD CONNECTOR RECEPTACLE, 14WAY, 2ROW VERTIIDRCERECASY,14MODIIVRTDRCE100/115 14 MODII VRT DR CE 100/115
分类	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

商标名	AMPMODU	产品类别	Headers & Wire Housings
标准包装数量	Rail / Tube	工厂包装数量	32

合规参数

RoHS

Lead free / RoHS Compliant

海关税号

85366930

电气参数

接触电阻

12 mohm

最大额定电流

2 A

机械参数

颜色	Black	深度	5.03 mm
间距	2.54 mm	高度	8.12 mm
重量	0	包装方式	Tube
排间距	0.100" (2.54mm)	端接方式	Solder
触头类型	Female Socket	外壳颜色	Black
安装类型	Through Hole	连接器类型	Receptacle
接触镀层	Gold Over Nickel	安装样式	Through Hole
排数	2	触头材料	Phosphor Bronze
壳体材料	Polycyclohexylenedimethylene Terephthalate (PCT)	总长度	17.78 mm
主要材料	InterconnectSystem	端接样式	Through Hole
触点数	14	接触件端接	:Through Hole Vertical
位数	14	接触镀层厚度	30µin (0.76µm)

产品信息

类型	Socket Strip	连接器性别	SKT
系列	AMPMODU MOD II	制造商全称	AMPMODU/ModIiSeries
产品子类型	Receptacles / Sockets - PCB	加载位置数	All

环境参数

工作温度

- 65 C to + 105 C

文档与媒体

在线文档

5-534206-7?RQPN=5-534206-7
