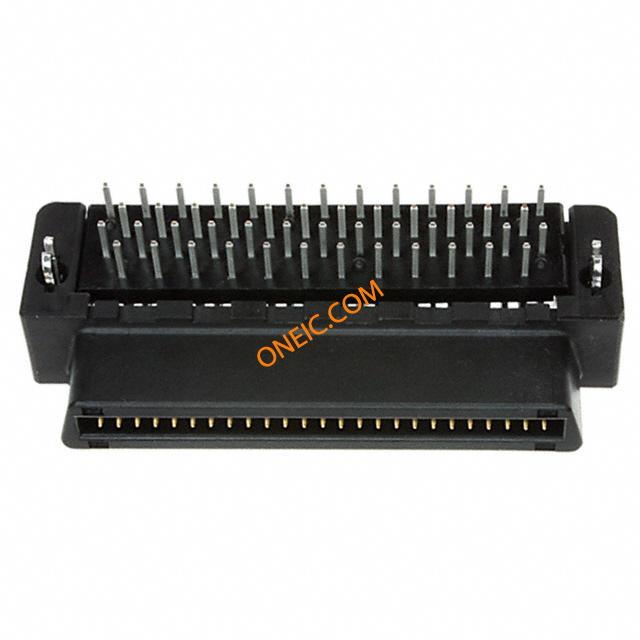

5-5175474-6
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn SCSI RCP 50 POS 2.54mm Solder RA Thru-Hole 100 Terminal 1 Port 1.27 [.050] Series I, HD, FH and J Connectors CONN RECEPT .050 50POS R/A 30AU Board to Board & Mezzanine Connectors R.A. RECPT 50P Series I standard Conn SCSI RCP 50 POS 2.54mm Solder RA Thru-Hole 100 Terminal 1 Port Product Highlights:ConnectorReceptacleNumber of Positions = 501.27 mm CenterlineStandard Profile |
| 分类 |
商业参数
| 其他名称 | A33468 | 产品类别 | Board to Board & Mezzanine Connectors |
| 标准包装数量 | Trays | 工厂包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 开关功能 | Without | ||
机械参数
| 颜色 | Black | 间距 | 2.54 mm |
| 密封型 | Without | 包装方式 | Tray |
| 端接方式 | Solder | 安装类型 | Through Hole |
| 连接器类型 | High Density (HD) | 接触镀层 | Gold (30) |
| 尖端材料（笔尖） | Brass | 安装样式 | Thru Hole |
| 排数 | 2 | 壳体镀层 | Tin over Nickel |
| 连接器样式 | Outer Shroud Contacts | 外形（宽 x 高） | Standard |
| 触头材料 | Phosphor Bronze | 壳体材料 | Nylon |
| 总长度 | 1.27 [0.050] | 触点数 | 50 |
| 位数 | 50 | 端子柱长度 | 3.10 [0.122] |
| 接触镀层厚度 | 30µin (0.76µm) | ||
产品信息
| 类型 | SCSI | 连接器性别 | RCP |
| 系列 | CHAMP .050 I, AMP | 产品特性 | Board Lock |
| 主要用途 | Board Lock | 制造商全称 | AMP |
| 产品子类型 | Connector | 输出配置 | Through Hole, Right Angle |
| 适用产品/相关产品 | Board To Board Applications | ||
环境参数
| 温度额定值 | Standard | ||
文档与媒体
相关型号
1734100-5
te connectivity / amp
Conn SCSI PL 50 POS 2.54mm Solder ST Thru-Hole 50 Terminal 1 Port 1.27 [.050] Series I, HD, FH and J Connectors CONN PLUG 50POS VERT .050 T/H Board to Board & Mezzanine Connectors 050 SER I 50P PLUG ASSY Conn SCSI PL 50 POS 2.54mm Solder ST Thru-Hole 50 Terminal 1 Port Product Highlights:ConnectorApplies To Printed Circuit BoardHousing Gender = Plug50 Positions1.27 mm Centerline Champ050 series,50pos,Au over PdNi

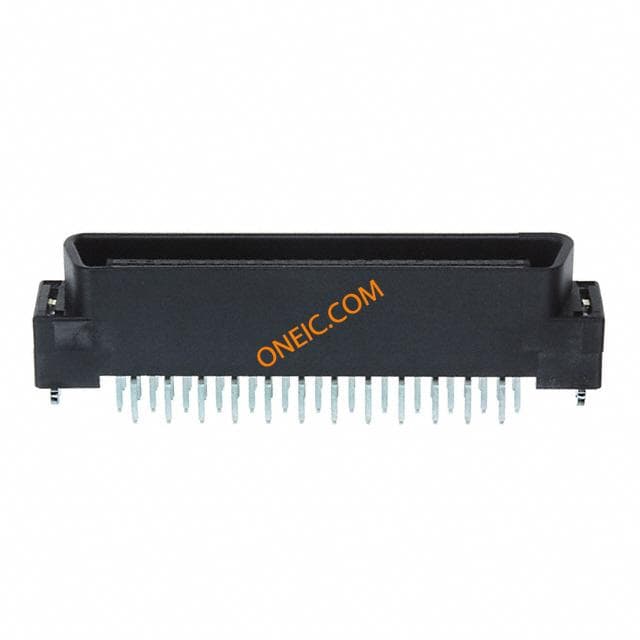

5-5175473-6
