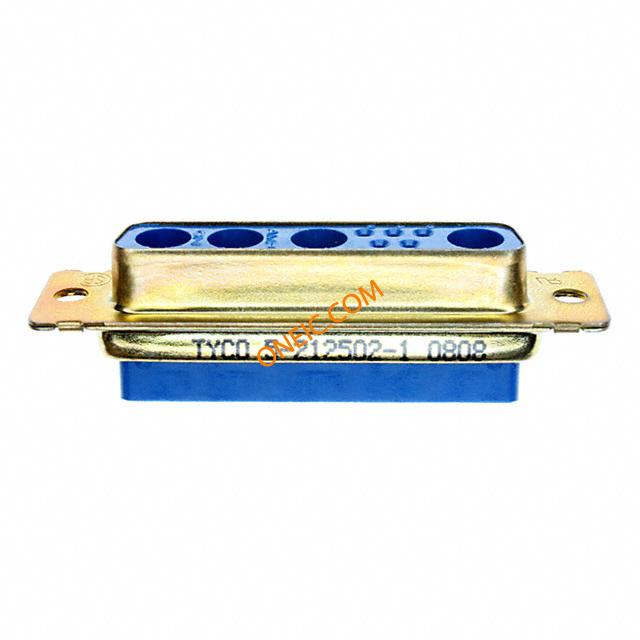

点击放大查看
5-212502-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 4Coaxial/5Signal POS Crimp ST Panel Mount D-Sub Mixed Contact Connectors 9C4 RECPT, CRIMP Subminiature D Pin/Socket Connectors for MIL-C-24308 and MIL-C-39029 CONN D-SUB RCPT HSING 9C4 MIX Conn Housing RCP 4Coaxial/5Signal POS Crimp ST Panel Mount Product Highlights:ConnectorProduct Series = 109Housing Gender = ReceptacleHousing Accepts Contact Type = SocketDensity = StandardSearch Keywords:AMPLIMITE, rack and panel, MIL-M24519, DIN 41652, input/output, box to box, military/aerospace, d-sub, d sub, dsub RECEPT ASSY,9C4,AMPLIMITE |
| 分类 |
商业参数
| 产品类别 | D-Sub Mixed Contact Connectors | 标准包装数量 | Bulk |
合规参数
| RoHS | RoHS Compliant | 资质认证 | No |
| 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 认证机构标志 | No | ||
电气参数
| 额定电压 | 500 V | 连接器阻抗 | Yes |
| 最大额定电流 | 1 A | 连接器类型 - 电压输入 | No |
机械参数
| 颜色 | Blue | 深度 | 16.68 mm |
| 间距 | 5 mm | 高度 | 12.54 mm |
| 外形尺寸(长x宽) | 3 | 材料（通用） | Stainless Steel |
| 包装方式 | Bulk | 外壳尺寸 | 3 |
| 导线线规 | 8-18 | 触点尺寸 | 20 |
| 触头类型 | Coax or Power and Signal | 非磁性 | No |
| 外壳表面处理 | 锌 | 外壳颜色 | Blue |
| 安装类型 | Straight | 外壳镀层 | Zinc |
| 端子尺寸 | 20, 8 | 连接器类型 | Receptacle for Female Contacts |
| 接触镀层 | Tin | 法兰特征 | Housing/Shell (Unthreaded) |
| 安装样式 | Wire | 排数 | 2 |
| 外壳材料（壳体） | Steel | 连接器样式 | D-Sub, Combo |
| 插入角度 | 9C4 | 壳体材料 | Polyester |
| 总长度 | 53.03 mm | 连接器 - 电缆 | 是 |
| 端接样式 | Crimp | 触点数 | 4Coaxial/5Signal |
| 介电材料 | Polyester, Glass Filled | 位数 | 9 (5 + 4 Coax or Power) |
| 衬套/护套类型 | No | 安装孔直径 | 3.05 [.120] |
| 外壳镀层厚度 | 200µin (5.08µm) | 外壳材料及表面处理 | Steel, Yellow Chromate Plated Zinc |
| 外壳尺寸，连接器布局 | 3 (DB, B) - 9W4 | ||
产品信息
| 备注 | Cable clamp/strain relief hardware cannot be used with these arrangements. | 类型 | Housing |
| 连接器性别 | RCP | 系列 | 109 |
| 密度 | Standard | 排列方式 | 9C4 |
| 插座类型 | Without | 制造商全称 | AMP |
| 产品子类型 | Connector | 连接类型 | Coaxial Cable, Printed Circuit Board, Wire |
环境参数
| 工作温度 | -55C to 125C | ||
