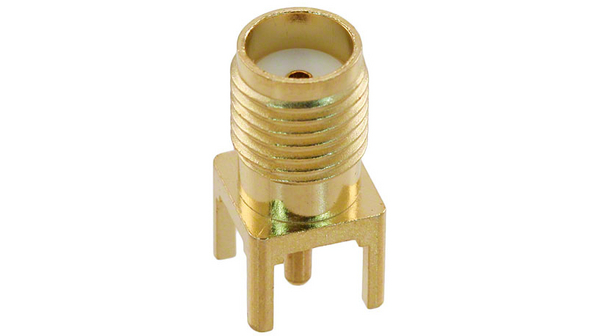

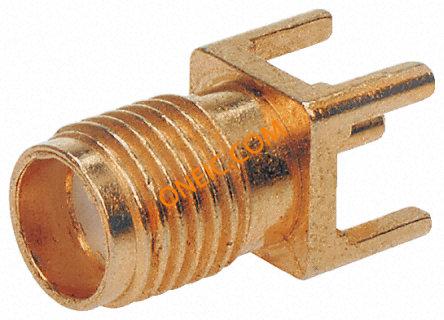

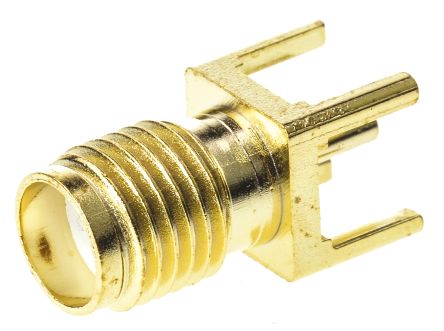

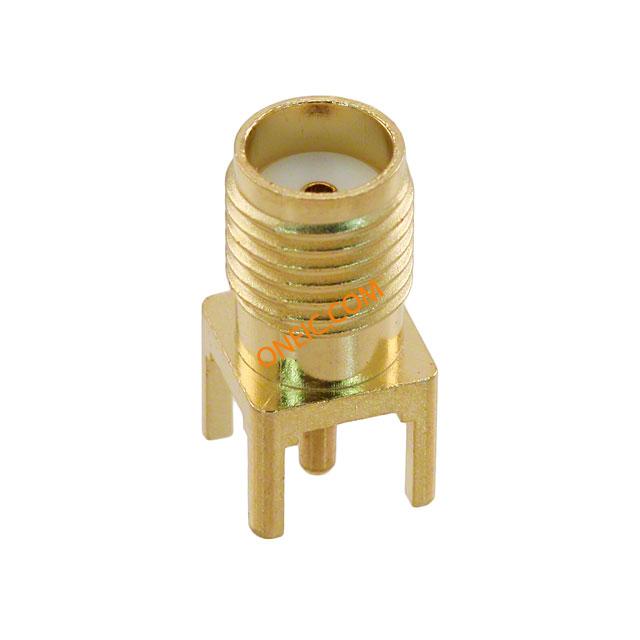

5-1814832-1
| 制造商 | |
| 描述 | Conn SMA RCP 0Hz to 3GHz 50Ohm Solder ST Thru-Hole Gold SMA/QMA RF Connectors CONN SMA JACK STR 50 OHM PCB SMA str PCB socket. RF Connectors / Coaxial Connectors Str PCB Skt Conn SMA RCP 0Hz to 3GHz 50Ohm Solder ST Thru-Hole Gold Product Highlights:ConnectorJackConnector Type = SMAWithout Snap-LockTerminate To Printed Circuit BoardSearch Keywords:RF, subminiature, military/aerospace, MIL-C-39012 SOCKET, SMA, STRAIGHT PCB,50OHM SMASTRPCBSKTGZD Socket; SMA; female; straight; 50Ω; THT; on PCBs; teflon SMA/QMA socket 50 Ohm, 5-1814832-1, TE Connectivity TE Connectivity 标准 50Ω 通孔安装 SMA 连接器, 插座, 焊接端接, 用于同轴电缆电缆 SMA Str PCB Skt GZD |
| 分类 |
商业参数
| 产品 | PCB Receptacles | 产品类别 | RF Connectors / Coaxial Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 50 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85369010 | 抗辐射加固 | No |
| 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 认证机构标志 | No | ||
电气参数
| 频率 | 0 to 3 GHz | 阻抗 | 50 Ohm |
| 最大频率 | 3GHz | 接触电阻 | :3mohm |
| 击穿电压 | :500V | 绝缘电阻 | :5000Mohm |
| 阻抗 - 不平衡/平衡 | :50 | ||
机械参数
| 尺寸 | Standard | 深度 | 6.4 mm |
| 高度 | 9.5 mm | 长度 | 13.50 [0.532] |
| 重量 | 0.002 | 包装方式 | Bulk |
| 电缆类型 | :- | 本体表面处理 | Gold |
| 方向 | Vertical | 端接方式 | Solder |
| 基体材料 | Zinc Alloy | 安装类型 | Through Hole |
| 行程角度 | Straight | 连接器类型 | SMA |
| 接触镀层 | Gold | 紧固类型 | Threaded |
| 外壳涂层 | Gold | 安装样式 | Through Hole |
| 壳体镀层 | Gold | 连接器样式 | SMA |
| 锁定特性 | Without | 触头材料 | Phosphor Bronze |
| 总长度 | 6.4 mm | 包装数量 | 1 |
| 面板安装类型 | Without | 主要材料 | SMA |
| 连接器 - 电缆 | socket | 端接样式 | Solder |
| 屏蔽层端接方式 | Solder | 接触件端接 | Solder |
| 介电材料 | PTFE | 绝缘材料 - 类型 | Polytetrafluoroethylene |
| 绝缘材料 - 材质 | :Zinc Alloy | 中心触点镀层工艺 | Gold |
| 中心触点材料 | With | 供应商器件封装 | Straight |
| 触点材料 - 镀层 | gold plated | 第一连接器安装类型 | :PCB |
产品信息
| SPG | 1 | 类型 | SMA |
| 等级 | Commercial | 连接器性别 | RCP |
| 系列 | :- | 已删除 | Compliant |
| 极性 | Normal | 制造商全称 | Tyco Electronics |
| 产品子类型 | Connector | 连接类型 | PCB |
| 单元数量 | 1 | 射频系列/标准 | 1814832 |
环境参数
| 插拔次数 | :50 | 工作温度 | - 55 C to + 85 C |
