点击放大查看

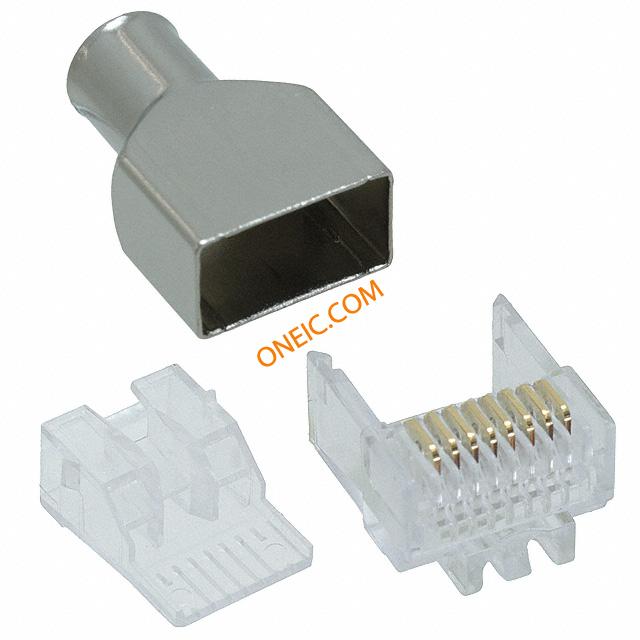

5-1375202-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Modular Plug PL 8 POS 1.02mm Crimp ST Cable Mount 8 Terminal 1 Port Box Cat 6 Modular Plugs and Accessories CONN MOD PLUG 8P8C SHIELDED Modular Connectors / Ethernet Connectors RJ45 CAT6 PLUG KIT Conn Modular Plug PL 8 POS 1.02mm Crimp ST Cable Mount 8 Terminal 1 Port Box Cat 6 Product Highlights:PlugNumber of Positions = 8Shielded8 Contacts LoadedCable Style = Round StrandedSearch Keywords:FCC Part 68, EIA/TIA 568A, mass termination, NIC, Network Interface Cards, PC Cards, input/output, box to box, KIT,8P,MODPLUG,STRANDED,CAT6 Shielded RJ45 8 Position Kit TE Connectivity 直 公 RJ45 模块化插头 , Cat6, 屏蔽, 电缆安装型 |
| 分类 |
商业参数
| 产品 | Modular Plugs | 其他名称 | 513752023 |
| 产品类别 | Modular Connectors / Ethernet Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 材料阻燃等级 | UL 94 V-2 |
电气参数
| 额定电压 | 150 V | 绝缘电阻 | 500 MOhms |
机械参数
| 颜色 | Translucent - Clear | 深度 | 7.29mm |
| 间距 | 1.02 mm | 宽度 | 13.34mm |
| 长度 | 11.68mm | 包装方式 | Bulk |
| 屏蔽 | Shielded | 电缆类型 | Round Cable, Stranded Wires |
| 导线线规 | 24-26 AWG | 屏蔽类型 | 屏蔽 |
| 端接方式 | Crimp | 安装类型 | Cable Mount |
| 连接器类型 | RJ45 模块化插头, 公插 | 接触镀层 | Gold |
| 安装样式 | Cable | 屏蔽材料 | Brass |
| 触头材料 | Phosphor Bronze | 壳体材料 | Polycarbonate (PC) |
| 触点数 | 8 | 接触镀层厚度 | 50µin (1.27µm) |
产品信息
| 类型 | Modular Plug | 连接器性别 | PL |
| 产品特性 | Molded Boot | 方向 | 直 |
| USOC 编码 | RJ45 | 线路数量 | 8P8C |
| 端口数 | 1 | 网络技术 | Cat6 |
| 性能类别 | Cat 6 | 位置/触点数量 | 8p8c (RJ45, Ethernet) |
环境参数
| 额定等级 | Cat6 | 工作温度 | - 40 C to + 70 C |
